Husqvarna 580BFS (2011-05) Blower

Model: 580BFS (2011-05)

Back To Assemblies

Save Part Not Listed?
product name

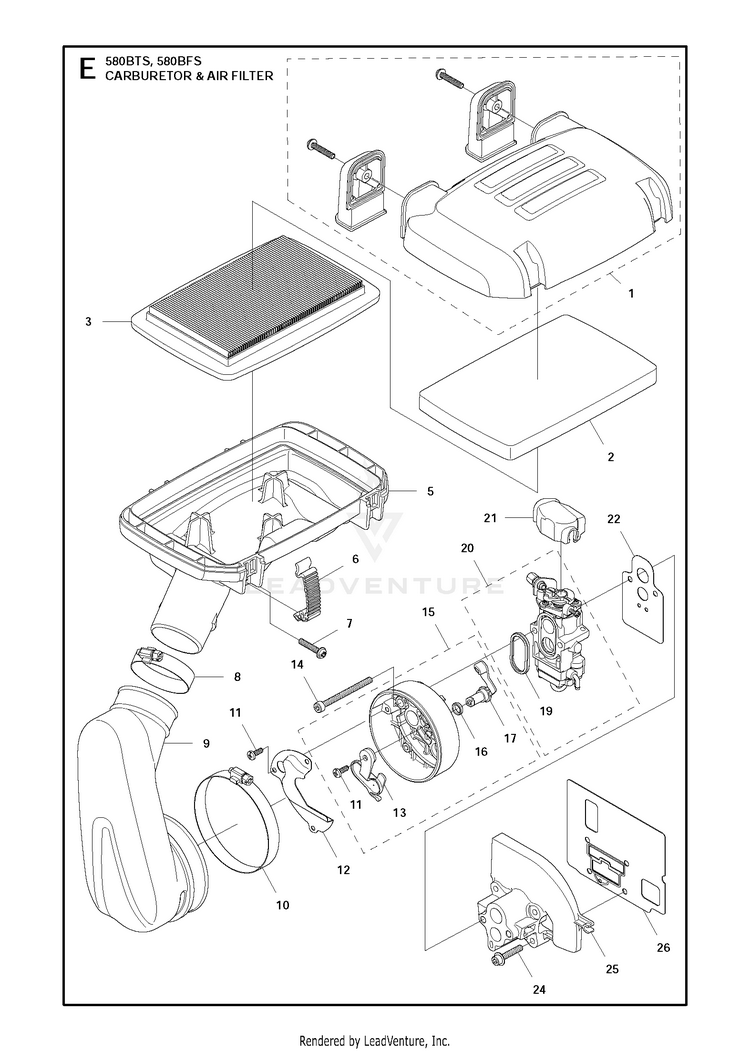

CARBURETOR AIR FILTER

...
...
1
AIR FILTER COVER ASSY HUS-576584901
...
2
ELEMENT T401282321 HUS-544271601
...
3
ELEMENT T401282311 HUS-544271501
...
5
HOLDER AIR FILTER HUS-578311401
...
6
BUCKLE ORANGE HUS-503894701
...
7
SCREW HUS-512848101
...
8
CLAMP(F64) HUS-544271901
...
9
HOSE HUS-584642402
...
10
CLAMP(F96) HUS-544274001
...
11
SCREW . 15 HUS-506673801
...
12
PLATE HUS-582900001
...
13
PLATE CHOKE . 15 HUS-576594701
...
14
BOLT HUS-515390701
...
15
CUP ASSY HUS-576594501
...
16
O-RING . 15 HUS-516136001
...
17
LEVER . 15 HUS-576594801
...
19
RING . 20 HUS-521631501
...
20
CARBURETOR ASSY HUS-581177001
...
21
COVER HUS-506744201
...
22
GASKET HUS-577089601
...
24
BOLT HUS-576589801
...
25
INSULATOR HUS-578108401
...
26
GASKET HUS-577694801
