Husqvarna 580BFS (2011-05) Blower

Model: 580BFS (2011-05)

Back To Assemblies

Save Part Not Listed?
product name

CYLINDER PISTON

...
...
1
SCREW HUS-544256801
...
2
PLATE HUS-576589501
...
3
GROMMET HUS-576589601
...
4
BOLT HUS-506745201
...
5
CYLINDER ASSY HUS-578385001
...
6
PISTON . 5 HUS-576596401
...
7
WASHER . 5 6 HUS-521520501
...
8
BEARING . 5 6 HUS-576696401
...
9
PISTON . 5 6 HUS-576596501
...
10
PISTON PIN . 5 6 HUS-576596801
...
11
SNAP RING . 5 6 HUS-521531901
...
12
PISTON RING . 5 6 HUS-576596701
...
13
GASKET HUS-576589401

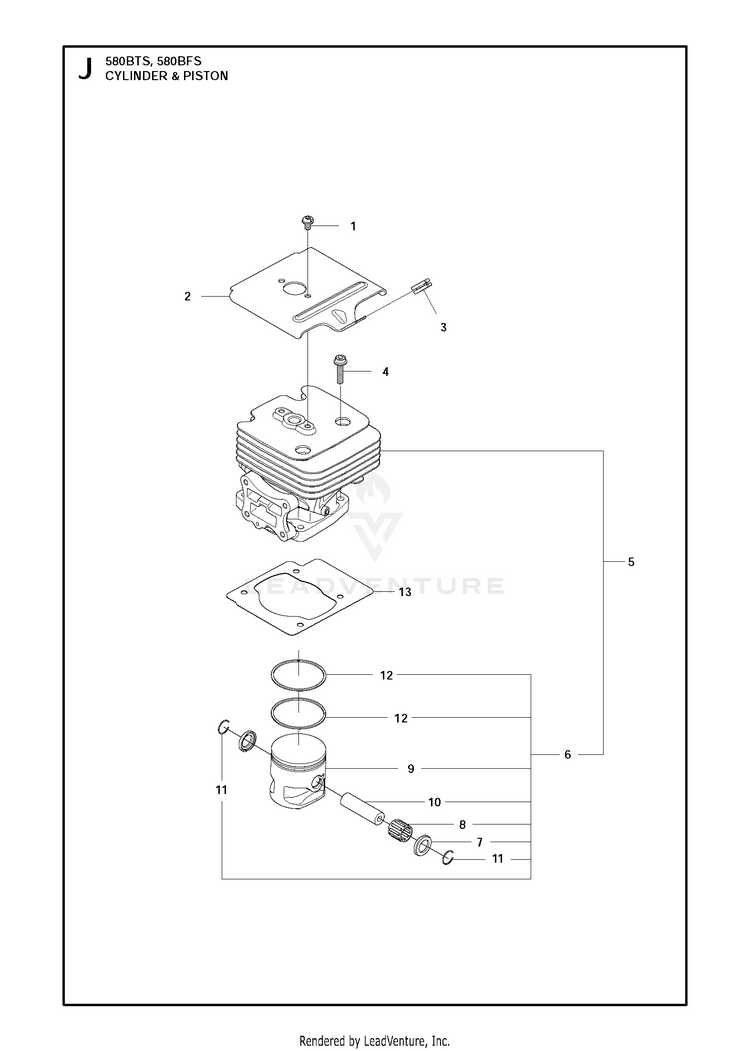

Schematic Image Zoomed
