Husqvarna 580 BBC (2001-06) Walk Mower

Model: 580 BBC (2001-06)

Back To Assemblies

Save Part Not Listed?
product name

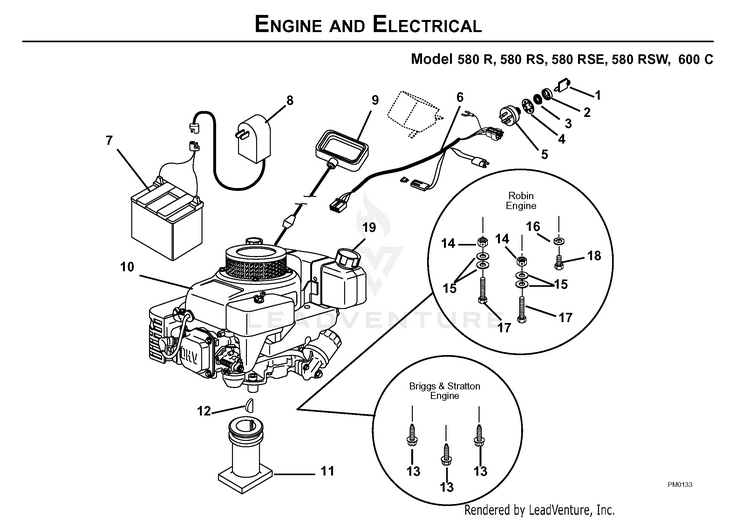

ENGINE

...
...
606 00 02 29
BLADE ADAPTER HUS-606000229
...
18
BOLT-HEX .31-18 X .75 GRADE 5 HUS-606000036
...
2
CAP-IGNITION SWITCH HUS-606000247
...
4
Washer-Locking Internal .625 x .045 (580 RSE) HUS-606000239
...
3
NUT PANEL .625-32 HUS-606000242
...
9
RECOIL START HANDLE HUS-606000232
...
16
Washer-Locking .312 x .097 Heavy (600 C) HUS-606000199
...
6
Harness, Wire LM-Electric (580 RSE) HUS-606000319
...
12
KEY WOODRUFF .156 X .625 X .25 HUS-606000244
...
13
Screw-Tapping .38-16 x 1.00 Hex Washer Head HUS-606000245
...
14
NUT LOCKING CENTER .31-18 HUS-606000243
...
5
SWITCH, 2 POSITION HUS-606000320
...
19
Fuel Cap HUS-606000329
...
7
BATTERY REPL. KIT HUS-606000234
...
606 00 02 44
KEY WOODRUFF .156 X .625 X .25 HUS-606000244
...
8
BATTERY CHARGER HUS-606000284
...
15
Washer-Flat-Steel .312 x .734 x .065 (600 C) HUS-606000241
...
11
BLADE ADAPTER KIT HUS-606000285
...
17
Bolt-Hex .31-18 x 1.25 Grade 5 (600 C) HUS-606000238
...
1
KEY W/CAP HUS-606000236
