Husqvarna 580 BBC (2000-11) Walk Mower

Model: 580 BBC (2000-11)

Back To Assemblies

Save Part Not Listed?
product name

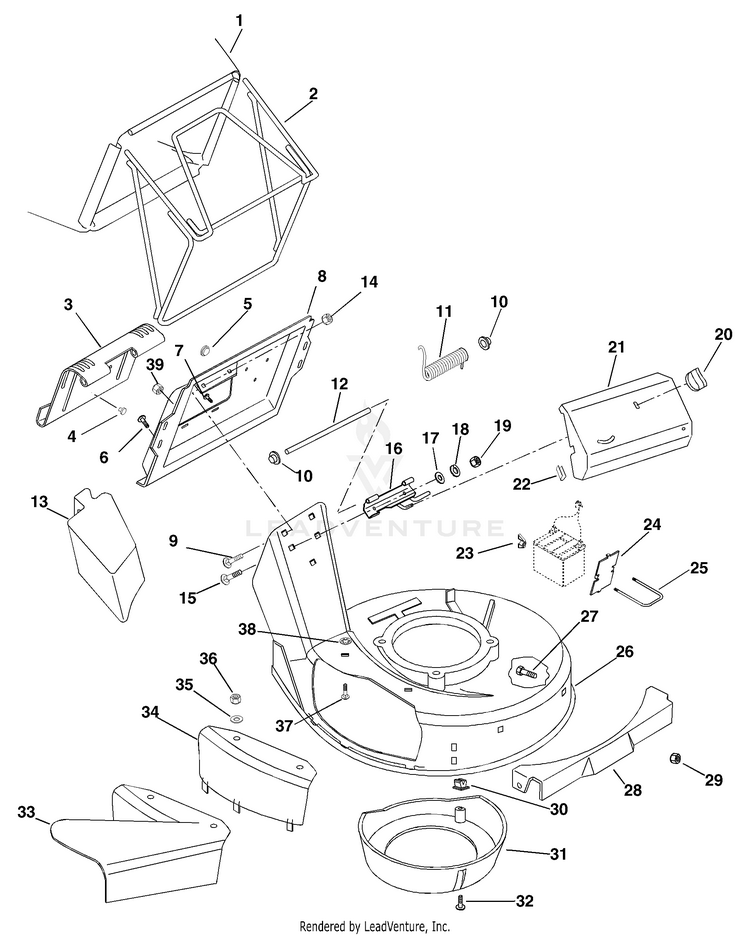

Mower Pan And Bag

...
...
1
BAG-BLACK 21"DECK REAR 580/600 HUS-531308410
...
2
BAGGER FRAME HUS-606000063
...
3
Door-Catcher Plate HUS-606000062
...
4
BUTTON BUMPER HUS-606000097
...
5
BUMPER HUS-606000096
...
6
SCRW TPNG 12-24X.50 HX WSHR HD (Models 580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC) HUS-606000092
...
7
Screw-Tapping 10-24 x .38 Pan Head HUS-606000093
...
8
CATCHER PLATE HUS-606000070
...
9
Bolt-Round Head Square Neck .25-20 x .38 HUS-606000079
...
10
PUSH NUT HUS-606000078
...
11
Spring-Torsion .120 x .68 x 3.09 HUS-606000098
...
12
Pin-Door HUS-606000064
...
13
MULCH MASTER MULCHER ACCESSORY HUS-606000100
...
14
Nut-Locking-Flange .25-20 HUS-606000088
...
15
BOLT-RND HD SQ NCK .25-20X.75 HUS-606000081
...
16
HINGE BASE WELDMENT (Models 580 RS, 580 RSW, 580 BBC,600 C) HUS-606000067
...
16
Hinge Base (Model 580 R) HUS-606000316
...
17
WASHER FLAT STL .312X.734X.065 HUS-606000085
...
18
WASHER-LOCKING .25X.077 HUS-606000083
...
19
NUT-HEX .25-20 HUS-606000090
...
20
NUT-WING HUS-606000069
...
21
DRIVE COVER HUS-606000068
...
22
Trim Bumper HUS-606000066
...
23
Nut-Wing #8-32 HUS-606000091
...
24
Battery Plate (Model 580 RSE) HUS-606000073
...
25
U-Bolt (Model 580 RSE) HUS-606000074
...
26
Mower Pan Head with Decals HUS-606000099
...
26
Mower Pan with Decals (Model 580 BBC) HUS-606000287
...
26
DECK SVC W/DECALS, 580R (Model 580 R) HUS-606000288
...
27
Bolt-Round Head Square Neck .31-18 x .50 Grade 5 (Models 580 RS, 580 RSE, 580 RSW) HUS-606000082
...
28
FRONT PANEL HUS-606000065
...
29
NUT LOCKING CENTER .31-18 (Models 580 RS, 580 RSE, 580 RSW) HUS-606000243
...
30
PLASTIC GROMMET HUS-606000095
...
31
CENTER BAFFLE HUS-606000072
...
32
SCRW TPNG 10-16X.62 HX WSHR HD HUS-606000094
...
33
SIDE DISCHARGE ASSEMBLY HUS-606000077
...
34
SIDE DISCHARGE COVER HUS-606000075
...
35
WASHER-FLT-STL .406X.812X.065 HUS-606000044
...
36
Nut-Locking-Nylon .312-18 HUS-606000089
...
37
Bolt-Round Head Square Neck .31-18 x .75 Grade 2 HUS-606000080
...
38
Nut-Push .312 HUS-606000086
...
39
Nut-Locking-Flange .250-20 (Model 600 C) HUS-606000088
