Models

Parts

product name

Husqvarna 580 BBC (2000-11) Walk Mower

Model: 580 BBC (2000-11)

Back To Assemblies

Save Part Not Listed?
product name

Handlebar And Controls

...
...
1
ENGINE BAIL WELDMENT (Models 580 R, 580 RS, 580 RSE, 580 RSW, 600 C) HUS-606000030
...
1
Bail- Blade Brake/Clutch (Model 580 BBC) HUS-606000289
...
2
WASHER-FLAT STL .344X.688X.065 (Models 580 R, 580 RS, 580 RSE, 580 RSW, 600 C) HUS-606000045
...
2
WASHER-FLAT STL .344X.688X.065 (Model 580 BBC) HUS-606000045
...
3
BUSHING-FLANGE (Models 580 R, 580 RS, 580 RSE, 580 RSW, 600 C) HUS-606000034
...
3
BUSHING-FLANGE (Model 580 BBC) HUS-606000034
...
4
CAP, VINYL .25 I.D. (Models 580 R, 580 RS, 580 RSE, 580 RSW, 600 C) HUS-606000060
...
4
CAP, VINYL .25 I.D. (Model 580 BBC) HUS-606000060
...
5
TRACTION BAIL WELDMENT HUS-606000029
...
6
HANDLEBAR, SELF PROPELLED HUS-606000031
...
7
ENGINE CONTROL CABLE (Models 580 R, 580 RS, 580 RSE, 580 RSW) HUS-606000056
...
7
ENGINE CONTROL CABLE (Model 600 C) HUS-606000057
...
8
Switch-Cable Anchor (Model 580 RSE) HUS-606000026
...
9
CABLE ANCHOR-RIGHT HAND HUS-606000019
...
10
BOLT RND HD SQ NCK .25-20X1.25 (Models 580 R, 580 RS, 580 RSE, 580 RSW, 600 C) HUS-606000039
...
10
BOLT RND HD SQ NCK .25-20X1.25 (Model 580 BBC) HUS-606000039
...
11
NUT-LOCKING-CENTER .25-20 (Models 580 R, 580 RS, 580 RSE, 580 RSW, 600 C) HUS-606000049
...
11
NUT-LOCKING-CENTER .25-20 (Model 580 BBC) HUS-606000049
...
12
CABLE TIE HUS-606000061
...
13
THROTTLE CABLE (Model 600 C) HUS-606000058
...
13
CONTROL, THROTTLE (Model 580 BBC) HUS-606000303
...
14
BRACE-SPEED CONTROL HUS-606000022
...
15
BRACKET-SPEED CONTROL HUS-606000018
...
16
LINK-HANDLEBAR ADJUSTER LT HND (Models 580 R, 580 RS, 580 RSE, 580 RSW) HUS-606000023
...
16
LINK-HANDLEBAR ADJUSTER RT HND (Models 580 RS, 580 RSE, 580 RSW, 580 BBC) HUS-606000024
...
16
Handlebar Bracket (Model 600 C) HUS-606000027
...
17
WASHER-BELVILLE SPRING (Models 580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC) HUS-606000032
...
18
BSHNG-FLNG .325X.500X.513X.875 (Models 580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC) HUS-606000035
...
19
NUT LOCKING CENTER .31-18 HUS-606000243
...
20
BOLT-RND HD SQ NCK .25-20X1.38 HUS-606000042
...
21
Bolt-Round Head Square Neck .25-20 x .50 Grade 5 HUS-606000040
...
22
KNOB HUS-606000059
...
23
ROD-SPEED CONTROL HUS-606000021
...
24
TRACTION CABLE HUS-606000055
...
25
BOLT-RND HD SQ NCK .31-18X.75 (Models 580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC) HUS-606000038
...
26
SHOULDER SPACER HUS-606000033
...
27
BOLT-RND HD SQ NCK .31-18X1.00 (Models 580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC) HUS-606000037
...
27
BOLT-RND HD SQ NCK .31-18X.75 (Model 600 C) HUS-606000038
...
28
Nut-Locking-Center .38-16 HUS-606000048
...
29
WASHER-FLT-STL .406X.812X.065 HUS-606000044
...
30
Washer-Lock .375 x .115 Heavy HUS-606000274
...
31
Pressure Flange HUS-606000025
...
32
Washer-Flat-Steel .281 x .620 x .065 HUS-606000046
...
33
Pin-Cotter .06 x .50 HUS-606000051
...
34
Shift Link HUS-606000017
...
35
Bell Crank-Speed Control HUS-606000016
...
36
Friction Washer HUS-606000015
...
37
CAP, 3.8 ROD Rod .375 HUS-606000014
...
38
Swivel HUS-606000020
...
39
Bolt-Round Head Square Neck .38-16 x 1.25 HUS-606000041
...
40
Pin-Hair-Internal .08 x .18 x 1.18 HUS-606000052
...
41
Support Pad HUS-606000028
...
42
Rivet .187 x .575 HUS-606000053
...
43
Washer-Flat Steel .219 x .50 x .049 HUS-606000047
...
44
BOLT-HEX .31-18 X .75 GRADE 5 (Model 600 C) HUS-606000036
...
45
Bolt-Round Head Square Neck .25-20 x 1.75 Grade 5 (Model 600 C) HUS-606000276
...
45
Bolt-Round Head Square Neck .25-20 x 1.75 XL (Model 580 BBC) HUS-606000321
...
46
Washer-Flat-Steel .250 x .562 x .049 (Model 600 C) HUS-606000275
...
46
WASHER, FLT .281X.62X.065" (Model 580 BBC) HUS-606000322
...
47
Washer-Flat-Steel .219 x .50 x .049 HUS-606000047
...
48
SCREW, TAPPING 10-24X2" (Model 580 BBC) HUS-606000323
...
49
CONTROL, 580BBC (Model 580 BBC) HUS-606000304
...
50
SCREW, MACH. 10-24X2" (Model 580 BBC) HUS-606000324
...
51
NUT, HEX 10-24 (Model 580 BBC) HUS-606000325
...
52
Cable Anchor-Left Hand (Models 580 R, 580 RS, 580 RSW, 600 C) HUS-606000272

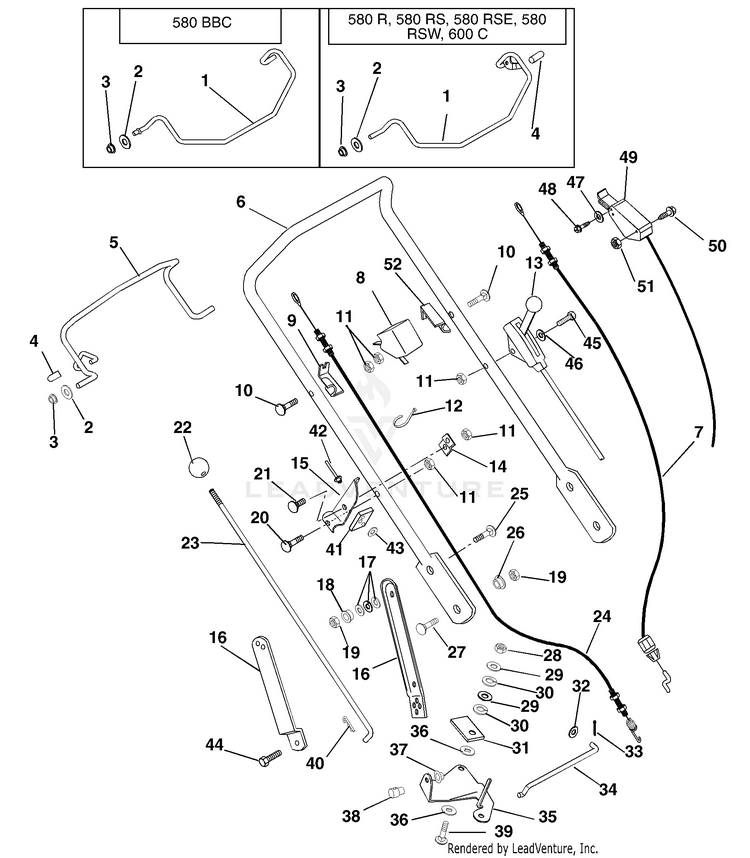

Schematic Image Zoomed
