product name

Husqvarna 576XP AUTO TUNE (2010-03) Chain Saw

Model: 576XP AUTO TUNE (2010-03)

Back To Assemblies

Save Part Not Listed?
product name

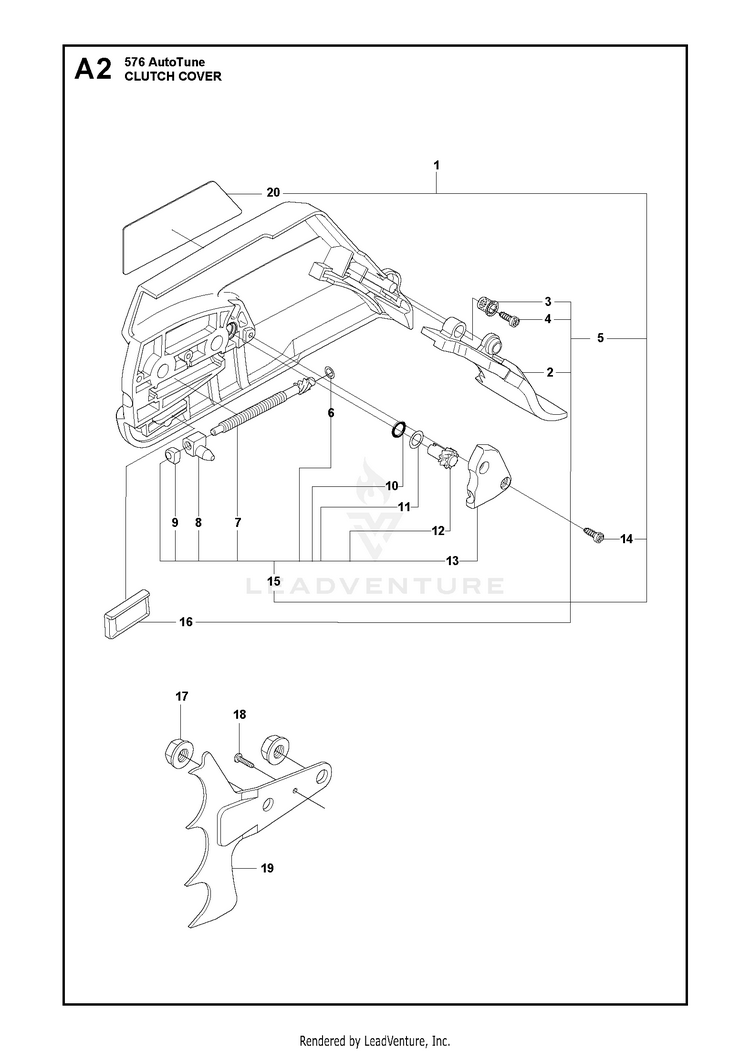

CLUTCH COVER

...
...
1
CLUTCH COVER ASSY HUS-537033504
...
2
PROTECTOR . 5 1 HUS-503762902
...
3
WASHER . 5 1 HUS-503897001
...
4
SCREW . 5 1 HUS-503212810
...
5
CLUTCH COVER ASSY H SILVER R- . 1 HUS-537033505
...
6
WASHER . 15 1 HUS-503230066
...
7
WORM SCREW / ADJUSTER . 15 1 HUS-537079502
...
8
PAWL . 15 1 HUS-503998301
...
9
SLEEVE . 15 1 HUS-537017401
...
10
O-RING . 15 1 HUS-740480702
...
11
WASHER . 15 1 HUS-503230063
...
12
WORM WHEEL . 15 1 HUS-537079402
...
13
COVER . 15 1 HUS-537016801
...
14
SCREW . 1 HUS-503212810
...
15
KIT-CHAIN TENSIONER . 1 HUS-537044102
...
16
CHAIN GUIDE . 5 1 HUS-501517201
...
17
NUT M8 FLANGE HUS-503220001
...
18
SCREW HUS-503212810
...
19
SPIKE OUTER HUS-503719701
...
20
DECAL . 1 HUS-537033803
