Husqvarna 576XP AUTO TUNE (2010-03) Chain Saw

Model: 576XP AUTO TUNE (2010-03)

Back To Assemblies

Save Part Not Listed?

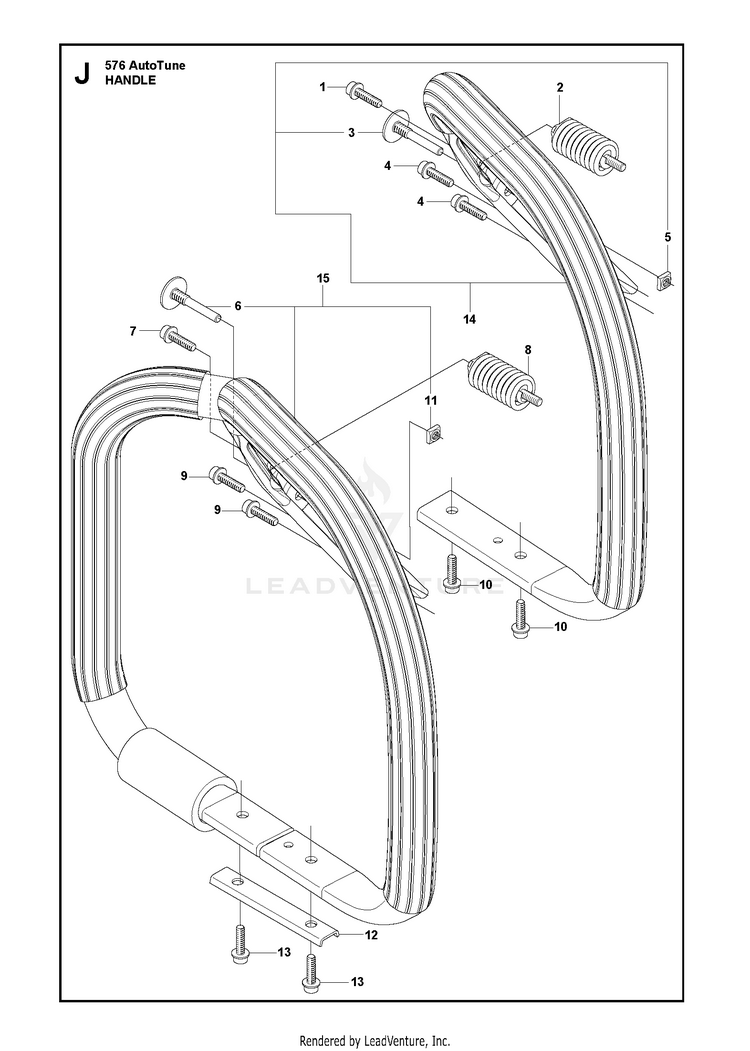

product name

HANDLE

...
...
1
SCREW HUS-503218874
...
2
ANTIVIBE MOUNT HUS-503637502
...
3
SCREW . 14 HUS-503204701
...
4
SCREW HUS-503218874
...
5
NUT . 14 HUS-503226601
...
6
SCREW . 15 HUS-503204701
...
7
SCREW HUS-503218874
...
8
ANTIVIBE MOUNT HUS-503637502
...
9
SCREW HUS-503218874
...
10
SCREW HUS-503218874
...
11
NUT . 15 HUS-503226601
...
12
PLATE HUS-537037301
...
13
SCREW HUS-503218874
...
14
FRONT HANDLE ASSY compl 29mm HUS-537205903
...
14
FRONT HANDLE ASSY compl 576XP 27mm HUS-537205903
...
15
HANDLE compl 576 WA HUS-537208901
Schematic Image Zoomed
