Husqvarna 576XP AUTO TUNE (2010-03) Chain Saw

Model: 576XP AUTO TUNE (2010-03)

Back To Assemblies

Save Part Not Listed?
product name

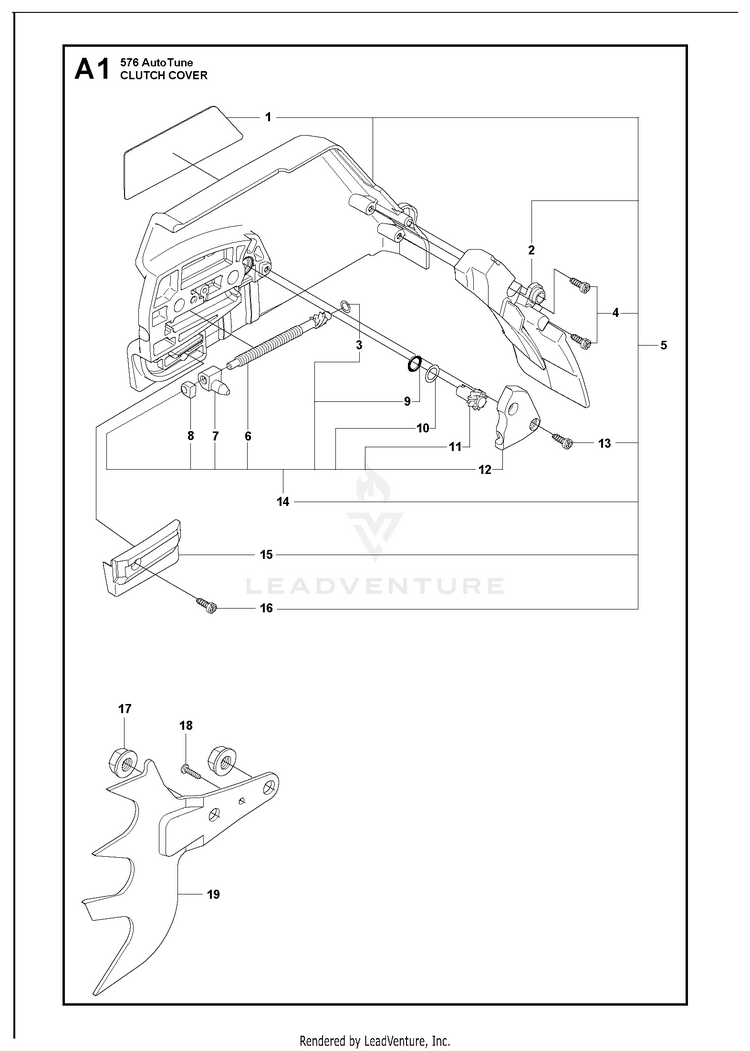

CLUTCH COVER

...
...
1
DECAL . 5 HUS-537033803
...
2
PROTECTOR . 5 HUS-537174101
...
3
WASHER . 14 HUS-503230066
...
4
SCREW . 5 HUS-503212810
...
5
CLUTCH COVER ASSY 576XPW HUS-537331005
...
6
WORM SCREW / ADJUSTER . 5 14 HUS-537079502
...
7
PAWL . 5 14 HUS-503998301
...
8
SLEEVE . 5 14 HUS-537017401
...
9
O-RING . 5 14 HUS-740480702
...
10
WASHER . 5 14 HUS-503230063
...
11
WORM WHEEL . 5 14 HUS-537079402
...
12
COVER . 5 14 HUS-537016801
...
13
SCREW . 5 HUS-503212810
...
14
KIT-CHAIN TENSIONER . 5 HUS-537044102
...
15
CHAIN GUIDE . 5 HUS-537043401
...
16
SCREW . 5 HUS-503212810
...
17
NUT M8 FLANGE HUS-503220001
...
18
SCREW HUS-503212810
...
19
FELLING DOG HUS-503922701
