Husqvarna 576XP AUTO TUNE (2010-03) Chain Saw

Model: 576XP AUTO TUNE (2010-03)

Back To Assemblies

Save Part Not Listed?
product name

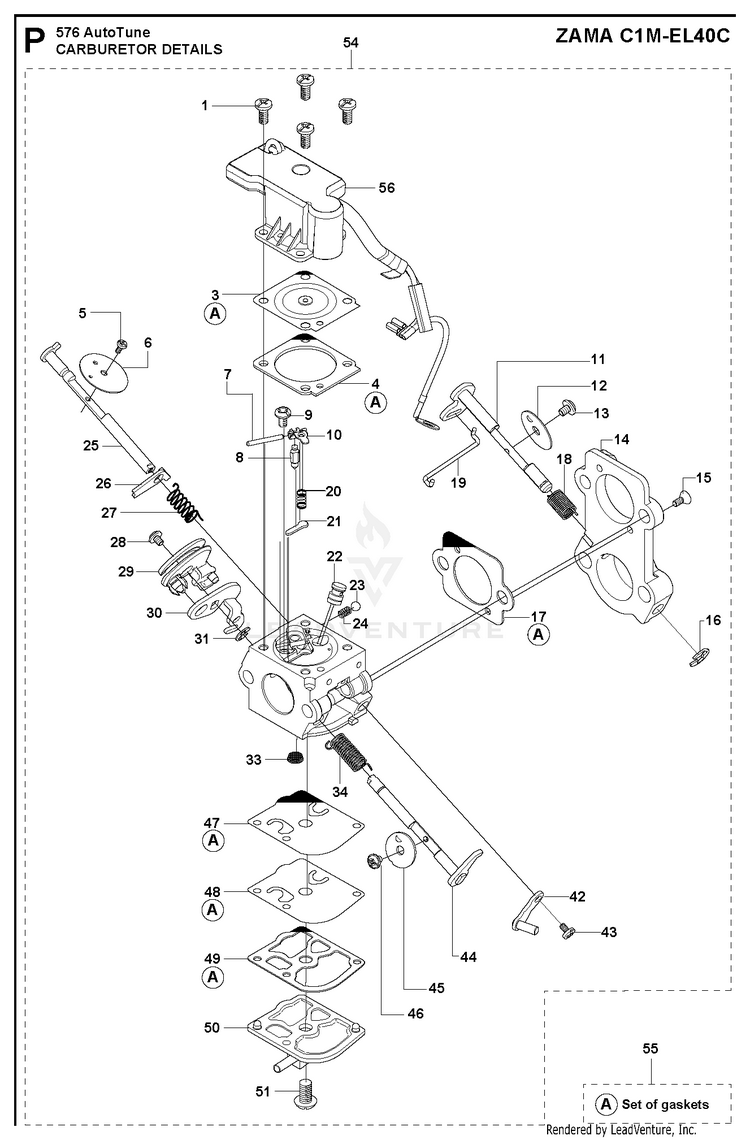

CARBURETOR DETAILS

...
...
1
SCREW . 54 HUS-506396601
...
3
DIAPHRAGM . 54 55 HUS-504113801
...
4
GASKET METERING . 54 55 HUS-504627901
...
5
SCREW . 54 HUS-503481801
...
6
CHOKE VALVE . 54 HUS-504627701
...
7
PIN . 54 HUS-537020801
...
8
INLET NEEDLE . 54 HUS-503479701
...
9
SCREW . 54 HUS-503480101
...
10
LEVER . 54 HUS-503665901
...
11
SHAFT . 54 HUS-544237801
...
12
THROTTLE FLAP . 54 HUS-537177001
...
13
SCREW . 54 HUS-503481801
...
14
CARBURETOR . 54 HUS-580735801
...
15
SCREW . 54 HUS-537385101
...
16
CLIP . 54 HUS-537385001
...
17
GASKET . 54 55 HUS-537385301
...
18
SPRING . 54 HUS-537385501
...
19
ROD . 54 HUS-544237901
...
20
SPRING . 54 HUS-537383401
...
21
PLUG . 54 HUS-503535601
...
22
JET . 54 HUS-544237701
...
23
BALL . 54 HUS-537012501
...
24
SPRING . 54 HUS-537012601
...
25
CHOKE SHAFT . 54 HUS-537384201
...
26
LEVER . 54 HUS-544238001
...
27
SPRING . 54 HUS-537384401
...
28
SCREW . 54 HUS-503479001
...
29
THROTTLE LEVER ASSY . 54 HUS-544387601
...
30
LEVER . 54 HUS-537384101
...
31
CLIP . 54 HUS-537385201
...
33
STRAINER . 54 HUS-503535701
...
34
SPRING . 54 HUS-537382901
...
42
LEVER . 54 HUS-537384501
...
43
SCREW . 54 HUS-503479001
...
44
THROTTLE SHAFT . 54 HUS-537382801
...
45
FLAP . 54 HUS-537383001
...
46
SCREW . 54 HUS-503481801
...
47
PUMP DIAPHRAGM . 54 55 HUS-537383101
...
48
DIAPHRAGM . 54 55 HUS-537403301
...
49
GASKET . 54 55 HUS-537020101
...
50
COVER . 54 HUS-502078901
...
51
SCREW . 54 HUS-503479601
...
54
CARBURETTOR C1M-EL40H HUS-581279701
...
55
GASKET SET KIT . 54 HUS-504644001
...
56
VALVE HOUSING ASSY . 54 HUS-576694201
