product name

Husqvarna 576 XP Auto Tune (2009-02) Chain Saw

Model: 576 XP Auto Tune (2009-02)

Save Part Not Listed?

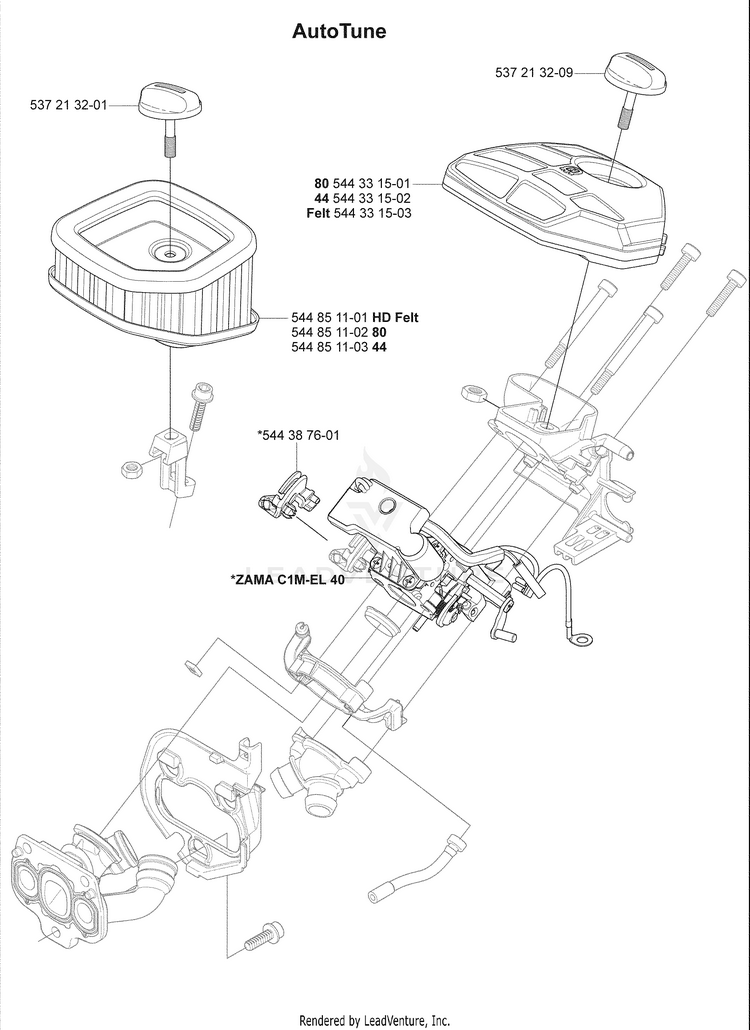

product name

Air Filter

...
...
544851101
AIR FILTER HUS-544851101
...
544851103
AIR FILTER HUS-544851103
...
544851102
AIR FILTER 575 AUTOTUNE HUS-544851102
...
544387601
THROTTLE LEVER ASSY HUS-544387601
...
544331501
AIR FILTER HUS-576486304
...
544331502
AIR FILTER HUS-576486305
...
537213201
KNOB HUS-537213201
...
544331503
AIR FILTER HUS-576486306
...
537213209
KNOB HUS-537213209

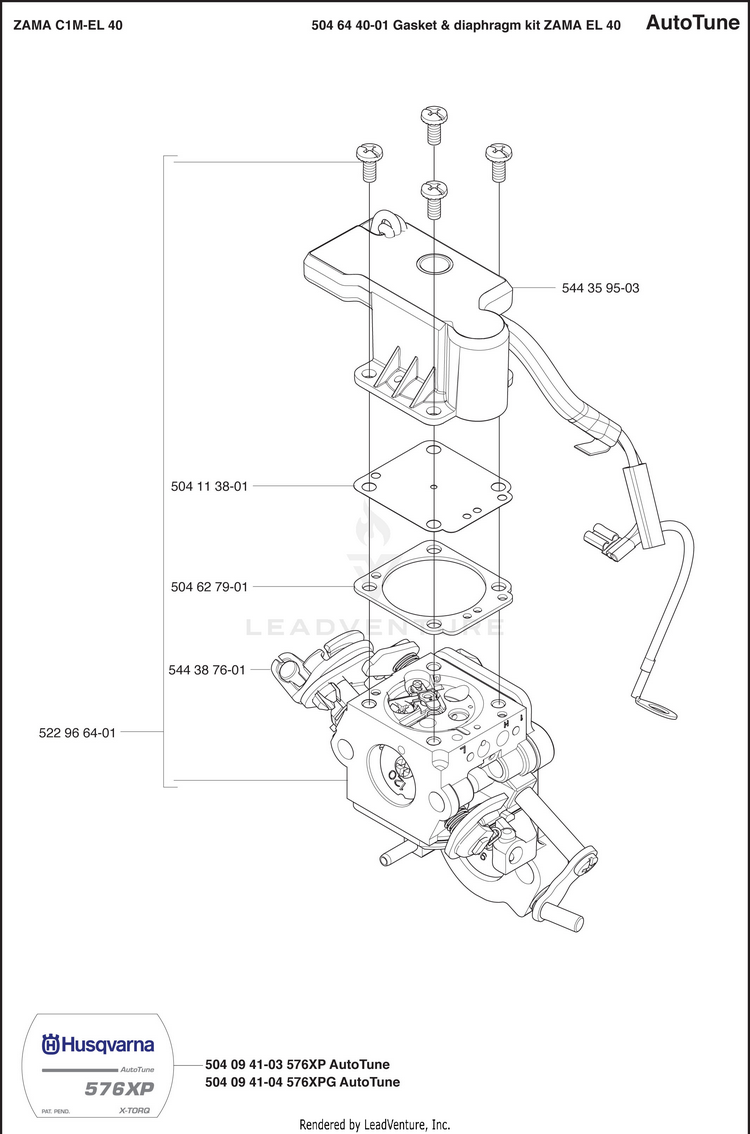

Carb. Parts

...
...
544387601
THROTTLE LEVER ASSY HUS-544387601
...
522966401
CARBURETTOR C1M-EL40H HUS-581279701
...
544359503
RP VALVE HOUSING ASSY HUS-544359503
...
504113801
DIAPHRAGM HUS-504113801
...
504627901
GASKET METERING HUS-504627901
...
504644001
GASKET SET KIT HUS-504644001

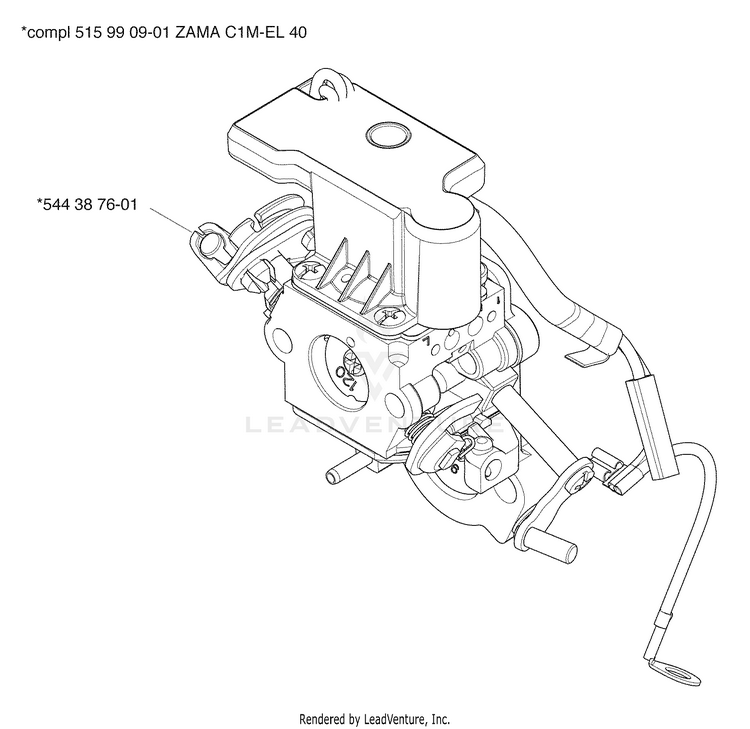

Crab.

...
...
544387601
THROTTLE LEVER ASSY HUS-544387601
...
515990901
CARBURETTOR C1M-EL40H HUS-581279701

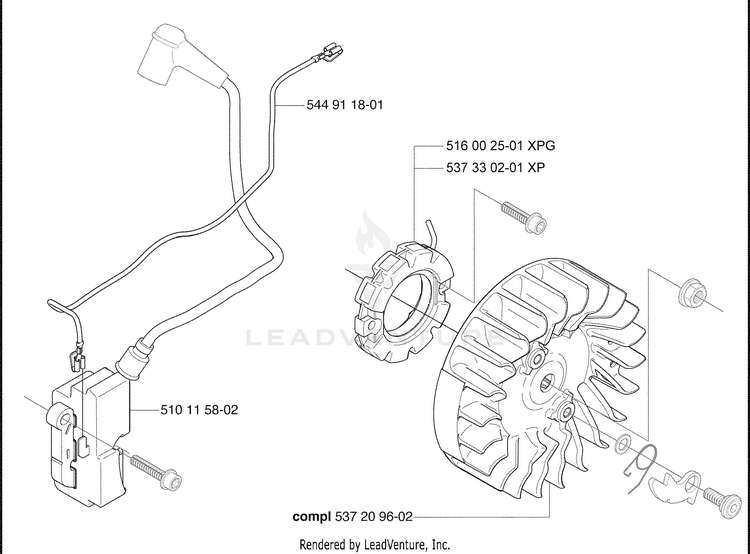

Ignition / Flywheel

...
...
544911801
SHORT CIRCUIT CABLE HUS-544911801
...
537330201
GENERATOR HUS-537330201
...
516002501
GENERATOR STATOR HUS-576189401
...
510115802
IGNITION MODULE HUS-510115802
...
537209602
FLYWHEEL HUS-537209602

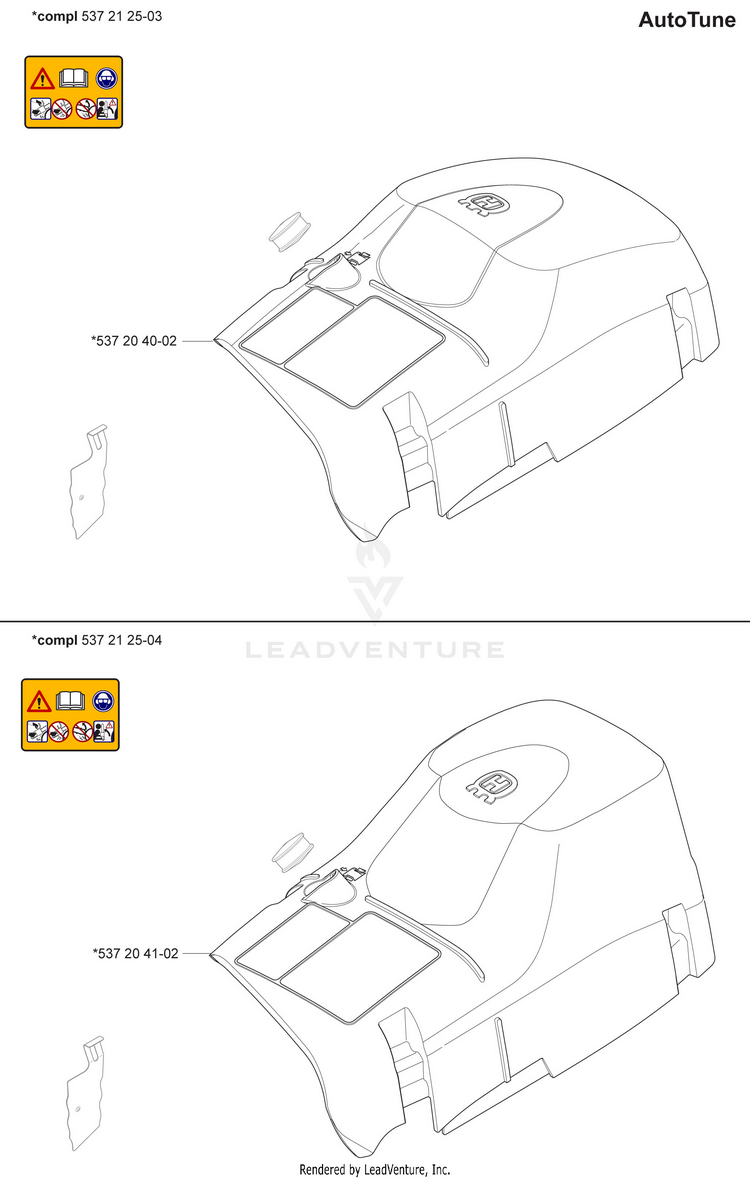

Top Cover

...
...
537204002
HUS-537204002
...
537204102
HUS-537204102
...
537212504
CYLINDER COVER HUS-537212504
...
537212503
CYLINDER COVER HUS-537212503
