Husqvarna 576 XP (20130900001-Current) Chain Saw

Model: 576 XP (20130900001-Current)

Back To Assemblies

Save Part Not Listed?
product name

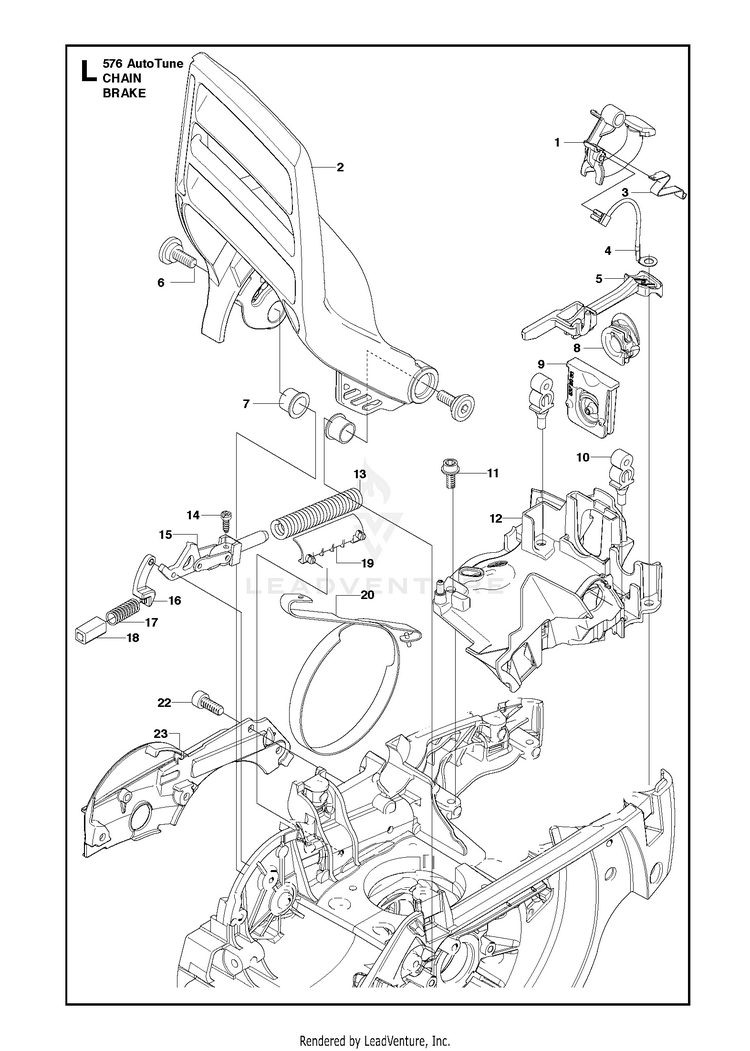

CHAIN BRAKE

...
...
6
SCREW HUS-537209001
...
14
SCREW HUS-503212810
...
20
BRAKE BAND HUS-503752202
...
22
SCREW HUS-503217072
...
7
BUSHING HUS-537202801
...
9
GROMMET HUS-537203801
...
3
SPRING HUS-503869702
...
2
CHAIN BRAKE HUS-537202701
...
4
CABLE HUS-537208701
...
15
KNEE JOINT HUS-501875304
...
13
BRAKE SPRING HUS-503709902
...
18
GUIDE HUS-537210701
...
17
LOCK SPRING HUS-503436501
...
5
CHOKE CONTROL HUS-537205201
...
1
CONTROL HUS-537205101
...
23
LOCK HUS-537203201
...
8
SEALING HUS-537205301
...
10
DAMPNER HUS-597909701
...
12
BASE HUS-537203501
...
16
LEVER HUS-537203101
...
11
SCREW HUS-503200712
...
19
SUPPORT HUS-503792702
