Husqvarna 576 XP (20130900001-Current) Chain Saw

Model: 576 XP (20130900001-Current)

Back To Assemblies

Save Part Not Listed?
product name

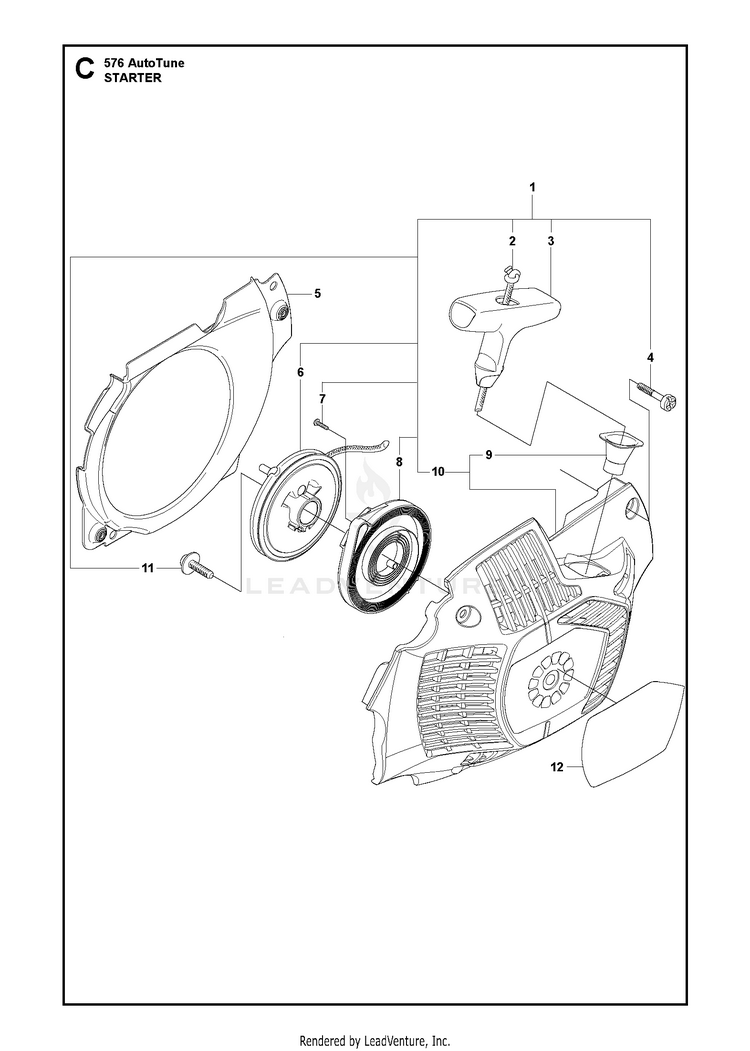

STARTER

...
...
1
STARTER ASSY HUS-504045502
...
5
PLATE HUS-537202601
...
6
STARTER PULLEY HUS-537202401
...
11
SCREW HUS-503205216
...
2
STARTER ROPE HUS-505305125
...
12
LABEL (576XPG AUTO TUNE) 576XPG AutoTune HUS-504094104
...
8
SPRING s/n from 2014900001/2010-02-10 - HUS-505065301
...
4
SCREW.CIHPANMO M5X19 10.9 HUS-544080301
...
7
SCREW HUS-503212813
...
12
LABEL 576XP AutoTune HUS-504094103
...
3
HANDLE HUS-537232501
...
10
STARTER HOUSING HUS-504045401
...
9
SLEEVE HUS-537283201
