Husqvarna 576 XP (20130900001-Current) Chain Saw

Model: 576 XP (20130900001-Current)

Back To Assemblies

Save Part Not Listed?
product name

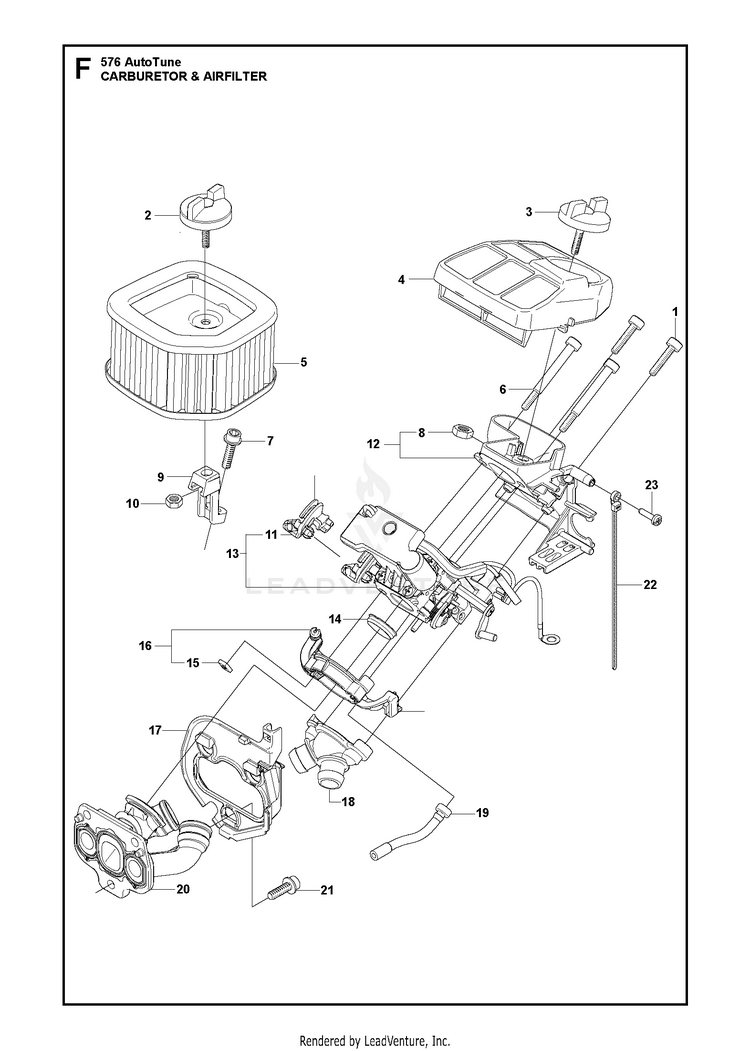

CARBURETOR & AIR FILTER

...
...
4
AIR FILTER 80 My s/n from 2012200001 - HUS-576486304
...
9
ADAPTER HUS-537210401
...
10
NUT HUS-731231401
...
2
KNOB HUS-537213201
...
6
SCREW 4X46 HUS-503203901
...
23
SCREW HUS-503217016
...
8
NUT HUS-731231401
...
7
SCREW HUS-503212616
...
15
NUT HUS-503226503
...
5
AIR FILTER Felt HUS-544851101
...
20
PIPE Cold resistant Spare part only HUS-585484301
...
13
CARBURETTOR C1M-EL40H ZAMA C1M-EL 40H HUS-581279701
...
5
AIR FILTER 44 My HUS-544851103
...
22
TIE WRAP HUS-537237801
...
18
FLANGE HUS-537204901
...
12
FILTER HOLDER HUS-537205001
...
4
AIR FILTER 44 My s/n from 2012200001 - HUS-576486305
...
11
THROTTLE LEVER ASSY HUS-544387601
...
21
SCREW HUS-503200216
...
20
PIPE HUS-537204301
...
19
HOSE HUS-537203701
...
17
PARTITION HUS-537204701
...
14
SLEEVE HUS-537204601
...
4
AIR FILTER Felt s/n from 2012200001 - HUS-576486306
...
5
AIR FILTER 575 AUTOTUNE 80 My HUS-544851102
...
1
SCREW HUS-503202520
...
3
KNOB HUS-537213209
...
16
FLANGE HUS-537204501
