Husqvarna 576 XP (20090400001-20101000000) Chain Saw

Model: 576 XP (20090400001-20101000000)

Back To Assemblies

Save Part Not Listed?
product name

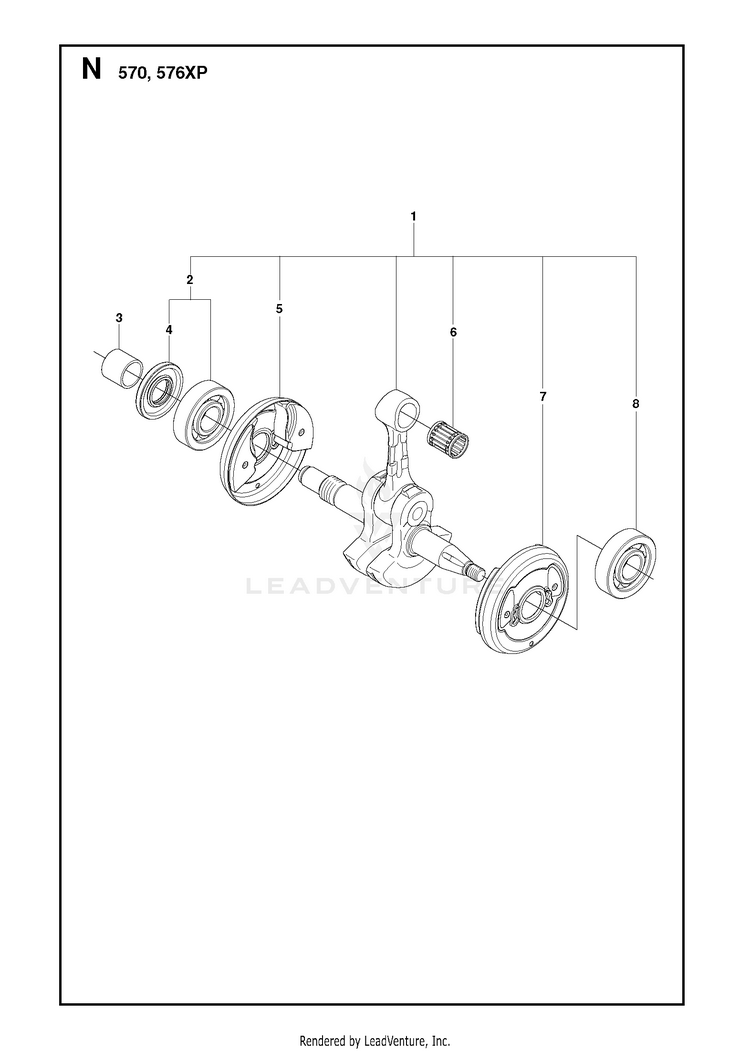

CRANKSHAFT

...
...
5
CUP HUS-537203301
...
6
NEEDLE BEARING PISTON PIN 12X1 HUS-577572401
...
8
BALL BEARING-6202-C3 SKF 570 HUS-738220225
...
7
CUP HUS-537203301
...
1
CRANKSHAFT ASSY 570 HUS-505121902
...
1
CRANKSHAFT ASSY 576XP HUS-505121902
...
2
BEARINGS - SP PTL CHSW HUS-536789801
...
3
SLEEVE HUS-537205801
...
8
BALL BEARING 576XP HUS-525434301
...
4
RADIAL SEAL HUS-597576101
