Husqvarna 576 XP (20090400001-20101000000) Chain Saw

Model: 576 XP (20090400001-20101000000)

Back To Assemblies

Save Part Not Listed?
product name

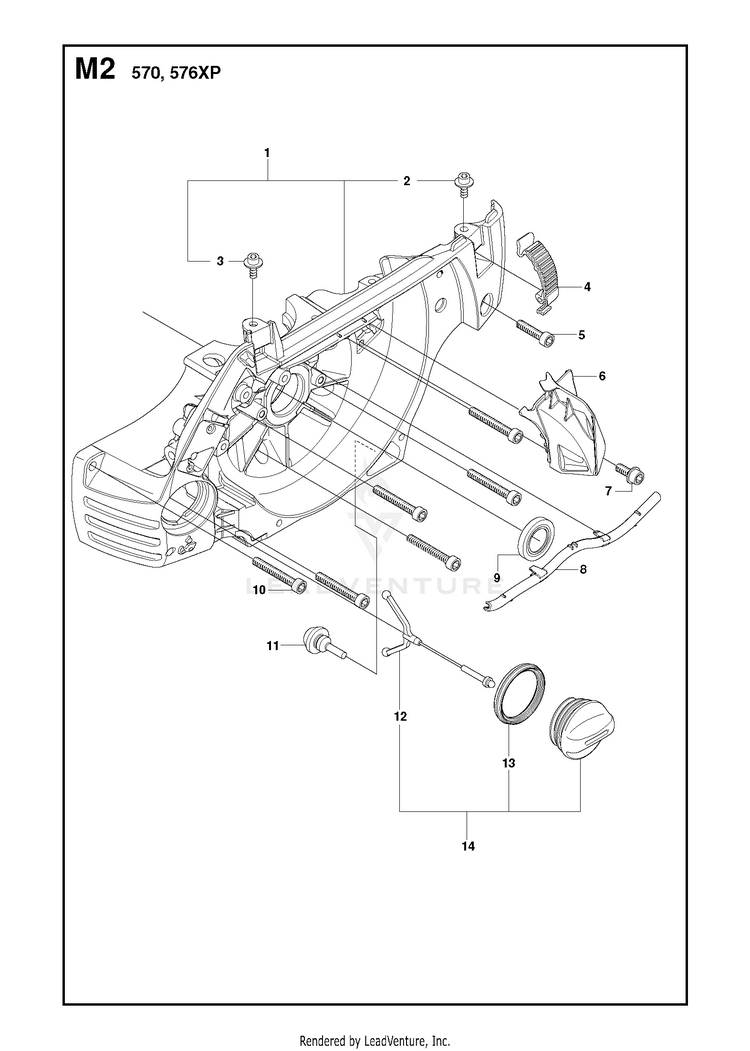

CRANKCASE 2

...
...
6
JET HUS-537209201
...
2
SCREW IHSCM HUS-505111501
...
8
HOLDER HUS-537203901
...
4
CLIP GRAY Grey HUS-503894703
...
9
RADIAL SEAL 576XP HUS-505486801
...
12
TANK LOCK HUS-503578901
...
1
CRANKCASE ASSY 576XP HUS-544896602
...
14
TANK CAP HUS-537215207
...
13
SEALING HUS-589241101
...
10
SCREW HUS-503200870
...
4
BUCKLE ORANGE Orange HUS-503894701
...
5
SCREW HUS-503207320
...
7
SCREW HUS-503200712
...
1
CRANKCASE ASSY 570 HUS-537209308
...
11
BUFFER HUS-503846101
...
9
SEAL RING 570 HUS-505275719
...
3
SCREW IHSCM HUS-505111501
