product name

Husqvarna 576 XP (20090400001-20101000000) Chain Saw

Model: 576 XP (20090400001-20101000000)

Back To Assemblies

Save Part Not Listed?
product name

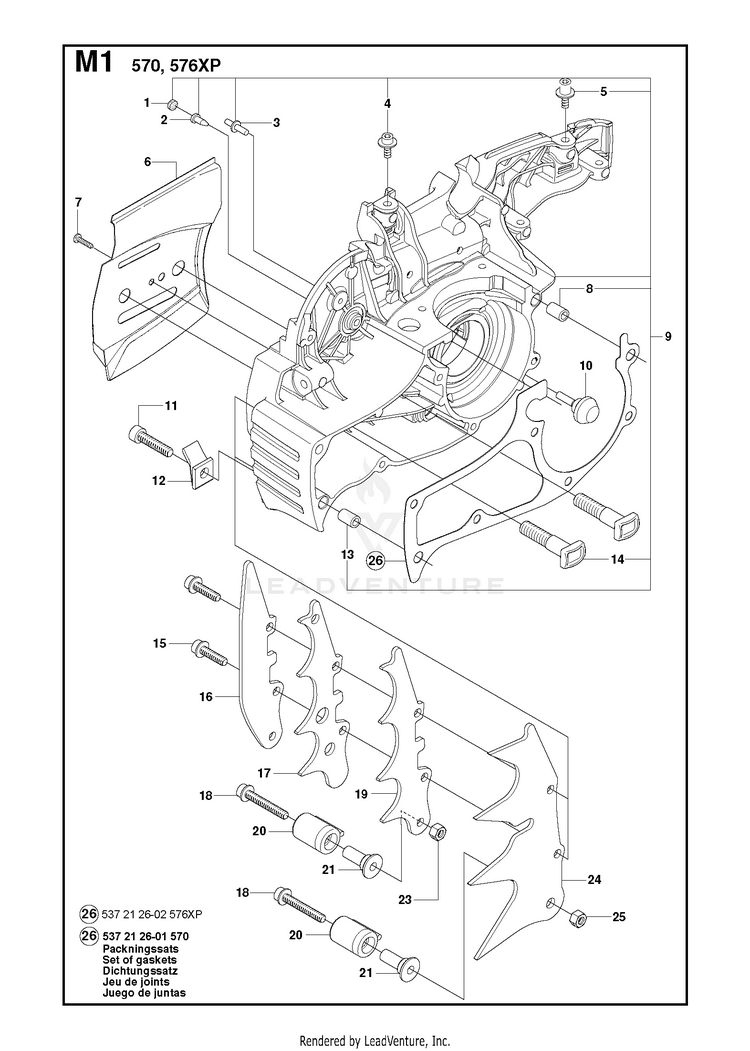

CRANKCASE

...
...
13
GUIDE BUSHING HUS-593806001
...
7
SCREW HUS-503212810
...
19
FELLING DOG HUS-537017101
...
17
FELLING DOG HUS-503647902
...
5
SCREW IHSCM HUS-505111501
...
23
NUT HUS-503222401
...
26
GASKET SET 570 HUS-537212601
...
6
BAR PLATE HUS-537013702
...
20
SPACER HUS-537024401
...
8
GUIDE BUSHING HUS-593806001
...
16
BUMPER HUS-537042901
...
15
SCREW HUS-503212616
...
4
SCREW IHSCM HUS-505111501
...
2
VALVE-CHECK (DUCKBILL) HUS-530026119
...
18
SCREW IHSCFM HUS-503200780
...
24
FELLING DOG HUS-537017201
...
10
BUFFER HUS-503846101
...
14
BOLT HUS-537051301
...
9
CRANKCASE ASSY 570 HUS-537209308
...
11
SCREW HUS-503207320
...
26
GASKET KIT 576XP HUS-537212602
...
1
SINTERED BRONZE FILTER HUS-537403502
...
18
SCREW IHSCFM HUS-503200780
...
21
CHAIN CATCHER HUS-537089201
...
9
CRANKCASE ASSY 576XP HUS-544896602
...
3
PIN HUS-537203001
...
25
NUT HUS-503222401
...
12
CHAIN CATCHER HUS-537377901
Schematic Image Zoomed
