Husqvarna 576 XP (20090400001-20101000000) Chain Saw

Model: 576 XP (20090400001-20101000000)

Back To Assemblies

Save Part Not Listed?
product name

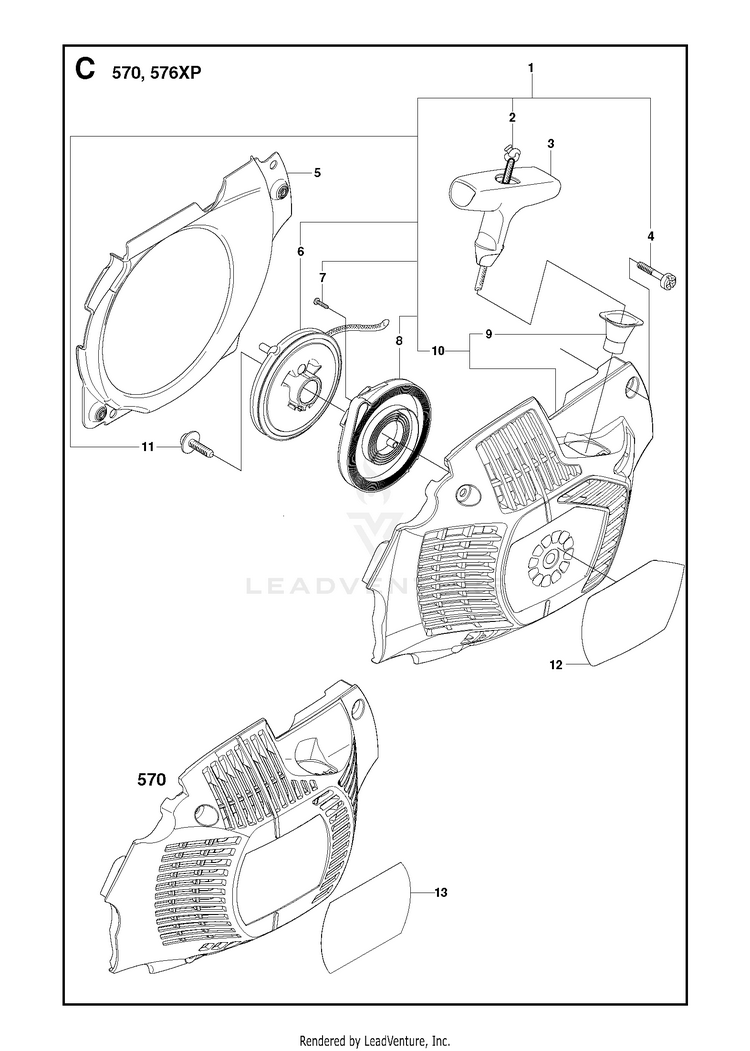

STARTER

...
...
11
SCREW HUS-503205216
...
2
STARTER ROPE HUS-505305125
...
4
SCREW.CIHPANMO M5X19 10.9 HUS-544080301
...
12
LABEL 576XP HUS-504094101
...
1
STARTER ASSY COMPLETE 570 HUS-537202902
...
13
DECAL 570 HUS-537212105
...
8
SPRING HUS-505065301
...
6
STARTER PULLEY HUS-537202401
...
9
SLEEVE HUS-537283201
...
5
PLATE HUS-537202601
...
1
STARTER ASSY 576XP HUS-504045502
...
10
STARTER COVER 570 HUS-537202301
...
7
SCREW HUS-503212813
...
10
STARTER HOUSING 576XP HUS-504045401
...
12
LABEL 576XPG HUS-504094102
...
3
HANDLE HUS-537232501
