Husqvarna 576 XP (20090400001-20101000000) Chain Saw

Model: 576 XP (20090400001-20101000000)

Back To Assemblies

Save Part Not Listed?
product name

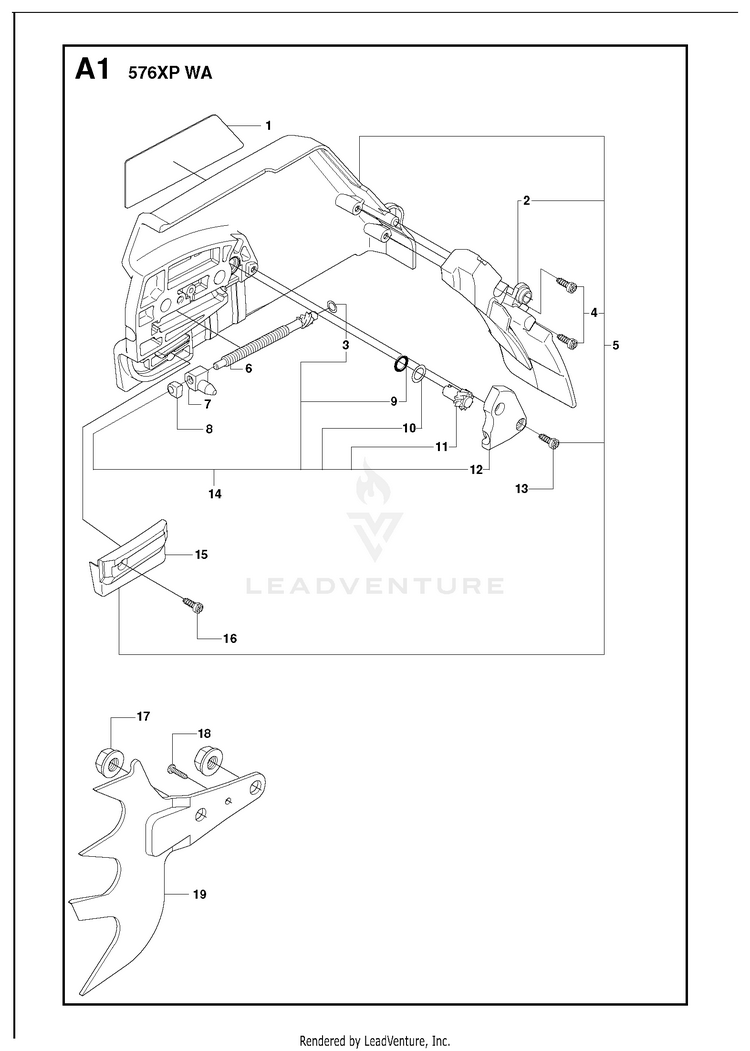

CLUTCH COVER

...
...
16
SCREW HUS-503212810
...
14
KIT-CHAIN TENSIONER HUS-537044102
...
6
WORM SCREW / ADJUSTER HUS-537079502
...
15
CHAIN GUIDE HUS-537043401
...
4
SCREW HUS-503212810
...
12
COVER HUS-537016801
...
19
FELLING DOG HUS-503922701
...
17
NUT M8 FLANGE HUS-503220001
...
11
WORM WHEEL HUS-537079402
...
2
PROTECTOR HUS-537174101
...
5
CLUTCH COVER ASSY 576XPW HUS-537331005
...
18
SCREW HUS-503212810
...
9
O-RING HUS-740480702
...
7
PAWL HUS-503998301
...
3
WASHER HUS-503230066
...
8
SLEEVE HUS-537017401
...
10
WASHER HUS-503230063
...
1
DECAL HUS-537033803
...
13
SCREW HUS-503212810
