Husqvarna 576 XP (20090400001-20101000000) Chain Saw

Model: 576 XP (20090400001-20101000000)

Back To Assemblies

Save Part Not Listed?
product name

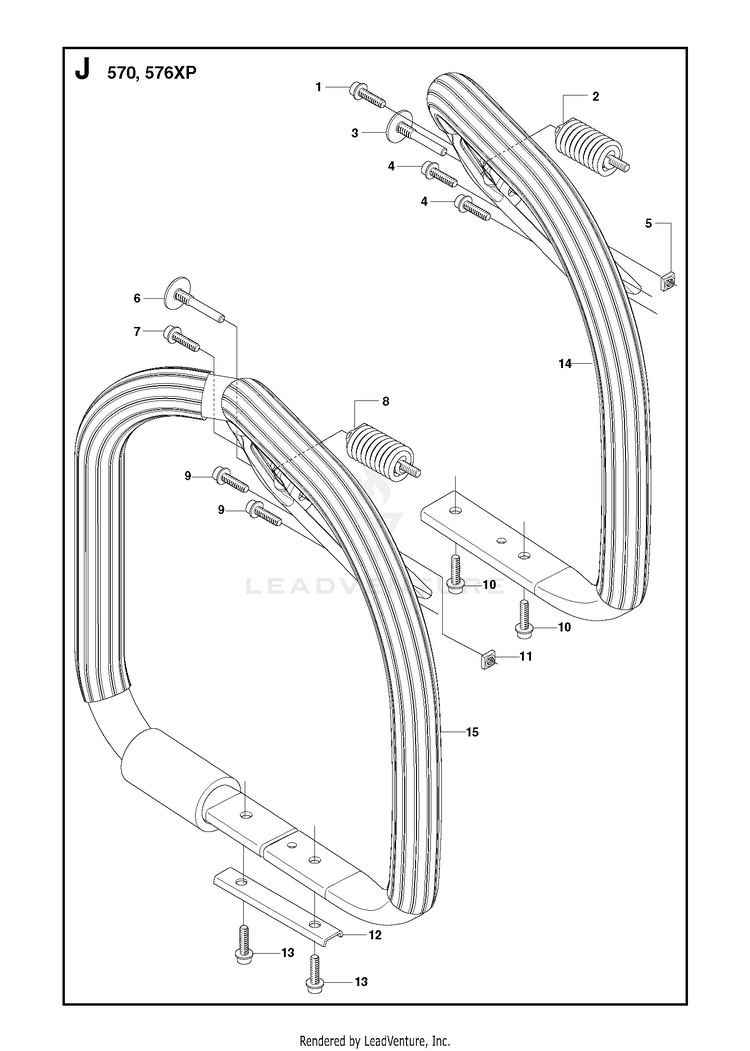

HANDLE

...
...
3
SCREW HUS-503204701
...
12
PLATE HUS-537037301
...
13
SCREW HUS-503218874
...
2
ANTIVIBE MOUNT HUS-503637502
...
9
SCREW HUS-503218874
...
10
SCREW HUS-503218874
...
1
SCREW HUS-503218874
...
14
FRONT HANDLE ASSY compl. 576XP ¯ 27mm HUS-537205903
...
14
FRONT HANDLE ASSY compl. 570 ¯ 29mm HUS-537205903
...
8
ANTIVIBE MOUNT HUS-503637502
...
5
NUT HUS-503226601
...
4
SCREW HUS-503218874
...
11
NUT HUS-503226601
...
15
HANDLE compl. 576 WA HUS-537208901
...
7
SCREW HUS-503218874
...
6
SCREW HUS-503204701
