Husqvarna 570 II Chain Saw

Model: 570 II

Back To Assemblies

Save Part Not Listed?
product name

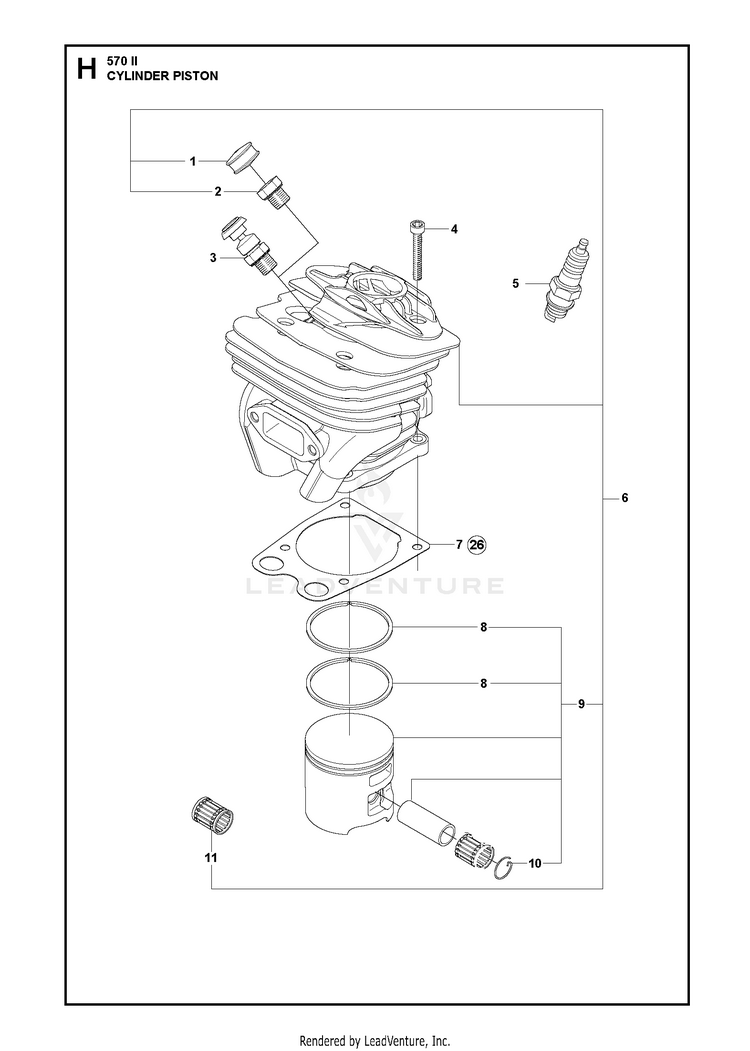

CYLINDER PISTON

...
...
11
NEEDLE BEARING PISTON PIN 12X1 s/n from 20120900001/2012-02-20 - HUS-577572401
...
26
GASKET KIT Set of gaskets HUS-537212602
...
4
SCREW MC6S 5X25 HUS-725533355
...
10
WRIST PIN CLIP HUS-737431200
...
6
CYLINDER ASSY s/n from 20140600193/2014-02-05 - HUS-575257406
...
9
PISTON ASSY s/n from 2013-12-13 - HUS-575257304
...
3
VALVE HUS-584288701
...
5
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
7
GASKET HUS-544981501
...
2
CYLINDER PLUG HUS-503552201
...
1
PLUG HUS-537207101
...
8
PISTON RING HUS-522990101
