Husqvarna 570 II Chain Saw

Model: 570 II

Back To Assemblies

Save Part Not Listed?
product name

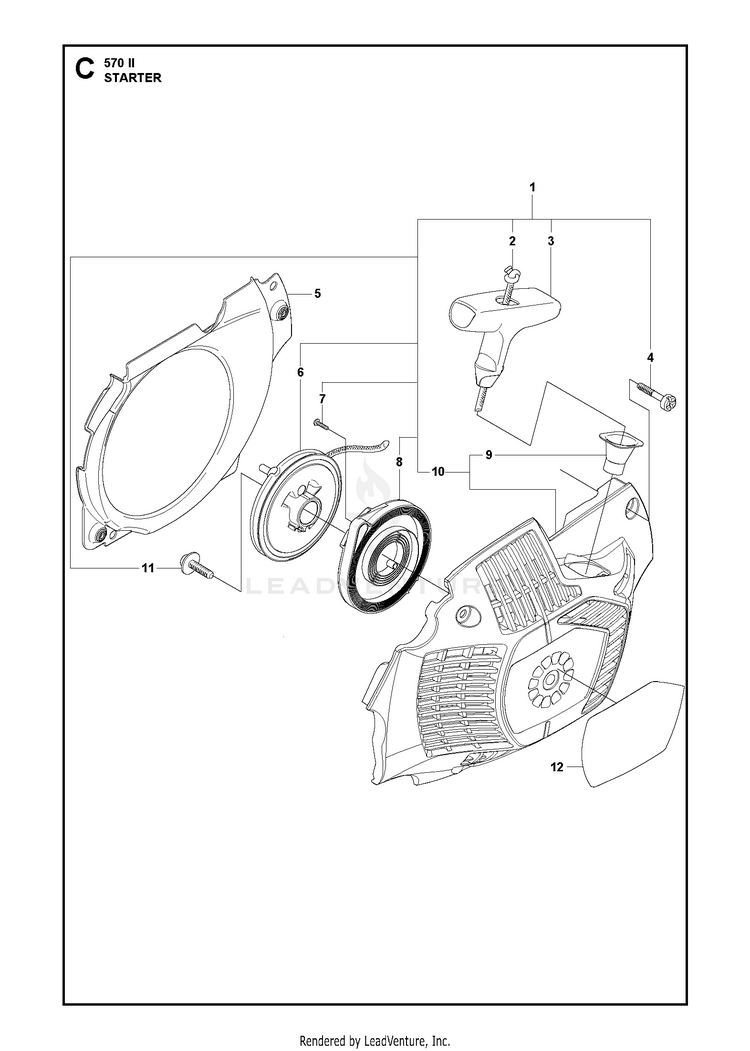

STARTER

...
...
3
HANDLE HUS-537232501
...
6
STARTER PULLEY HUS-537202401
...
9
SLEEVE HUS-537283201
...
5
PLATE HUS-537202601
...
11
SCREW HUS-503205216
...
2
STARTER ROPE HUS-505305125
...
4
SCREW.CIHPANMO M5X19 10.9 HUS-544080301
...
12
NEEDS DESCRIPTION 576XP AutoTune HUS-504094107
...
10
STARTER HOUSING HUS-504045401
...
1
STARTER ASSY HUS-504045502
...
7
SCREW HUS-503212813
...
8
SPRING s/n from 2014900001/2010-02-10 - HUS-505065301
