product name

Husqvarna 570 II Chain Saw

Model: 570 II

Back To Assemblies

Save Part Not Listed?

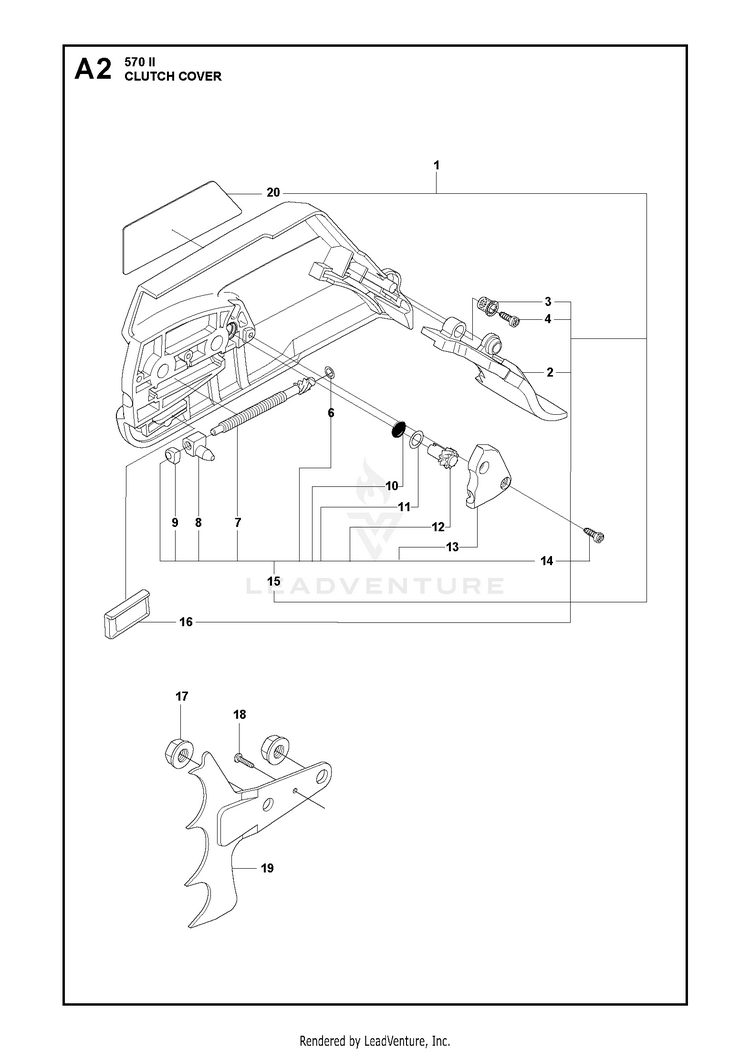

product name

CLUTCH COVER

...
...
10
O-RING HUS-740480702
...
9
SLEEVE HUS-537017401
...
7
WORM SCREW / ADJUSTER HUS-537079502
...
13
COVER HUS-537016801
...
11
WASHER HUS-503230063
...
1
CHAIN BRAKE COVER HUS-537033571
...
18
SCREW HUS-503212810
...
20
DECAL HUS-537033803
...
6
WASHER HUS-503230066
...
16
CHAIN GUIDE HUS-501517201
...
15
KIT-CHAIN TENSIONER HUS-537044102
...
12
WORM WHEEL HUS-537079402
...
4
SCREW HUS-503212810
...
19
SPIKE OUTER HUS-503719701
...
8
PAWL HUS-503998301
...
2
PROTECTOR HUS-503762902
...
3
WASHER HUS-503897001
...
17
NUT M8 FLANGE HUS-503220001
...
14
SCREW HUS-503212810
