Husqvarna 570 II Chain Saw

Model: 570 II

Back To Assemblies

Save Part Not Listed?
product name

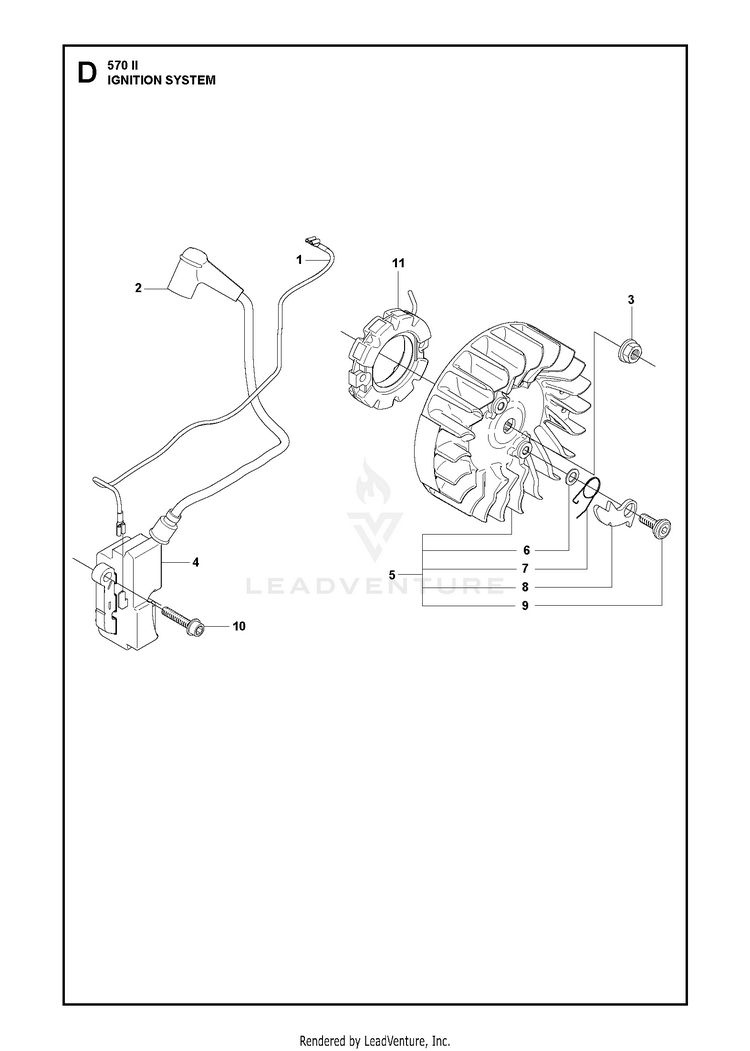

IGNITION SYSTEM

...
...
10
SCREW HUS-503200220
...
11
STATOR 59MM H576AT 576XP Autotune s/n from 20114500001/2011-11-08 - HUS-576189201
...
8
PAWL HUS-501673201
...
4
IGNITION MODULE COT HUS-510115802
...
2
SPARK PLUG CAP HUS-506082501
...
3
NUT W/ WASHER HUS-503220401
...
7
SPRING HUS-501673501
...
6
WASHER HUS-503230042
...
5
FLYWHEEL HUS-537209602
...
1
SHORT CIRCUIT CABLE HUS-544911801
...
9
SCREW M5X14 HUS-501819901
Schematic Image Zoomed
