Husqvarna 570 II Chain Saw

Model: 570 II

Back To Assemblies

Save Part Not Listed?
product name

FUEL TANK

...
...
19
VIBRATION ABSORBER Hard HUS-537210304
...
13
PROTECTOR HUS-537205701
...
9
PIN HUS-720182520
...
19
VIBRATION ABSORBER Std HUS-537210303
...
16
FUEL TANK BUSHING HUS-503735801
...
17
KIT HOSE SPIRAL 300 s/n from 20131100004/2013-03-21 - HUS-591375201
...
10
FUEL HOSE STRAIGHT 105 s/n from 20131100004/2013-03-21 - HUS-581756106
...
4
THROTTLE WIRE HUS-537211101
...
14
SCREW HUS-503212810
...
18
KIT FUEL FILTER HUS-591375401
...
15
VIBRATION ABSORBER Hard HUS-537210302
...
20
TANK CAP HUS-537215207
...
7
THROTTLE TRIGGER HUS-537208301
...
3
THROTTLE LOCK HUS-537208401
...
6
SPRING HUS-537209801
...
5
LEVER HUS-537208501
...
22
SEALING HUS-589241101
...
11
FUEL TANK VENT HUS-501152901
...
12
TANK UNIT HUS-537213504
...
2
COVER Grey HUS-537205601
...
21
TANK LOCK HUS-503578901
...
8
PIN HUS-720182520
...
15
VIBRATION ABSORBER Std HUS-537210301

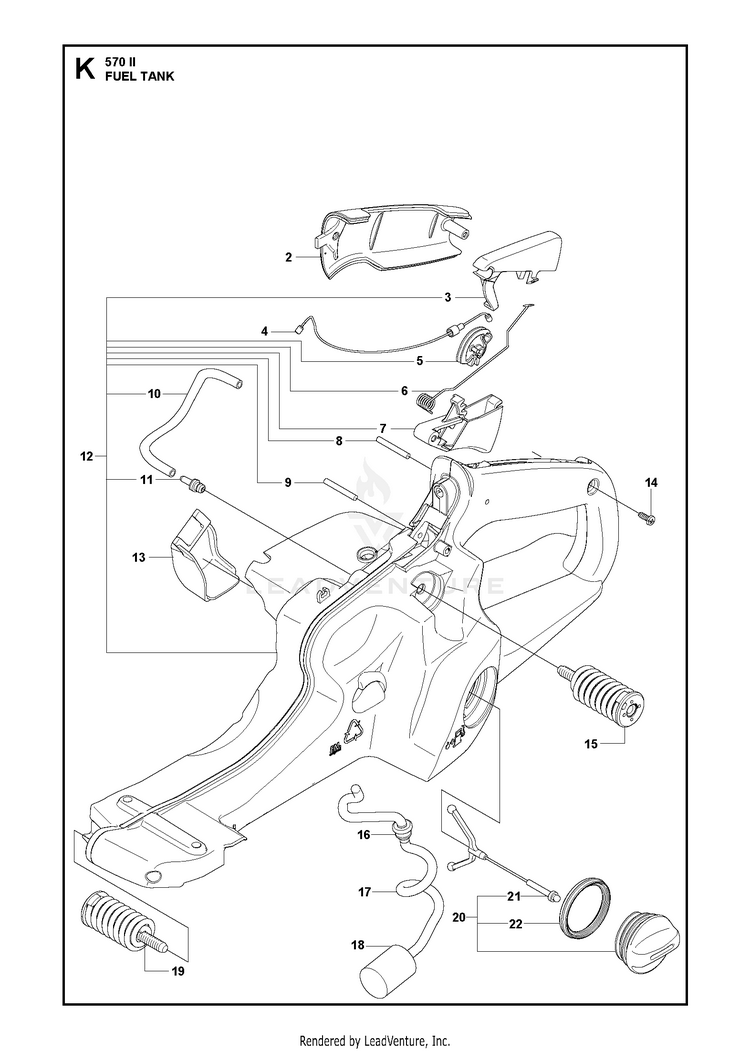

Schematic Image Zoomed
