Husqvarna 570 II Chain Saw

Model: 570 II

Back To Assemblies

Save Part Not Listed?
product name

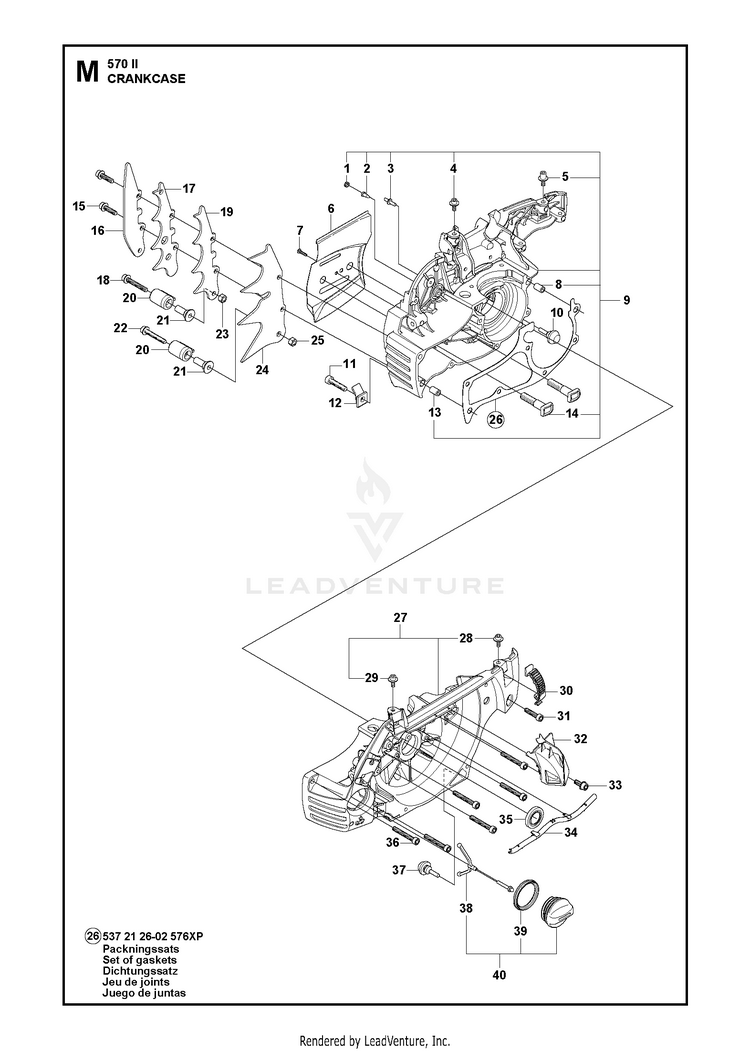

CRANKCASE

...
...
20
SPACER HUS-537024401
...
18
SCREW IHSCFM HUS-503200780
...
31
SCREW HUS-503207320
...
2
VALVE-CHECK (DUCKBILL) HUS-530026119
...
5
SCREW IHSCM HUS-505111501
...
27
CRANKCASE ASSY HUS-544896602
...
21
CHAIN CATCHER HUS-537089201
...
17
FELLING DOG HUS-503647902
...
25
NUT HUS-503222401
...
1
SINTERED BRONZE FILTER HUS-537403502
...
29
SCREW IHSCM HUS-505111501
...
28
SCREW IHSCM HUS-505111501
...
40
TANK CAP HUS-537215207
...
24
FELLING DOG HUS-537017201
...
19
FELLING DOG HUS-537017101
...
14
BOLT HUS-537051301
...
7
SCREW HUS-503212810
...
33
SCREW HUS-503200712
...
36
SCREW HUS-503200870
...
22
SCREW IHSCFM HUS-503200780
...
10
BUFFER HUS-503846101
...
9
CRANKCASE ASSY HUS-544896602
...
23
NUT HUS-503222401
...
30
CLIP GRAY Grey HUS-503894703
...
38
TANK LOCK HUS-503578901
...
26
GASKET KIT Set of gaskets HUS-537212602
...
39
SEALING HUS-589241101
...
8
GUIDE BUSHING HUS-593806001
...
6
BAR PLATE HUS-537013702
...
34
HOLDER HUS-537203901
...
35
RADIAL SEAL HUS-505486801
...
4
SCREW IHSCM HUS-505111501
...
13
GUIDE BUSHING HUS-593806001
...
32
JET HUS-537209201
...
11
SCREW HUS-503207320
...
16
BUMPER HUS-537042901
...
3
PIN HUS-537203001
...
15
SCREW HUS-503212616
...
33
SCREW HUS-503200712
...
12
CHAIN CATCHER HUS-537377901
...
37
BUFFER HUS-503846101
