Husqvarna 570 II Chain Saw

Model: 570 II

Back To Assemblies

Save Part Not Listed?
product name

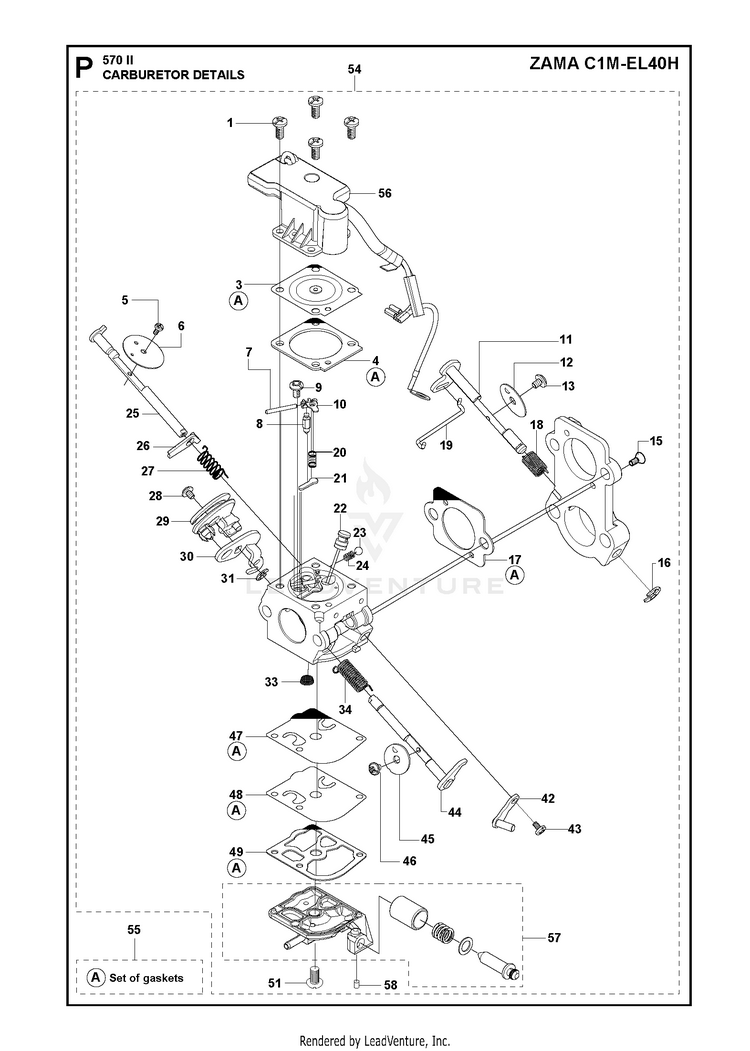

CARBURETOR DETAILS

...
...
44
NEEDS DESCRIPTION s/n from 20111200004/2011-03-29 - HUS-577575601
...
6
CHOKE VALVE HUS-504627701
...
12
THROTTLE FLAP HUS-537177001
...
47
PUMP DIAPHRAGM HUS-537383101
...
49
GASKET HUS-537020101
...
48
DIAPHRAGM HUS-537403301
...
24
SPRING HUS-537012601
...
1
SCREW HUS-506396601
...
28
SCREW HUS-503479001
...
34
SPRING HUS-537382901
...
4
GASKET METERING HUS-504627901
...
3
DIAPHRAGM HUS-504113801
...
17
GASKET HUS-537385301
...
55
GASKET SET KIT HUS-504644001
...
11
SHAFT HUS-544237801
...
51
SCREW HUS-503479601
...
57
IDLE SPEED SCREW TAMPERPROOF K HUS-581463101
...
27
SPRING HUS-537384401
...
23
BALL HUS-537012501
...
20
SPRING HUS-537383401
...
19
ROD HUS-544237901
...
21
NEEDS DESCRIPTION HUS-504628001
...
30
LEVER HUS-537384101
...
5
SCREW HUS-503481801
...
10
LEVER HUS-503665901
...
16
CLIP HUS-537385001
...
15
SCREW HUS-537385101
...
26
LEVER HUS-544238001
...
58
PLUG HUS-503481101
...
43
SCREW HUS-503479001
...
45
NEEDS DESCRIPTION HUS-504627801
...
13
SCREW HUS-503481801
...
7
PIN HUS-537020801
...
31
E RING s/n from 20111200004/2011-03-29 - HUS-504026701
...
22
JET HUS-544237701
...
33
STRAINER HUS-503535701
...
18
SPRING HUS-537385501
...
42
LEVER HUS-537384501
...
29
THROTTLE LEVER ASSY HUS-544387601
...
46
SCREW s/n from 2013060026/2013-02-14 - HUS-503523601
...
9
SCREW HUS-503480101
...
54
CARBURETTOR C1M-EL40H ZAMA C1M-EL 40H HUS-581279701
...
8
INLET NEEDLE HUS-503479701
...
56
VALVE HOUSING ASSY HUS-576694201
...
25
CHOKE SHAFT HUS-537384201
