Husqvarna 570 II Chain Saw

Model: 570 II

Back To Assemblies

Save Part Not Listed?
product name

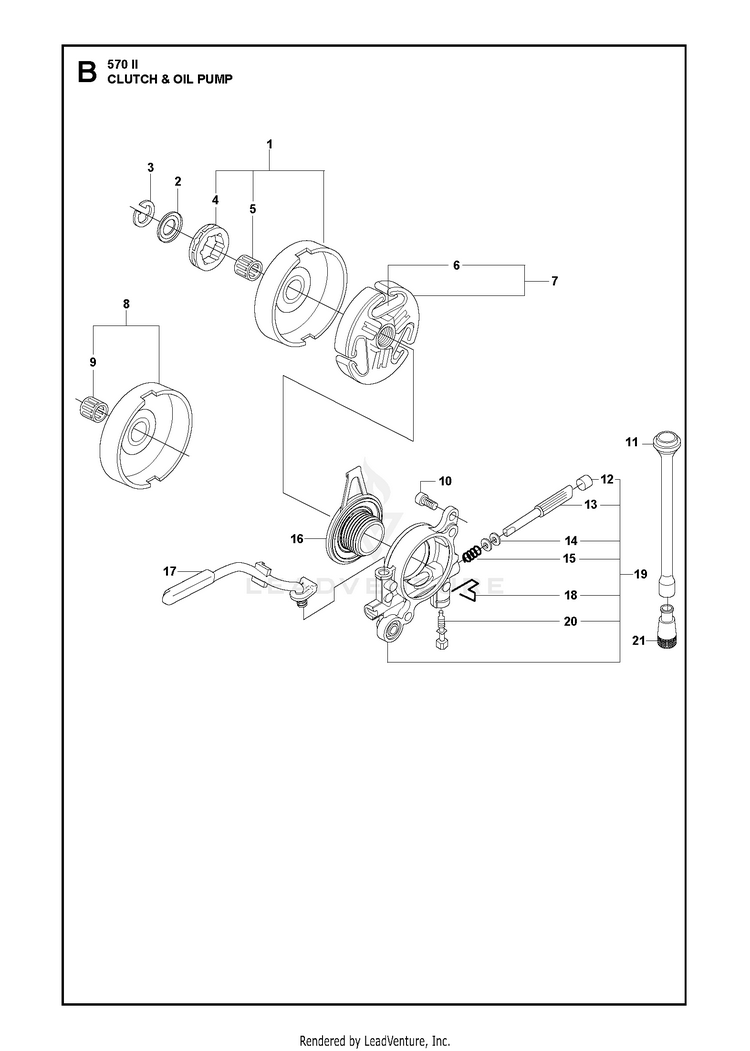

CLUTCH & OIL PUMP

...
...
1
CLUTCH DRUM ASSY STD 7 SPLINES 3/8 x 8T HUS-504547203
...
14
WASHER 6.1X9 HUS-503230004
...
9
CLUTCH DRUM BEARING HUS-503432001
...
13
PUMP PISTON HUS-503521501
...
16
PINION HUS-582270104
...
10
SCREW HUS-503205301
...
3
RETAINING RING HUS-503272101
...
6
SPRING HUS-537360601
...
18
SPRING CLIP HUS-503813001
...
5
CLUTCH DRUM BEARING HUS-503432001
...
2
WASHER HUS-503752401
...
1
CLUTCH DRUM ASSY 3/8 x 7T HUS-504547202
...
15
SPRING HUS-501615801
...
4
68210/RIM 3/8 x 7T HUS-640200214
...
4
22273 POWER MATE RIM 3/8 x 8T HUS-640200216
...
8
CLUTCH DRUM HUS-503861703
...
19
OIL PUMP HUS-503521305
...
11
HOSE. HUS-501895301
...
12
PLUG HUS-503624901
...
17
HOSE HUS-537209101
...
7
CLUTCH ASSY M14X1.25-6H HUS-586798402
...
20
SCREW HUS-503811301
...
21
OIL SCREEN HUS-501544102
Schematic Image Zoomed
