product name

Husqvarna 570 (2009-08) Chain Saw

Model: 570 (2009-08)

Back To Assemblies

Save Part Not Listed?
product name

Fuel Tank

...
...
1
COVER HUS-537205501
...
3
THROTTLE LOCK HUS-537208401
...
4
THROTTLE WIRE HUS-537211101
...
5
LEVER HUS-537208501
...
6
SPRING HUS-537209801
...
7
THROTTLE TRIGGER HUS-537208301
...
8
PIN HUS-720182520
...
9
PIN HUS-720182520
...
10
FUEL HOSE STRAIGHT 105 HUS-581756106
...
11
FUEL TANK VENT HUS-501152901
...
12
TANK UNIT HUS-537213504
...
13
PROTECTOR HUS-537205701
...
14
SCREW HUS-503212810
...
15
VIBRATION ABSORBER Std HUS-537210301
...
15
VIBRATION ABSORBER Hard HUS-537210302
...
16
FUEL TANK BUSHING HUS-503735801
...
17
KIT HOSE SPIRAL 300 HUS-591375201
...
18
KIT FUEL FILTER HUS-591375401
...
19
VIBRATION ABSORBER Std HUS-537210303
...
19
VIBRATION ABSORBER Hard HUS-537210304
...
20
TANK CAP HUS-537215207
...
21
TANK LOCK HUS-503578901
...
22
SEALING HUS-589241101

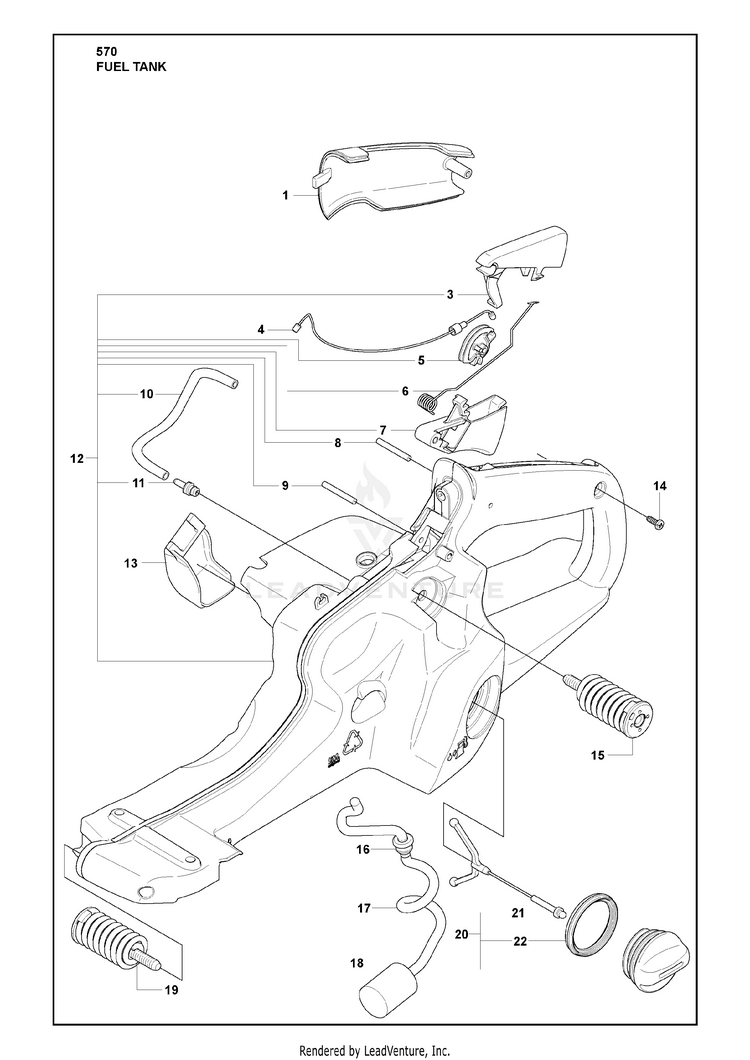

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
