Husqvarna 570 (2009-08) Chain Saw

Model: 570 (2009-08)

Back To Assemblies

Save Part Not Listed?
product name

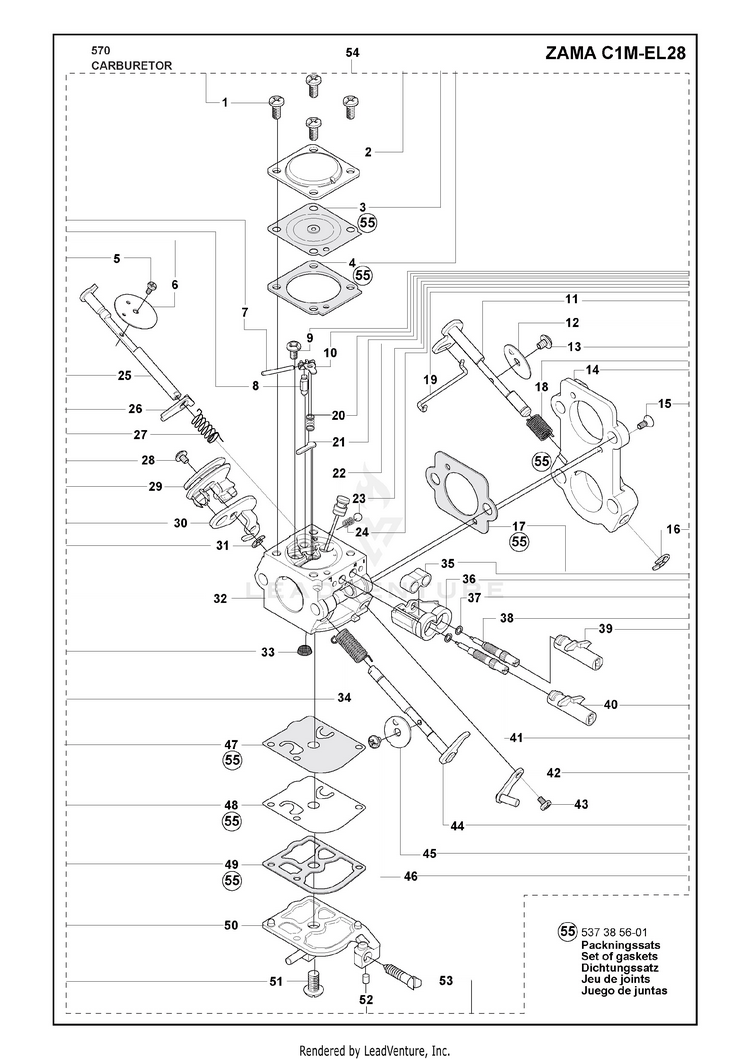

Carburetor

...
...
1
SCREW HUS-503480501
...
2
COVER HUS-537383701
...
3
DIAPHRAGM HUS-537383501
...
4
GASKET HUS-537383601
...
5
SCREW HUS-503481801
...
6
CHOKE FLAP HUS-537266801
...
7
PIN HUS-537020801
...
8
INLET NEEDLE HUS-503479701
...
9
SCREW HUS-503480101
...
10
LEVER HUS-503665901
...
11
SHAFT HUS-544237801
...
12
THROTTLE FLAP HUS-537177001
...
13
SCREW HUS-503481801
...
14
CARBURETOR HUS-580735801
...
15
SCREW HUS-537385101
...
16
CLIP HUS-537385001
...
17
GASKET HUS-537385301
...
18
SPRING HUS-537385501
...
19
ROD HUS-544237901
...
20
SPRING HUS-537383401
...
21
PLUG HUS-503535601
...
22
JET HUS-544237701
...
23
BALL HUS-537012501
...
24
SPRING HUS-537012601
...
25
CHOKE SHAFT HUS-537384201
...
26
LEVER HUS-544238001
...
27
SPRING HUS-537384401
...
28
SCREW HUS-503479001
...
29
LEVER HUS-537213701
...
30
LEVER HUS-537384101
...
31
CLIP HUS-537385201
...
32
CARBURETOR HUS-580735801
...
33
STRAINER HUS-503535701
...
34
SPRING HUS-537382901
...
35
SLEEVE HUS-537274201
...
36
SLEEVE HUS-503903401
...
37
WASHER HUS-503974001
...
38
NEEDLE HIGH SPEED H HUS-537383801
...
39
LIMITER HUS-537384701
...
40
LIMITER HUS-537384601
...
41
LOW SPEED NEEDLE L HUS-537383901
...
42
LEVER HUS-537384501
...
43
SCREW HUS-503479001
...
44
THROTTLE SHAFT HUS-537382801
...
45
FLAP HUS-537383001
...
46
SCREW HUS-503481801
...
47
PUMP DIAPHRAGM HUS-537383101
...
48
DIAPHRAGM HUS-537403301
...
49
GASKET HUS-537020101
...
50
COVER HUS-537383201
...
51
SCREW HUS-503479601
...
52
PLUG HUS-503481101
...
53
SCREW HUS-537383301
...
54
CARBURETOR ZAMA C1M-EL28 HUS-580735801
...
55
GASKET SET set of gaskets HUS-537385601
