Husqvarna 570 (2007-01) Chain Saw

Model: 570 (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

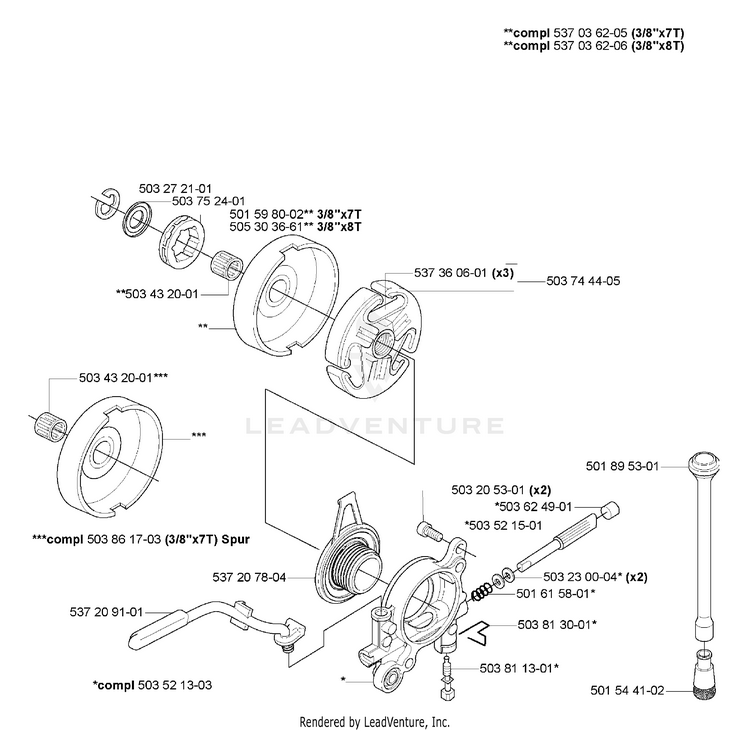

Clutch/Drum & Oil Pump

...
...
501544102
OIL SCREEN HUS-501544102
...
501598001
68210/RIM HUS-640200214
...
501615801
SPRING HUS-501615801
...
501895301
HOSE. HUS-501895301
...
503205301
SCREW HUS-503205301
...
503230004
WASHER 6.1X9 HUS-503230004
...
503272101
RETAINING RING HUS-503272101
...
503432001
CLUTCH DRUM BEARING HUS-503432001
...
503521303
OIL PUMP HUS-503521305
...
503521501
PUMP PISTON HUS-503521501
...
503624901
PLUG HUS-503624901
...
503744405
CLUTCH ASSY M14X1.25-6H HUS-586798402
...
503752401
WASHER HUS-503752401
...
503811301
SCREW HUS-503811301
...
503813001
SPRING CLIP HUS-503813001
...
503861703
CLUTCH DRUM HUS-503861703
...
505303661
22273 POWER MATE RIM HUS-640200216
...
537036205
CLUTCH DRUM ASSY HUS-586980601
...
537036206
CLUTCH DRUM ASSY HUS-586980602
...
537207804
PINION HUS-582270104
...
537209101
HOSE HUS-537209101
...
537360601
SPRING HUS-537360601
