Husqvarna 570 (2007-01) Chain Saw

Model: 570 (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

Chain Brake/ Throttle

...
...
501875304
KNEE JOINT HUS-501875304
...
503200712
SCREW HUS-503200712
...
503212810
SCREW HUS-503212810
...
503217072
SCREW HUS-503217072
...
503436501
LOCK SPRING HUS-503436501
...
503709901
BRAKE SPRING HUS-503709902
...
503752202
BRAKE BAND HUS-503752202
...
503792701
SUPPORT HUS-503792702
...
503869301
DAMPNER HUS-597909701
...
503869702
SPRING HUS-503869702
...
537202701
CHAIN BRAKE HUS-537202701
...
537202801
BUSHING HUS-537202801
...
537203101
LEVER HUS-537203101
...
537203201
LOCK HUS-537203201
...
537203501
BASE HUS-537203501
...
537203601
SLEEVE HUS-537203601
...
537203801
GROMMET HUS-537203801
...
537205101
CONTROL HUS-537205101
...
537205201
CHOKE CONTROL HUS-537205201
...
537205301
SEALING HUS-537205301
...
537208701
CABLE HUS-537208701
...
537209001
SCREW HUS-537209001
...
537210701
GUIDE HUS-537210701

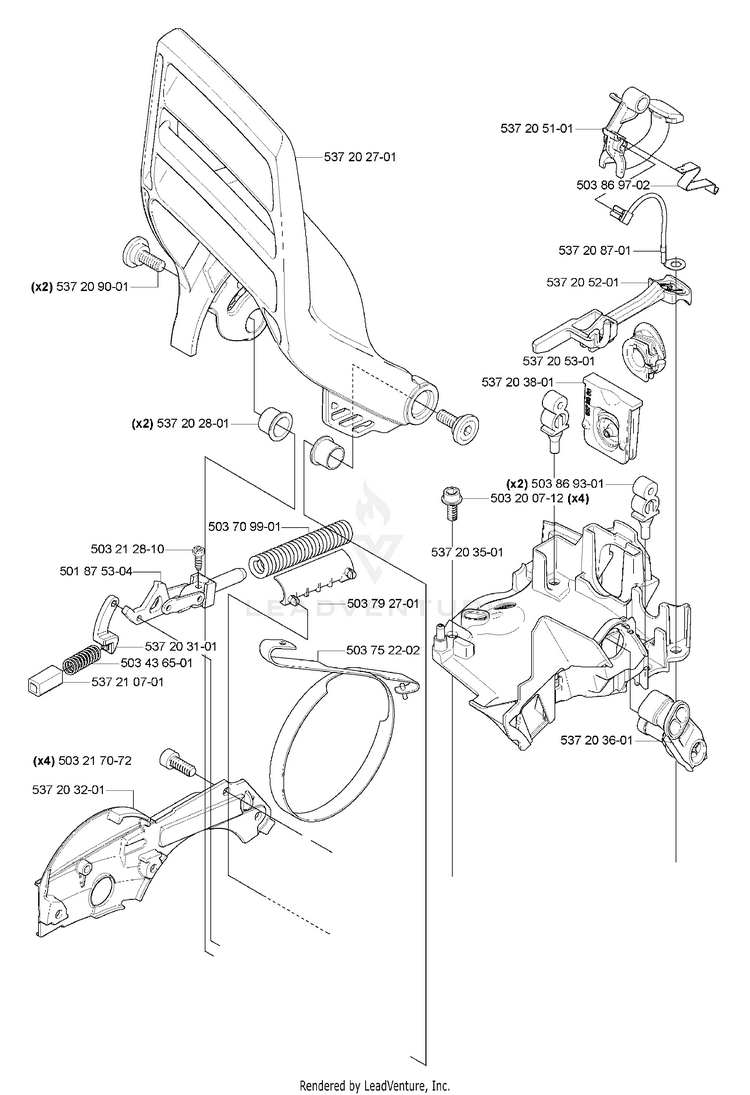

Schematic Image Zoomed
