product name

Husqvarna 565 Chain Saw

Model: 565

Back To Assemblies

Save Part Not Listed?
product name

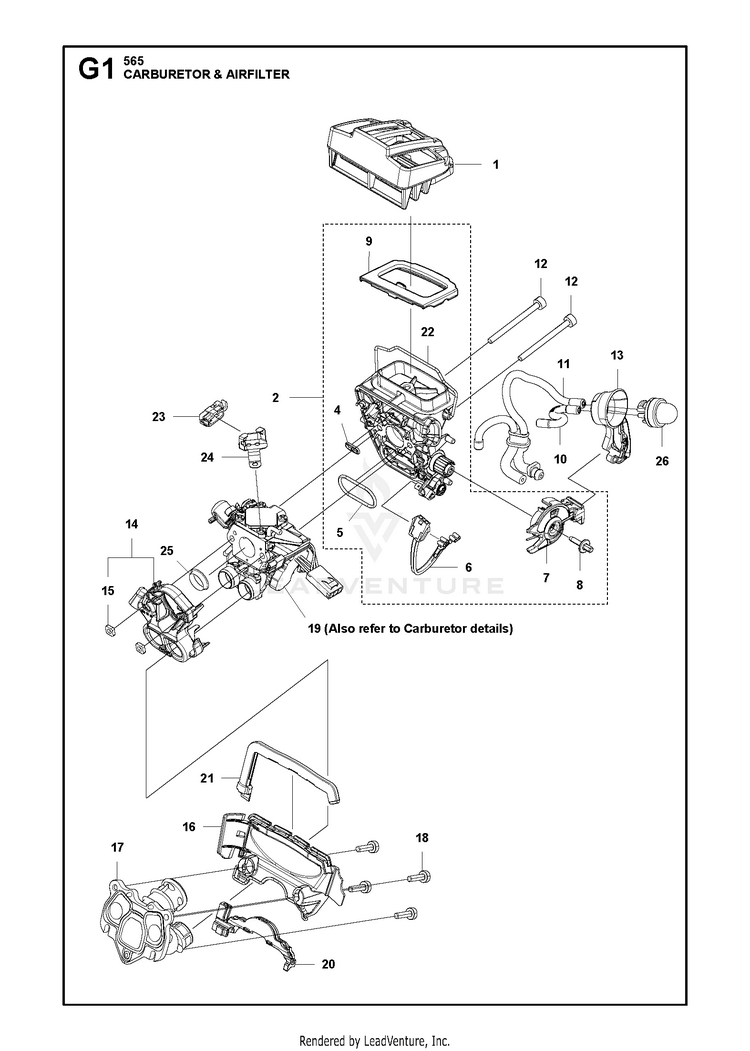

CARBURETOR & AIR FILTER

...
...
15
NUT HUS-503226503
...
1
AIR FILTER ASSY H565 64 MICRON 80 µm Black HUS-575526401
...
2
INLET ELBOW STANDARD SPARE PAR Std HUS-577419005
...
14
FLANGE CARBURETTOR FLANGE HUS-505165202
...
17
INLET PIPE H565/H572 STD Std HUS-575235301
...
7
CHOKE CONTROL ASSY CHOKE/STOP HUS-510017202
...
17
INLET PIPE H565/H572 COLD For extrem cold conditions. HUS-575235302
...
5
SEALING HUS-525619001
...
18
SCREW ITXSCM M4X15 T27 12.9 T HUS-526818101
...
1
AIR FILTER ASSY H565 NW Non Woven Nature HUS-575526403
...
10
FUEL HOSE HUS-523056801
...
25
SUPPORT SLEEVE HUS-582025101
...
19
CARBURETTOR KIT 565XP C1M-140062B HUS-591158304
...
8
SCREW HUS-505156201
...
16
BAFFLE INTERMEDIATE WALL INTER HUS-501182001
...
23
CONTACT CLAMP HUS-589340701
...
26
AIR PURGE BUBBLE HUS-503936601
...
21
SEALING BAFFLE HUS-590059501
...
22
CLAMP HUS-575527801
...
13
SEALING HUS-525588101
...
11
FUEL HOSE PURGE/TANKVENTILATIO HUS-525344303
...
1
AIR FILTER ASSY H565 25 MICRON 44 µm Yellow HUS-575526402
...
6
WIRING ASSY STOP HUS-577536402
...
4
SEALING HUS-525619201
...
20
SEALING INLET PIPE HUS-582179501
...
12
SCREW ITXSCFM M4X50 T20 12.9 HUS-581143101
...
24
RETAINER CONTACT CLAMP HUS-589340601
...
9
SEALING FILTER HOLDER HUS-589378401
