product name

Husqvarna 565 Chain Saw

Model: 565

Back To Assemblies

Save Part Not Listed?
product name

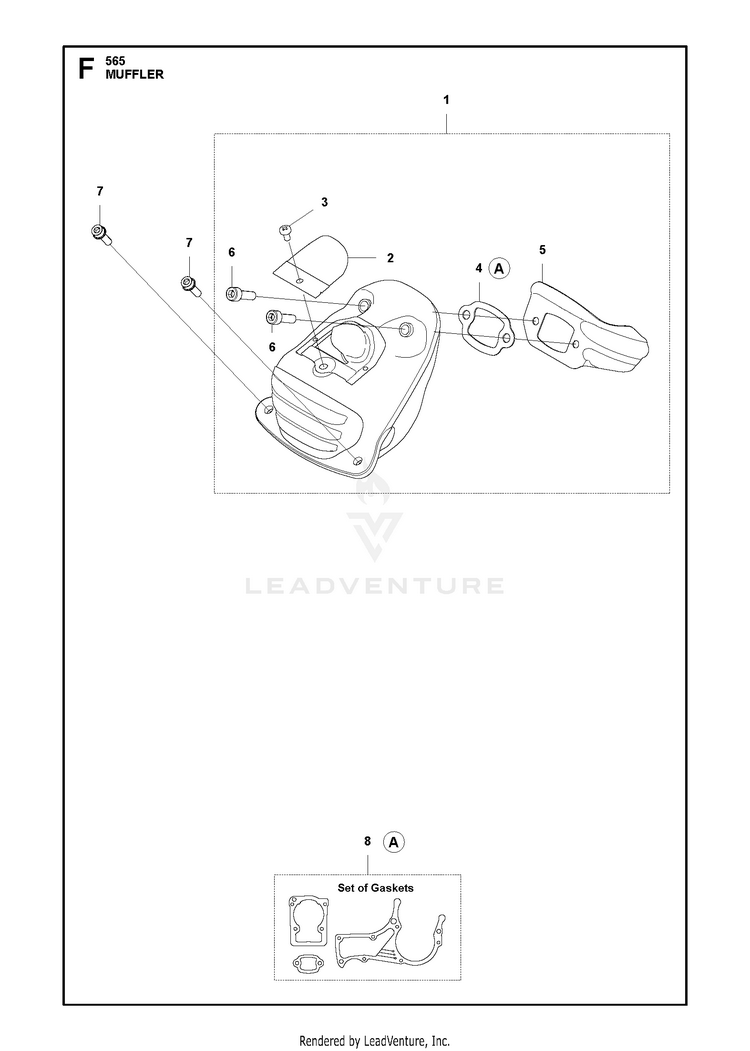

MUFFLER

...
...
4
GASKET MUFFLER A054 HUS-587350901
...
5
HEAT DEFLECTOR MUFFLER A054 HUS-587351001
...
7
SCREW ITXSCM M6X30 T27 10.9 Z HUS-525762503
...
6
SCREW ITXSCM M6X50 T27 12.9 T HUS-525825106
...
3
SCREW HUS-724128759
...
1
MUFFLER KIT 70CC HUS-598411201
...
8
GASKET KIT H565/H572 HUS-578864701
...
2
SPARK ARRESTER HUS-585390001
