Husqvarna 565 Chain Saw

Model: 565

Back To Assemblies

Save Part Not Listed?
product name

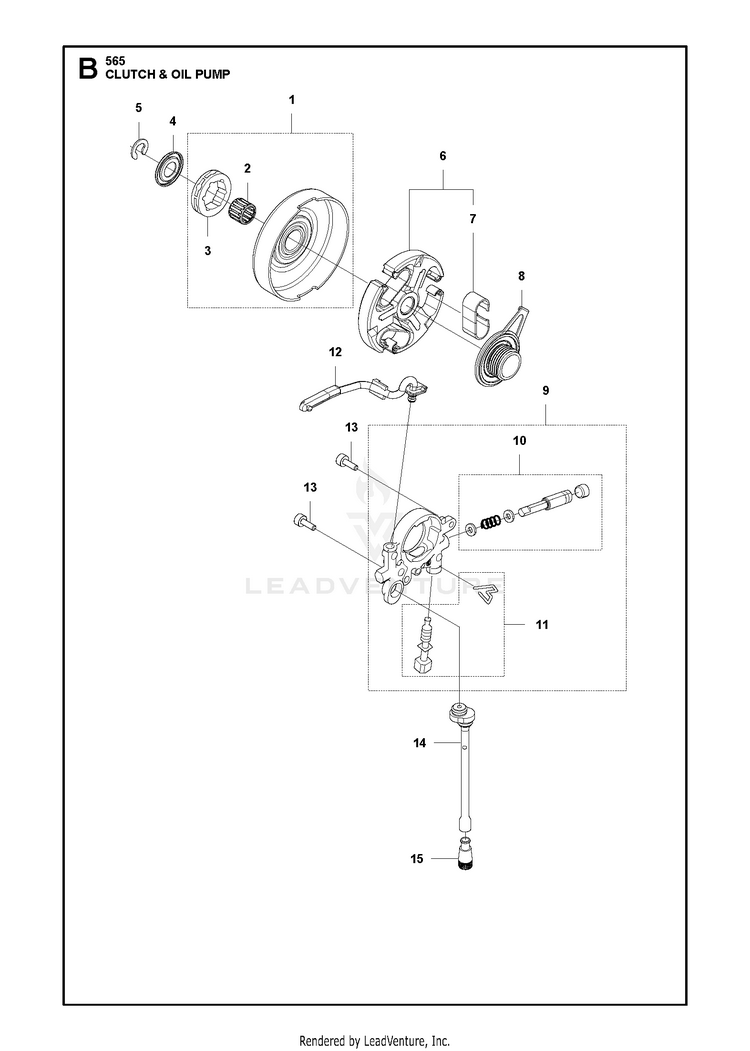

CLUTCH & OIL PUMP

...
...
8
PUMP PINION ASSY HUS-582270108
...
4
WASHER HUS-503752401
...
9
OIL PUMP ASSY HUS-589028403
...
14
HOSES HUS-588404702
...
11
OIL PUMP PIN SCREW KIT H565/H5 HUS-590120101
...
5
RETAINING RING HUS-503272101
...
2
CLUTCH DRUM BEARING HUS-503432001
...
12
OIL PRESSURE HOSE OIL PRESSURE HUS-576987402
...
15
OIL SCREEN HUS-501544102
...
6
CLUTCH ASSY HUS-586798404
...
3
68210/RIM HUS-640200214
...
13
SCREW ITXSCM M4X15 T27 12.9 T HUS-526818102
...
1
CLUTCH DRUM ASSY HUS-577603801
...
7
SPRING HUS-537360601
...
10
PUMP PISTON KIT H565/H572 HUS-590119703
