product name

Husqvarna 565 Chain Saw

Model: 565

Back To Assemblies

Save Part Not Listed?
product name

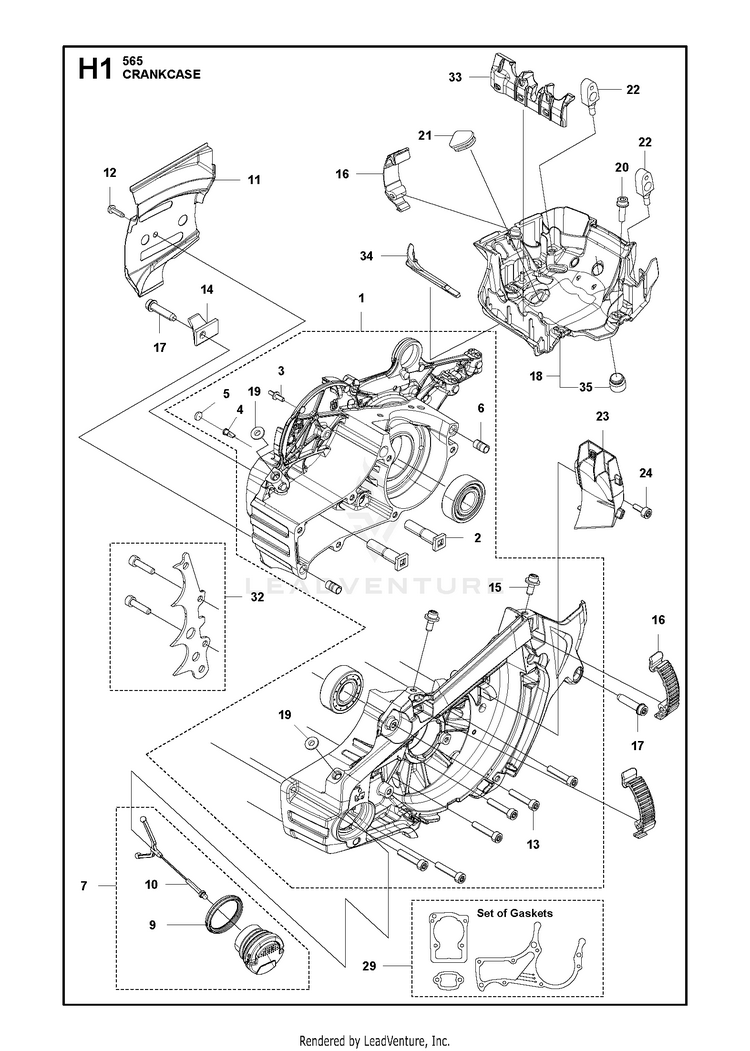

CRANKCASE

...
...
23
Air Nozzle HUS-589340502
...
9
SEALING HUS-589241101
...
29
GASKET KIT H565/H572 HUS-578864701
...
35
RUBBER BUMPER HUS-501515401
...
6
GUIDE BUSHING HUS-593806001
...
13
SCREW ITXSCM M5X25 12.9 TBO T HUS-575841104
...
19
FIXING WASHER DISTANCE WASHER HUS-583098401
...
15
SCREW ITXSCM WASHER M5X12 T27 HUS-525824401
...
18
CARBURETTOR AREA BASE KIT H572 HUS-534114101
...
17
SCREW HUS-525798103
...
3
PIN HUS-537203001
...
24
SCREW ITXSCM HUS-574353505
...
12
SCREW HUS-526221801
...
32
SPIKE KIT - INNER STD H565/H57 Kit - Inner Std HUS-590261002
...
14
CHAIN CATCHER HUS-537377902
...
33
SEALING CARB AREA BASE HUS-582179601
...
20
SCREW ITXSCFM HUS-525755202
...
16
BUCKLE ORANGE HUS-503894701
...
1
CRANKCASE ASSEMBLY H565 GREY 565 HUS-590195606
...
10
TANK LOCK HUS-503578901
...
2
BOLT HUS-537051301
...
7
TANK CAP ASSY HUS-522620003
...
34
SEALING CRANKCASE - CARB AREA HUS-589349001
...
11
CHAIN GUIDE PLATE BAR MOUNT HUS-575616301
...
22
DAMPNER Mounting HUS-597909701
...
4
VALVE-CHECK (DUCKBILL) HUS-530026119
...
21
GROMMET HUS-581559201
...
5
SINTERED BRONZE FILTER HUS-537403502
