product name

Husqvarna 565 Chain Saw

Model: 565

Back To Assemblies

Save Part Not Listed?
product name

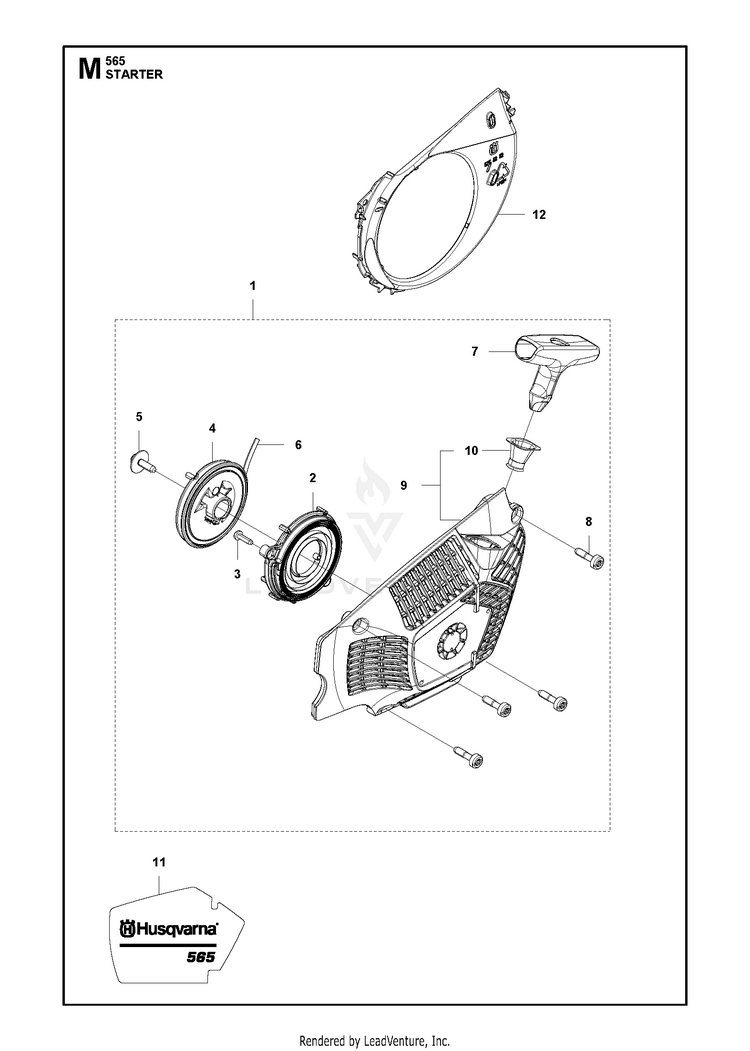

STARTER

...
...
1
Starter Housings HUS-575527604
...
10
SLEEVE HUS-537283201
...
2
SPRING CASSETTE ASSEMBLY HUS-598750302
...
11
DECAL HUS-575396403
...
8
SCREW CITXPANMO HUS-525824501
...
5
SCREW ITXSCT MT5X16 10.9 TBO HUS-576356601
...
3
SCREW HUS-503212813
...
4
STARTER PULLEY ASSY HUS-505158101
...
9
Starter Housings HUS-575525802
...
12
BAFFLE AIR HUS-575525201
...
7
HANDLE HUS-537232501
...
6
STARTER ROPE HUS-505305125
