product name

Husqvarna 565 Chain Saw

Model: 565

Back To Assemblies

Save Part Not Listed?

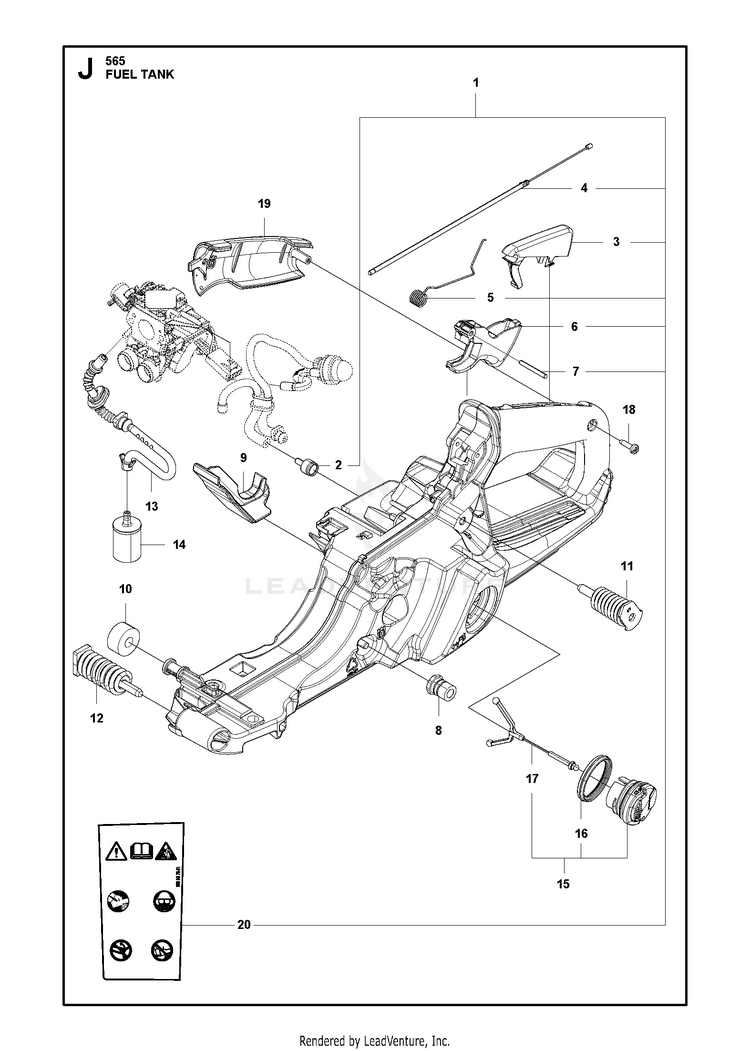

product name

FUEL TANK

...
...
12
ANTIVIBRATION ELEMENT FRONT HUS-503854104
...
14
FUEL FILTER 18-40 µm (Blue) HUS-503443203
...
9
WEAR PROTECTION FUEL TANK HUS-575010201
...
20
DECAL SPARE PART H565/H572 HUS-590567001
...
2
FUEL TANK VENT HUS-501152901
...
13
FUEL HOSE ASSY FUEL HOSE ASSY HUS-529578202
...
8
LATERAL SUPPORT HUS-501007601
...
16
SEALING HUS-589241101
...
6
THROTTLE TRIGGER CHAINSAW 70CC HUS-576956701
...
5
SPRING HUS-544099901
...
1
FUEL TANK ASSY STANDARD SPARE HUS-578200701
...
17
TANK LOCK HUS-503578901
...
15
TANK CAP ASSY HUS-522620003
...
14
NEEDS DESCRIPTION 18-40 µm (Blue) Mega pack (100 pcs) HUS-503443205
...
12
ANTIVIBRATION ELEMENT Hard HUS-503854103
...
3
THROTTLE LOCK HUS-537208401
...
11
ANTIVIBRATION ELEMENT REAR HUS-577062702
...
4
THROTTLE CABLE ASSY HUS-576162802
...
19
COVER HUS-537205501
...
10
DEFLECTION LIMITER HUS-523085501
...
7
PIN HUS-720182520
...
11
ANTIVIBRATION ELEMENT REAR HAR Hard HUS-577062701
...
18
SCREW CITXPANT HUS-525887402
