Husqvarna 560BFS (2011-10) Blower

Model: 560BFS (2011-10)

Back To Assemblies

Save Part Not Listed?
product name

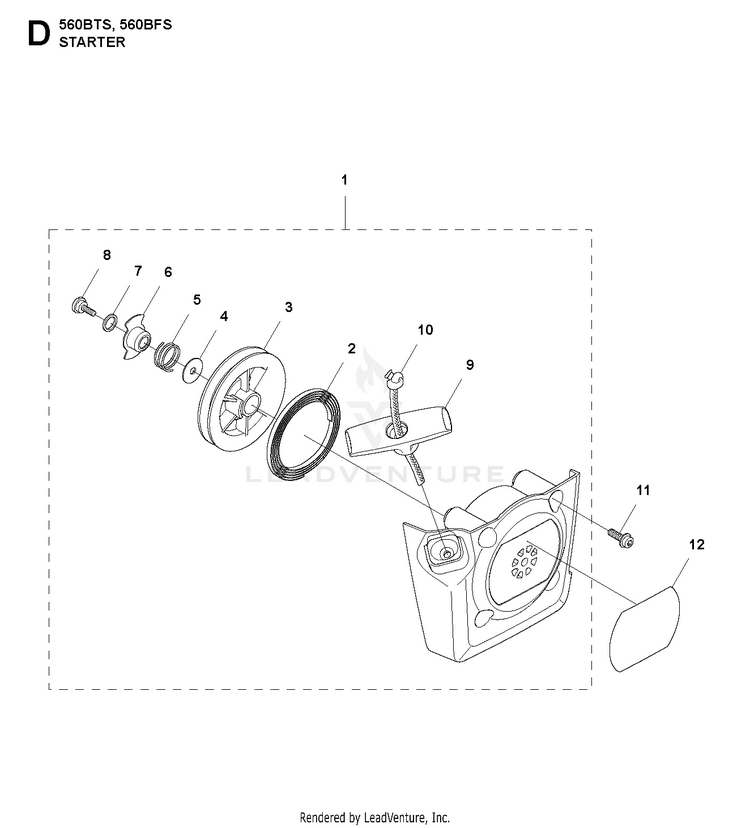

STARTER

...
...
1
STARTER ASSY HUS-578283501
...
2
SPRING . 1 HUS-521629601
...
3
REEL . 1 HUS-576594201
...
4
RP_WASHER . 1 HUS-544261801
...
5
SPRING FRICTION . 1 HUS-521630601
...
6
PLATE . 1 HUS-521630301
...
7
WASHER . 1 HUS-521631201
...
8
SCREW . 1 HUS-515367101
...
9
HANDLE . 1 HUS-537232501
...
10
ROPE . 1 HUS-577053101
...
11
BOLT HUS-506745601
...
12
Decals 560BTS HUS-594914807
...
12
Decals 560BFS HUS-594914808
Schematic Image Zoomed
