Husqvarna 560BFS (2011-10) Blower

Model: 560BFS (2011-10)

Back To Assemblies

Save Part Not Listed?
product name

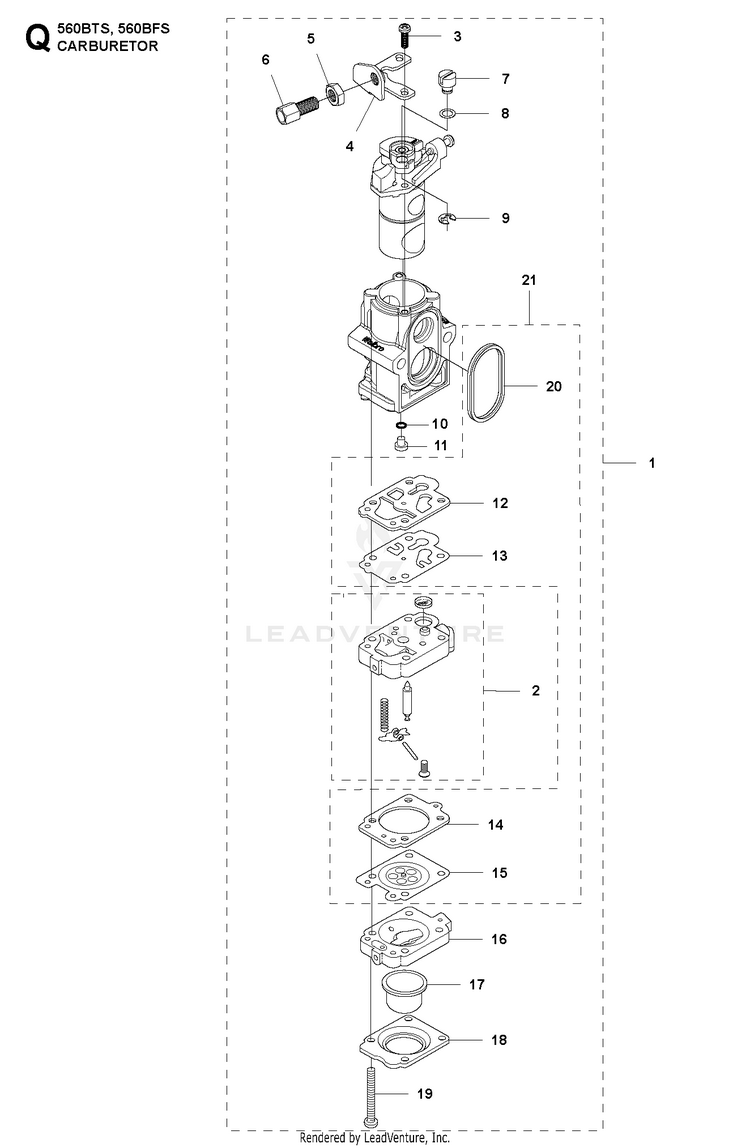

CARBURETOR

...
...
1
CARBURETOR HUS-581155801
...
2
BODY-A-PUMP . 1 HUS-544363501
...
3
SCREW . 1 HUS-505307901
...
4
BRACKET . 1 HUS-506746001
...
5
NUT . 1 HUS-510487401
...
6
SCREW (RPLS 191881170) . 1 HUS-521756001
...
7
SWIVEL . 1 HUS-506741201
...
8
WASHER . 1 HUS-506746101
...
9
RING . 1 HUS-516523601
...
10
O-RING . 1 HUS-505307501
...
11
JET . 1 HUS-578269101
...
12
GASKET . 1 21 HUS-506745101
...
13
DIAPHRAGM . 1 21 HUS-506689801
...
14
GASKET . 1 21 HUS-506740801
...
15
DIAPHRAGM . 1 21 HUS-505306801
...
16
BODY . 1 HUS-506740901
...
17
PUMP . 1 HUS-505306701
...
18
1OVER . 1 HUS-506741001
...
19
SCREW . 1 HUS-506741101
...
20
RING . 1 21 HUS-521631501
...
21
GASKET KIT HUS-511459501
