Husqvarna 560 XP (2013-01) Chain Saw

Model: 560 XP (2013-01)

Back To Assemblies

Save Part Not Listed?
product name

MUFFLER

...
...
1
MUFFLER KIT HUS-581914801
...
2
SCREW . 1 HUS-724128759
...
3
SPARK ARRESTER MUFFLER 60CC . 1 HUS-501813001
...
4
SCREW . 1 HUS-725537655
...
5
SLEEVE . 1 HUS-577656301
...
6
GASKET MUFFLER 60CC . 1 10 HUS-501813801
...
7
HEAT DEFLECTOR MUFFLER 60CC . 1 HUS-501814501
...
8
WASHER HUS-577902201
...
9
SCREW HUS-503207320
...
10
GASKET KIT A set of gaskets HUS-575270003

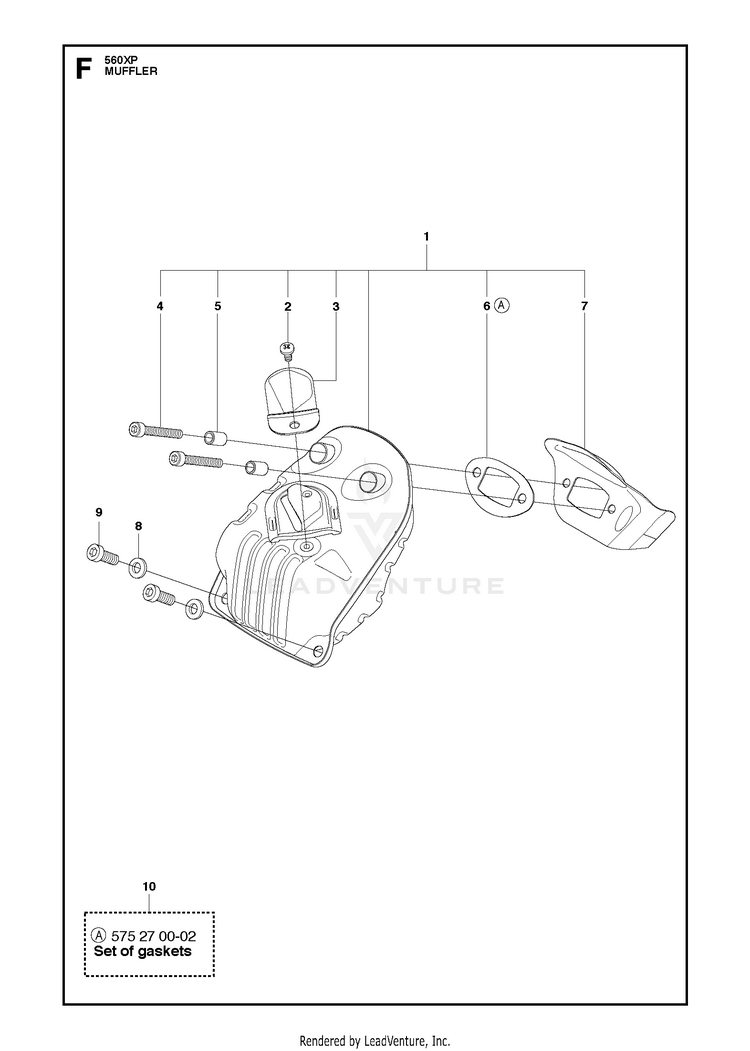

Schematic Image Zoomed
