Husqvarna 560 SR - 954140061A (1998-10) Walk Behind Mower

Model: 560 SR - 954140061A (1998-10)

Save Part Not Listed?
product name

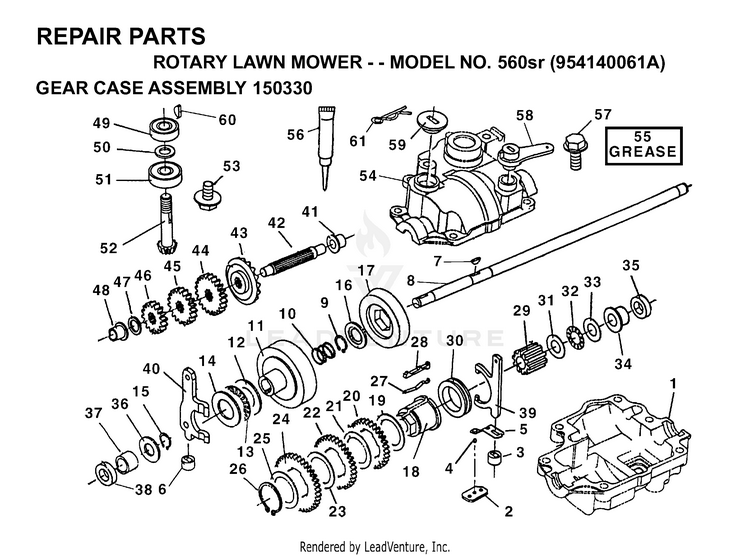

GEAR CASE

...
...
38
SEALING RING HUS-532148107
...
45
NEEDS DESCRIPTION HUS-532148080
...
40
NEEDS DESCRIPTION HUS-532148124
...
52
NEEDS DESCRIPTION HUS-532148137
...
11
CONE HUS-532148102
...
10
SPRING, RETURN HUS-532148109
...
16
WASHER HUS-532148096
...
8
AXLE, 560SR HUS-532148114
...
25
NEEDS DESCRIPTION HUS-532148097
...
27
NEEDS DESCRIPTION HUS-532148119
...
15
RING HUS-532148095
...
54
NEEDS DESCRIPTION HUS-532148144
...
26
NEEDS DESCRIPTION HUS-532148113
...
42
NEEDS DESCRIPTION HUS-532148065
...
32
NEEDS DESCRIPTION HUS-532148110
...
49
NEEDS DESCRIPTION HUS-532148141
...
60
KEY HUS-532148138
...
59
NEEDS DESCRIPTION HUS-532148127
...
23
NEEDS DESCRIPTION HUS-532148097
...
22
NEEDS DESCRIPTION HUS-532148083
...
29
NEEDS DESCRIPTION HUS-532148098
...
21
NEEDS DESCRIPTION HUS-532148097
...
39
NEEDS DESCRIPTION HUS-532148116
...
41
NEEDS DESCRIPTION HUS-532148069
...
57
SCREW HUS-532148147
...
44
NEEDS DESCRIPTION HUS-532148089
...
1
NEEDS DESCRIPTION HUS-532148145
...
17
CONE HUS-532148103
...
24
NEEDS DESCRIPTION HUS-532148075
...
14
NEEDS DESCRIPTION HUS-532148112
...
12
NEEDS DESCRIPTION HUS-532148112
...
30
NEEDS DESCRIPTION HUS-532148115
...
28
NEEDS DESCRIPTION HUS-532148121
...
53
NEEDS DESCRIPTION HUS-532148146
...
18
SHIFT COLLAR HUS-532148101
...
48
NEEDS DESCRIPTION HUS-532148069
...
19
NEEDS DESCRIPTION HUS-532148097
...
33
NEEDS DESCRIPTION HUS-532148111
...
9
RING HUS-532148095
...
43
NEEDS DESCRIPTION HUS-532148066
...
36
WASHER HUS-532148096
...
13
NEEDS DESCRIPTION HUS-532148108
...
37
NEEDS DESCRIPTION HUS-532148104
...
56
SILICONE HUS-503267201
...
47
NEEDS DESCRIPTION HUS-532148067
...
31
NEEDS DESCRIPTION HUS-532148111
...
7
NEEDS DESCRIPTION HUS-532148093
...
4
BALL HUS-532148135
...
34
NEEDS DESCRIPTION HUS-532148106
...
58
SHIFTER ARM HUS-532148117
...
51
NEEDS DESCRIPTION HUS-532148140
...
6
SUPPORT HUS-532148132
...
3
SUPPORT FORK, SHIFT HUS-532148118
...
5
SPRING HUS-532148122
...
35
SEALING RING HUS-532148107
...
2
BRACKET HUS-532148123
...
61
PIN HUS-532148133
...
50
NEEDS DESCRIPTION HUS-532148139

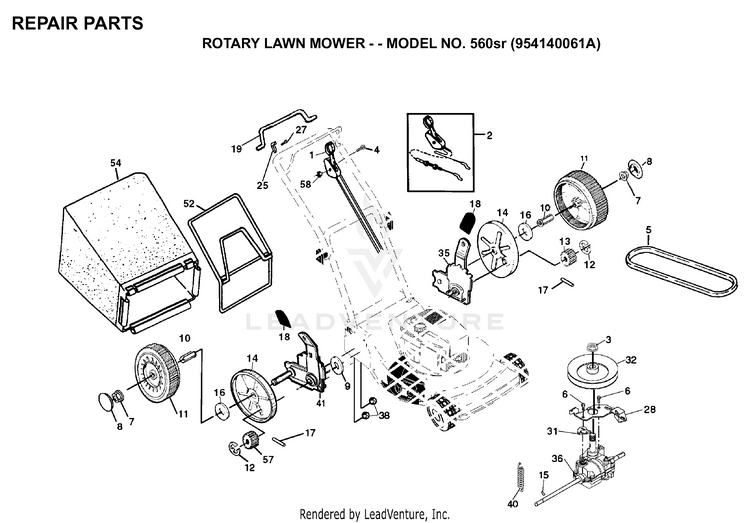

REPAIR PARTS

...
...
52
CATCHER.FRAME.WALK HUS-532088614
...
18
SELECTOR KNOB HUS-532701037
...
58
NUT.HEX.FLANGE.1/4 HUS-532191730
...
15
PIN.SPRING.THRUST HUS-532145354
...
57
DRIVE PINION RH HUS-532165096
...
12
E-RING 7/16 RE HUS-812000058
...
10
BUSHING PM HUS-532088446
...
6
SCREW HUS-532146315
...
25
BRACKET.DOWNSTOP HUS-532161462
...
5
DRIVE BELT HUS-532150327
...
19
DRIVE CONTROL BAR HUS-532162715
...
7
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
31
ARM HUS-532153823
...
9
THRUST WASHER HUS-532057079
...
40
SPRING HUS-532144902
...
2
KIT.DRIVE.CONTROL HUS-532163154
...
1
KIT.DRIVE.CONTROL HUS-532163154
...
13
PINION.DRIVE.LH HUS-532165097
...
17
DRIVE PAWL HUS-532164795
...
27
SCREW HUS-817021008
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
54
HUS-532134048
...
8
HUBCAP.8".GREY HUS-532157008
...
32
PULLEY HUS-532150326
...
28
BRACKET HUS-532153822
...
4
SCREW.PAN.HEAD HUS-532158755
...
3
METRIC NUT HUS-873031000
...
36
TRANSMISSION HUS-532150330
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
16
WASHER FLUT HUS-532067725

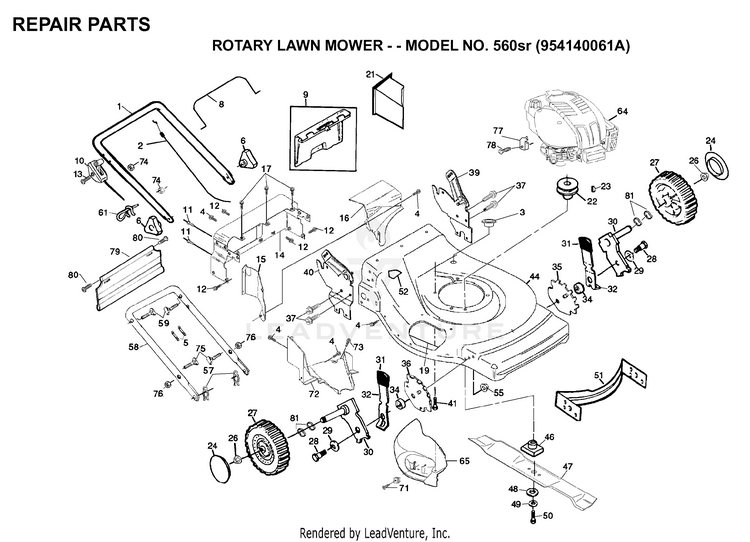

REPAIR PARTS 2

...
...
23
HI PRO KEY PM WSL HUS-532087677
...
11
RIVET BLIND HUS-532128415
...
31
SELECTOR KNOB HUS-532701037
...
3
PROTECTOR HUS-532145073
...
80
HINGE SCREW HUS-532088652
...
32
SELECTOR SPRING HUS-532125066
...
35
WHL ADJ BRKT LF/RR HUS-532800368
...
59
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
74
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
15
SIDE BAFFLE HUS-532145594
...
22
ENGINE.PULLEY.FWG HUS-532084596
...
47
BLADE.22.MULCH.PRECISION HUS-532406707
...
49
Washers HUS-596238701
...
13
SCREW 1/4-20X1.75 HUS-532059935
...
34
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
27
WHEEL.8X2.PR.LP.RAD.GREY HUS-532750550
...
78
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
24
HUBCAP.8".GREY HUS-532157008
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
28
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
12
SCREW HUS-532054583
...
4
SCREW.HXTAP.10-24 HUS-532150050
...
77
CABLE CLAMP(ENGINE) HUS-532111190
...
51
FRONT BAFFLE KIT HUS-532170031
...
81
KIT.O-RING/WASHER HUS-532428450
...
2
CABLE-ZONE HUS-532149771
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
79
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
8
CONTROL BAR HUS-532145641
...
73
SCREW.HX.13X.750 HUS-817411312
...
48
WASHER,HARDEN HUS-532851074
...
6
KNOB HUS-532087692
...
10
THROTTLE CONTROL HUS-532700644
...
57
HAIRPIN COTTER HUS-532051793
...
17
SCREW HUS-532149027
...
5
WIRE TIE HUS-532007192
...
76
Hardware HUS-596040501
...
72
BAFFLE BELT COVER HUS-532145062
...
29
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
71
SCREW.PAN.HEAD.#10 HUS-532141841
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
61
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
55
Nuts HUS-596322601
...
16
DISCHARGE BAFFLE HUS-532145066
...
46
BLADE ADAPTOR HUS-532851514
...
26
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
30
AXLE ARM HUS-532145937
...
21
MULCHER PLUG HUS-532150099
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
36
BRACKET WHL ADJ HUS-532140058
