Husqvarna 560 HSH (954140059A) (1998-02) Walk Mower

Model: 560 HSH (954140059A) (1998-02)

Save Part Not Listed?
product name

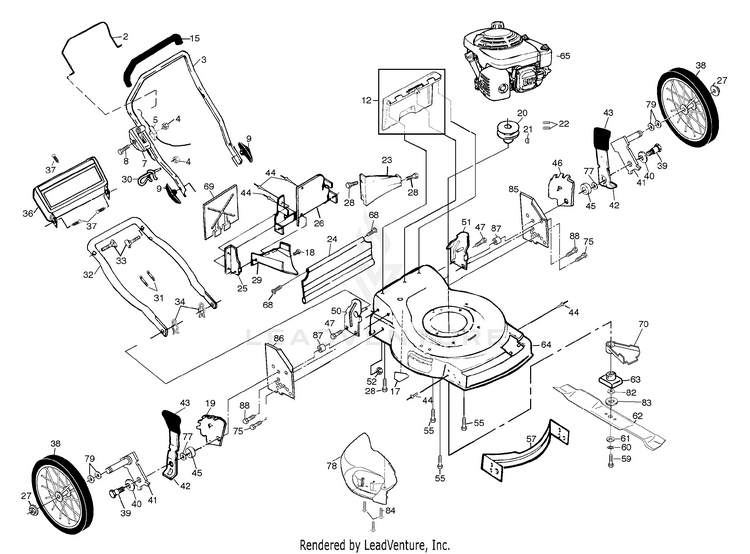

Rotary Lawn Mower (Part 1)

...
...
2
BAIL.CONTROL.WIRE.STD.COMF.BLK HUS-532146900
...
3
UPPER HANDLE HUS-532166268
...
4
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
5
CABLE ASSEMBLY HUS-532851671
...
7
CONTROL.THROTTLE.WALK HUS-532147758
...
8
SCREW.PAN.HEAD HUS-532158755
...
9
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
12
KIT.DOOR.REAR.22.STEEL.BLACK HUS-532151023
...
15
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
17
DECAL.CUTFINGER.CE.02 HUS-581579101
...
18
SCREW.HXTAP.10-24 HUS-532150050
...
19
WHL ADJ BRKT LF/RR HUS-532800368
...
20
ENGINE.PULLEY.FWG HUS-532084596
...
21
HI PRO KEY PM WSL HUS-532087677
...
22
SCREW HUS-532059708
...
23
BAFFLE.REAR.HSG.ASM.QT.22.BLAC HUS-532140661
...
24
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
25
SIDE BAFFLE HUS-532138860
...
26
PLATE.BACK.22.RD.VE.STD HUS-532156374
...
27
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
28
SCREW HUS-532054583
...
29
DISCHARGE BAFFLE HUS-532133190
...
30
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
31
WIRE TIE HUS-532007192
...
32
HANDLE.LOWER.BLACK HUS-532157081
...
33
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
34
HAIRPIN COTTER HUS-532051793
...
36
TRIM PLATE HUS-532157070
...
37
FASTENER HUS-532701477
...
38
WHEEL.14X2.PR.SP.RAD.GY HUS-532752063
...
39
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
40
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
41
AXLE ARM HUS-532751333
...
42
SELECTOR SPRING HUS-532125066
...
43
SELECTOR KNOB HUS-532701037
...
44
RIVET BLIND HUS-532128415
...
45
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
46
BRACKET WHL ADJ HUS-532140058
...
47
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
50
HANDLE BRACKET ASSEMBLY-RIGHT HUS-532153029
...
51
HANDLE BRACKET ASSEMBLY - LEFT HUS-532153030
...
52
Nuts HUS-596322601
...
55
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 HUS-532146653
...
57
FRONT BAFFLE KIT HUS-532170031
...
59
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
60
Washers HUS-596238701
...
61
WASHER,HARDEN HUS-532851074
...
62
BLADE 22" HUS-532141114
...
63
BLADE ADAPTOR HUS-532144229
...
64
KIT, HOUSING (Includes Key No. 17) HUS-532170021
...
68
HINGE SCREW HUS-532088652
...
69
PLUG.MULCH.22RD HUS-532166649
...
70
KIT.SHIELD.DEBRIS.21.RWGD.EZ HUS-532048283
...
75
BOLT HUS-874760612
...
77
WASHER.FLAT.1/2 HUS-532088348
...
78
QUICK TRIM DOOR HUS-532162358
...
79
KIT.O-RING/WASHER HUS-532428450
...
82
WASHER HUS-819131016
...
83
WASHER HUS-532148353
...
84
SCREW.PAN.HEAD.#10 HUS-532141841
...
85
BRACKET HUS-532700172
...
86
BRACKET.SUPPORT.RT.BLACK HUS-532151947
...
87
SPACER HUS-532073713
...
88
SCREW HUS-532149588
...
xx
Engine Manual Honda (English) HUS-532145836
...
xx
Engine Manual Honda (French) HUS-532148015
...
xx
Owner's Manual HUS-532162367
...
xx
Decal (Combi-cut Door) HUS-532163134

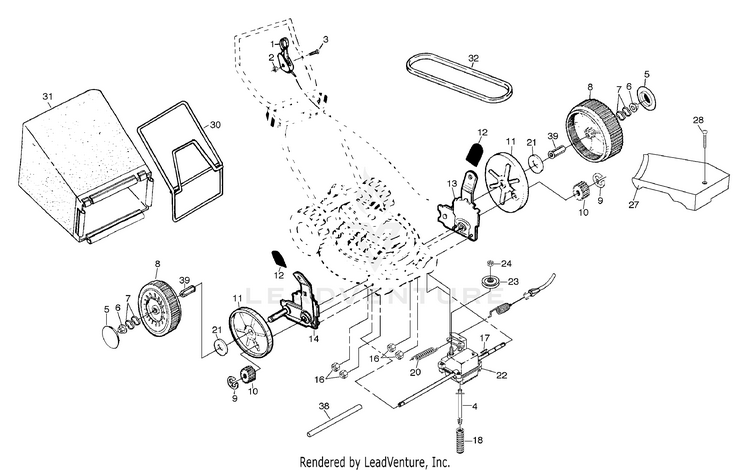

Rotary Lawn Mower Part 2

...
...
1
CONTROL.DR.FWGD.62.00.BLACK HUS-532184600
...
2
NUT.HEX.FLANGE.1/4 HUS-532191730
...
3
SCREW.PAN.HEAD HUS-532158755
...
4
SPRING RETAINER HUS-532150495
...
5
HUBCAP.8".GREY HUS-532157008
...
6
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
7
KIT.O-RING/WASHER HUS-532428450
...
8
KIT.WHEEL.8X2.RADIAL.BLACK HUS-532193144
...
9
E-RING 7/16 RE HUS-812000058
...
10
PINION GEAR HUS-532137054
...
11
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
12
SELECTOR KNOB HUS-532701037
...
13
WHEEL ADJUSTER ASSY (LEFT) HUS-532151009
...
14
WHEEL ADJUSTER KIT RH HUS-532151010
...
16
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
18
SPRING.EXTENSION HUS-532137090
...
20
SPRING HUS-532075192
...
21
WASHER FLUT HUS-532067725
...
22
TRANSMISSION 22RD HUS-532187211
...
23
DRIVEN PULLEY HUS-532194126
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
27
DRIVE COVER HUS-532162366
...
28
Pan Head Tapping Screw #10-24 x 2-3/4 HUS-532143603
...
30
CATCHER.FRAME.WALK HUS-532088614
...
31
HUS-532134048
...
32
KIT.SERVICE.BELT/SPRING. HUS-532157769
...
38
DRV SHAFT TUBE PM HUS-532086012
...
39
BUSHING PM HUS-532088446
...
xx
Drive Cover Decal HUS-532163140
...
xx
DECAL HEIGHT ADJUST RH NLA HUS-532750320
...
xx
DECAL HEIGHT ADJUST LH HUS-532750319
