Husqvarna 560 BFS (2011-10) BLOWERS

Model: 560 BFS (2011-10)

Back To Assemblies

Save Part Not Listed?
product name

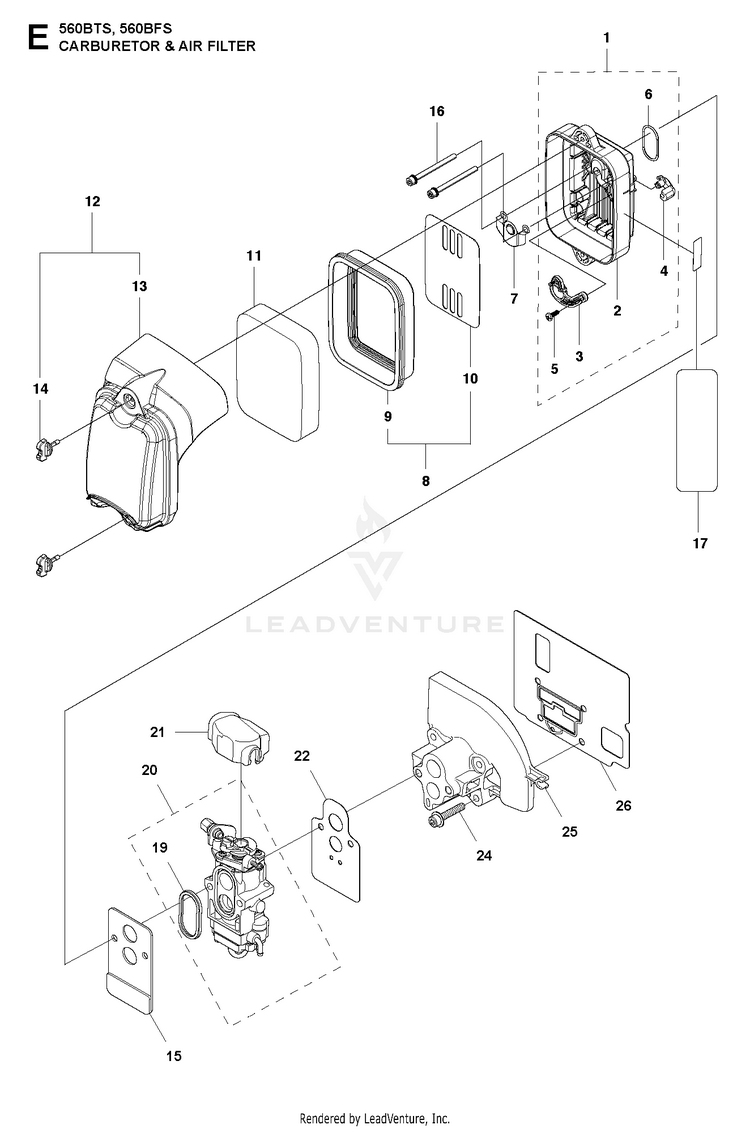

CARBURETOR & AIR FILTER

...
...
1
AIR FILTER HOLDER ASSY HUS-502844902
...
10
RP_SCREEN HUS-521741401
...
9
PACKING HUS-512260301
...
24
BOLT HUS-576589801
...
20
CARBURETOR HUS-581155801
...
14
KNOB HUS-502844301
...
7
PLATE HUS-502844701
...
19
RING HUS-521631501
...
21
COVER HUS-506744201
...
13
AIR FILTER COVER HUS-577181401
...
5
SCREW HUS-506673801
...
3
PLATE HUS-512259601
...
2
AIR FILTER HOLDER ASSY HUS-502844902
...
26
GASKET HUS-577694801
...
6
O-RING HUS-512260001
...
11
AIR FILTER HUS-502844401
...
8
GASKET HUS-502844501
...
15
PLATE HUS-578274001
...
4
LEVER HUS-521740501
...
12
AIR FILTER COVER HUS-577181401
...
17
LABEL,CHOKE HUS-521740201
...
22
GASKET HUS-577089601
...
25
INSULATOR HUS-578108401
...
16
SCREW HUS-502844601
