Husqvarna 56 SRQ - H56SRQC (1992-01) Walk Behind Mower

Model: 56 SRQ - H56SRQC (1992-01)

Save Part Not Listed?
product name

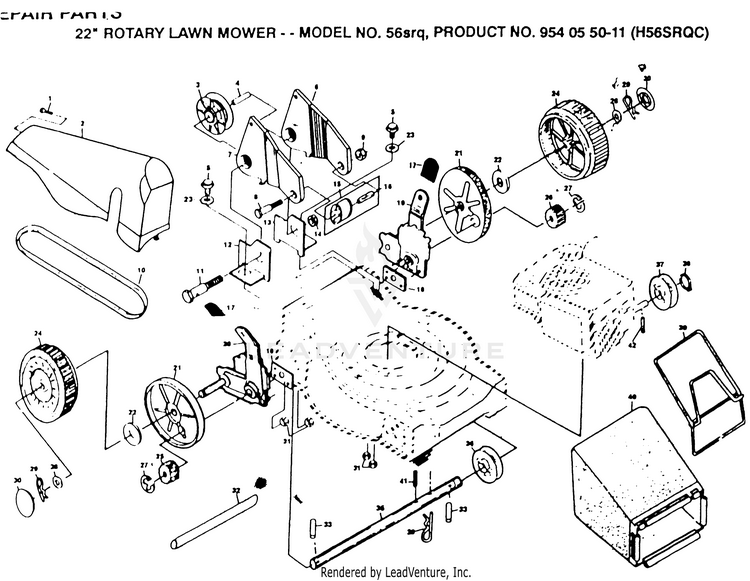

REPAIR PARTS

...
...
42
DRIVE PAWL HUS-532164795
...
32
DR SHAFT CVR NLA HUS-532850373
...
10
DR BELT HUS-532850028
...
22
WASHER FLUT HUS-532067725
...
27
E-RING HUS-812000003
...
24
KIT.WHL.9X2.RAD.BLK(SERV ONLY) HUS-532193139
...
17
KNOB HUS-532087877
...
39
CATCHER.FRAME.WALK HUS-532088614
...
9
LOCKNUT HUS-532050962
...
21
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
14
Hardware HUS-596040501
...
36
DRIVE PULLEY PM HUS-532088082
...
1
SCREW HUS-817021008
...
11
Bolts HUS-596582201
...
37
DR PULLEY HUS-532850027
...
38
RETAINING RING ST HUS-812000030
...
5
HEX SCREW HUS-532086779
...
30
HUB CAP HUS-532850845
...
4
PULLEY SPACER HUS-532850037
...
28
Washers HUS-596040101
...
8
Bolt, Fin Hex 1/4 - 20 x 1 1/2 HUS-874760424
...
25
DRIVE PINION RH HUS-532165096
...
26
PINION.DRIVE.LH HUS-532165097
...
29
RETAINER CLIP PM HUS-532085179
...
31
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
41
DRIVE PAWL HUS-532164795
...
16
IDLER SPACER HUS-532088576
...
33
DRIVE PAWL HUS-532164795
...
40
HUS-532134048
...
2
DRIVE COVER HUS-532850833

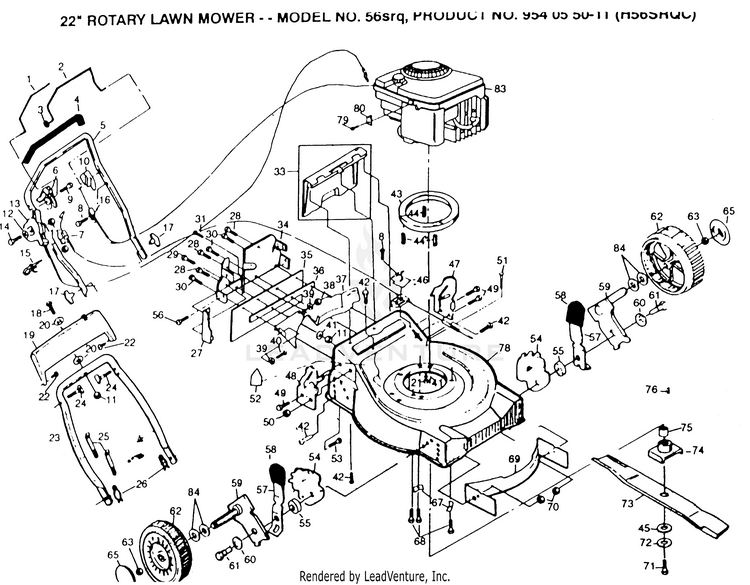

REPAIR PARTS 2

...
...
56
SCREW #6 HUS-532751584
...
22
SCREW HUS-532036953
...
23
HANDLE.LOWER.BLACK HUS-532157081
...
37
BAFFLE NLA HUS-532850061
...
54
BRACKET.ADJ.WHEEL.5POS.ADS HUS-532410807
...
57
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
28
RIVET BLIND HUS-532128415
...
80
WASHER.ENGINE.BZP HUS-532125078
...
73
BLADE 22" PM HUS-532103524
...
4
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
18
Bolt, Hex 1/4-20 x 1-1/2 HUS-874760424
...
- -
DECAL,TRIMPLATE HUS-532850788
...
48
BRACKET HANDLE RH HUS-532125187
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
35
SKIRT REAR HUS-532130444
...
20
WASHER HUS-819091214
...
24
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
49
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
75
SPACER PM HUS-532103113
...
5
UPPER HANDLE HUS-532166268
...
59
AXLE ARM ASM PM HUS-532750610
...
62
WHEEL.8X1.75.CF5SPK.RAD.BLACK HUS-532435276
...
30
SCREW HUS-532054583
...
45
WASHER,HARDEN HUS-532851074
...
6
DR CONT ACTUATOR HUS-532850042
...
47
BRACKET HANDLE LH HUS-532125186
...
26
HAIRPIN COTTER HUS-532051793
...
72
Washers HUS-596238701
...
42
SCREW HUS-532054583
...
21
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
51
Carriage Bolt 1/4-20 x 1/2 HUS-872070404
...
15
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
67
WASHER.ENGINE.BZP HUS-532125078
...
43
ENGINE SPACER HUS-532850988
...
29
HEX SCREW HUS-532086779
...
38
NUT HUS-532074189
...
12
WASHER PM HUS-532085723
...
79
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
- -
ENG DECAL NLA HUS-532800569
...
14
SCREW.1/4-20.CROSS.RECESS. HUS-874250434
...
61
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
17
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
63
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
41
WASHER PM HUS-532085723
...
10
ZONE CONT ACTUATO HUS-532850041
...
60
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
70
Nuts HUS-596322601
...
8
SCREW, HEX PM HUS-532085768
...
84
KIT.O-RING/WASHER HUS-532428450
...
39
WASHER PM HUS-532085723
...
3
WASHER - 26X6.5X1.6 HUS-734115441
...
11
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
44
ENGINE SPACER HUS-532850988
...
53
Carriage Bolt 5/16-18 x 5/8 HUS-872070505
...
58
KNOB HUS-532087877
...
25
WIRE TIE HUS-532007192
...
31
SCREW HUS-817021008
...
7
DRIVE CABLE ASSEMBLY HUS-532136428
...
50
Hardware HUS-596040501
...
33
REAR DOOR KIT HUS-532801097
...
74
BLADE ADAPTER NLA HUS-532125375
...
68
SCREW HUS-532850999
...
55
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
19
TRIM PLATE HUS-532800547
...
9
SELF-TAPPING SCREW HUS-532851552
...
46
CVR BRKT HUS-532750346
