Husqvarna 56 SFEB (954050901) (1999-12) Walk Mower

Model: 56 SFEB (954050901) (1999-12)

Save Part Not Listed?
product name

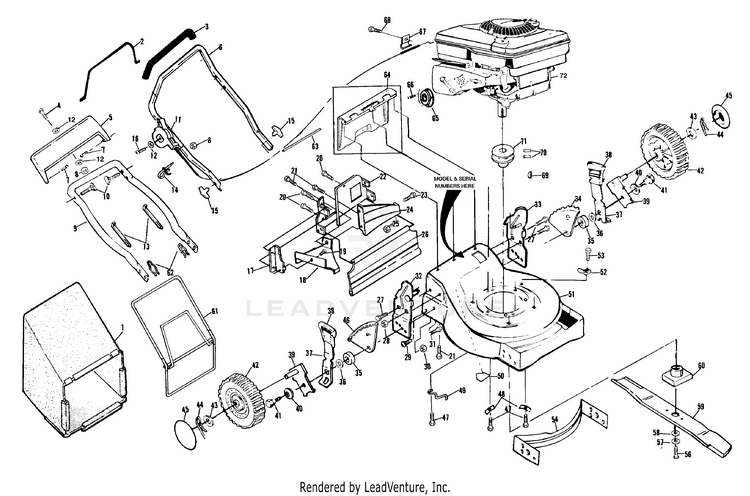

22" Rotary Lawn Mower (Part 1)

...
...
1
HUS-532134048
...
2
CONTROL BAR HUS-532800746
...
3
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
4
Bolt, Hex 1/4-20 x 1-1/2 HUS-874760424
...
5
TRIM PLATE HUS-532800547
...
6
UPPER HANDLE HUS-532167122
...
7
SCREW HUS-532036953
...
8
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
9
HANDLE.LOWER.BLACK HUS-532157081
...
10
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
11
THROTTLE CONTROL HUS-532851461
...
12
WASHER PM HUS-532085723
...
13
WIRE TIE HUS-532007192
...
14
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
15
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
16
SCREW HUS-532128889
...
17
Side Baffle HUS-532125076
...
18
Discharge Baffle HUS-532125075
...
19
SCREW PM HUS-532086344
...
20
SCREW HUS-532081283
...
21
SCREW HUS-532054583
...
22
Back Plate HUS-532125219
...
23
SCREW.PNHD.10-24 HUS-871191008
...
24
Rear Baffle HUS-532125073
...
25
LOCKNUT HUS-532069180
...
26
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
27
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
28
Hardware HUS-596040501
...
29
HINGE SCREW HUS-532088652
...
30
NUT HUS-873610600
...
31
Bolts HUS-596136401
...
32
Handle Bracket Assembly (Right) HUS-532125038
...
33
Handle Bracket Assembly (Left) HUS-532125040
...
34
BRACKET WHL ADJ HUS-532140058
...
35
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
36
WASHER.FLAT.1/2 HUS-532088348
...
37
SELECTOR SPRING HUS-532125066
...
38
SELECTOR KNOB HUS-532701037
...
39
SHAFT HUS-532125079
...
40
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
41
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
42
WHEEL.9X2.BLACK.NO-DRIVE.RAD.2 HUS-532150341
...
43
Washers HUS-596040101
...
44
RETAINER CLIP PM HUS-532085179
...
45
HUB CAP HUS-532850845
...
46
WHL ADJ BRKT LF/RR HUS-532800368
...
47
BOLT 3/8-16X1-1/8 HUS-532150406
...
48
WASHER.ENGINE.BZP HUS-532125078
...
49
BELT SNUBBER HUS-532851000
...
50
DECAL.CUTFINGER.CE.02 HUS-581579101
...
51
HOUSING NLA (Includes Key No. 50) HUS-532801014
...
52
GUIDE CLIP PM HUS-532087930
...
53
SCREW HUS-817021008
...
54
Front Baffle HUS-532125081
...
56
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
57
Washers HUS-596238701
...
58
WASHER,HARDEN HUS-532851074
...
59
BLADE.22.MULCH.STANDARD HUS-532406713
...
60
BLADE ADAPTOR HUS-532851514
...
61
CATCHER.FRAME.WALK HUS-532088614
...
62
HAIRPIN COTTER HUS-532051793
...
63
HINGE ROD HUS-532750328
...
64
Rear Door HUS-532125080
...
65
DEFLECTOR These parts must be purchased through an authorized Briggs & Stratton dealer. HUS-532103251
...
66
SCREW These parts must be purchased through an authorized Briggs & Stratton dealer. HUS-532069485
...
67
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs & Stratton dealer. HUS-532125078
...
68
SCREW HUS-532107488
...
69
HI PRO KEY PM WSL HUS-532087677
...
70
SCREW HUS-532059708
...
71
ENGINE.PULLEY.FWG HUS-532084596
...
xx
Operator's Manual (English) HUS-532801679
...
xx
Operator's Manual (French) HUS-532128435
...
xx
ENG DECAL NLA HUS-532800569
...
xx
HSG STRIPE DECAL NLA HUS-532850795
...
xx
DECAL,TRIMPLATE HUS-532850788

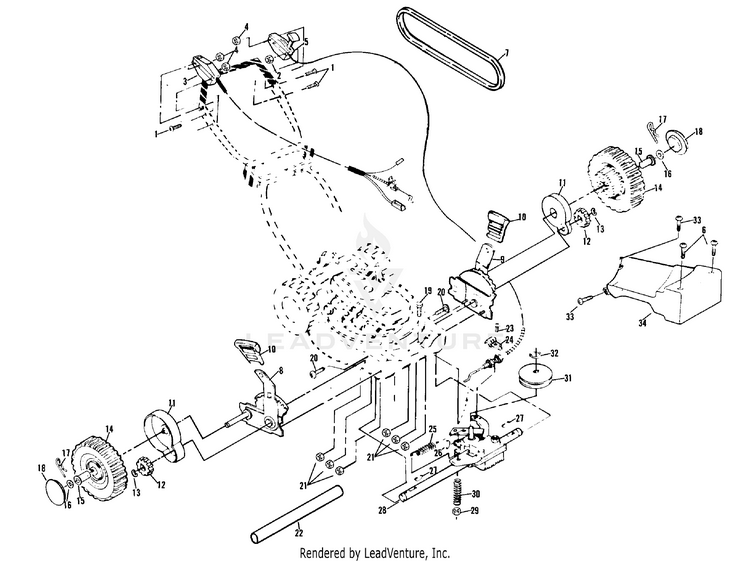

22" Rotary Lawn Mower (Part 2)

...
...
1
SCREW.1/4-20.CROSS.RECESS. HUS-874250434
...
2
NUT HUS-532053490
...
3
CABLE HUS-532801633
...
4
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
5
CONTROL.DRIVE.DLX.58.BOWDEN. HUS-532133053
...
6
Self-tapping Screw #10-24 x 2-3/4 HUS-532087666
...
7
V BELT HUS-532083691
...
8
WHL ADJ RH HUS-532800366
...
9
WHL ADI LH HUS-532800363
...
10
SELECTOR KNOB HUS-532701037
...
11
DUST COVER HUS-532076401
...
12
PINION.10.TEETH HUS-532074507
...
13
E-RING HUS-812000003
...
14
WHEEL.8X2. HUS-532702236
...
15
BUSHING.1.860 X .505. HUS-532086960
...
16
Washers HUS-596040101
...
17
RETAINER CLIP PM HUS-532085179
...
18
HUBCAP HUS-532850844
...
19
BOLT PM HUS-532054338
...
20
SCREW HUS-874100412
...
21
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
22
DRV SHAFT TUBE PM HUS-532086012
...
23
SCREW WASHER HD HUS-532750108
...
24
CABLE CLAMP HUS-532083700
...
25
SPRING HUS-532075192
...
26
WOODRUFF KEY HUS-532057076
...
27
WOODRUFF KEY HUS-532065692
...
28
GEAR CASE ASSEMBLY HUS-532048281
...
29
HUS-873850400
...
30
SPRING.EXTENSION HUS-532137090
...
31
PULLEY KIT HUS-532154753
...
32
RETAINER RING HUS-532074976
...
33
SCREW HUS-817021008
...
34
DRIVE COVER HUS-532850825
...
xx
DR CVR DECAL HUS-532800575

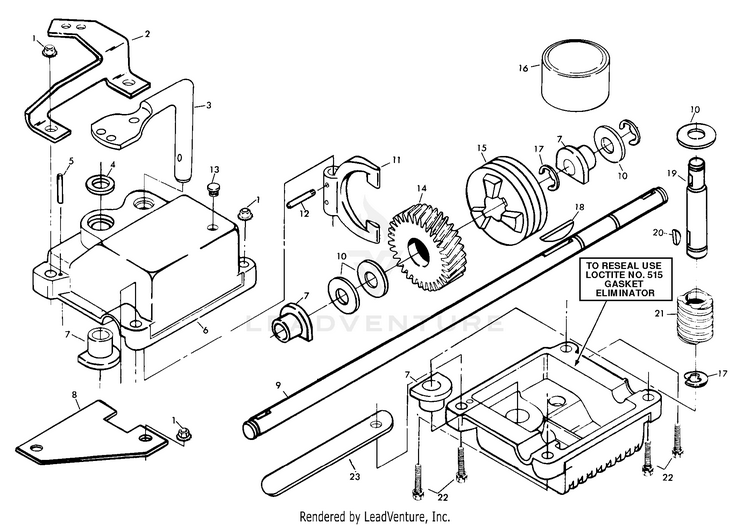

Gear Case Assembly (Part 1)

...
...
1
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
2
ADJUSTER BRACKET HUS-532085177
...
3
SHIFTER PM HUS-532088386
...
4
SEAL HUS-532057072
...
5
DRIVE LOK PIN HUS-532057388
...
6
CASE HALF KIT PM (Includes Upper and Lower Halves and Key Nos. 4,5, and 7) HUS-532048032
...
7
BEARING HUS-532077881
...
8
SPRING BRACKET HUS-532081585
...
9
DRIVE SHAFT HUS-532750430
...
10
THRUST WASHER HUS-532057079
...
11
YOKE CLUTCH HUS-532075144
...
12
GROOVE PIN PM HUS-532087822
...
13
PLUG.AUGER.GEAR.BOX.SNOW HUS-532086447
...
14
GEAR HELICAL HUS-532133804
...
15
CLUTCH JAW HUS-532750436
...
16
GREASE, 14 OZ. CARTRIDGE HUS-585517301
...
17
E-RING HUS-812000003
...
18
HI PRO KEY HUS-532850848
...
19
WORM SHAFT HUS-532083720
...
20
WOODRUFF KEY HUS-532065692
...
21
PULLEY KIT HUS-532154753
...
22
BOLT HUS-532002276
...
23
Identification Tag HUS-532751046
...
xx
GEAR CASE ASSEMBLY HUS-532048281

Gear Case Assembly (Part 2)

...
...
1
BATTERY BRKT HUS-532800410
...
2
BATTERY COVER HUS-532800411
...
3
BATTERY KIT W/ADAPTOR (Includes Key Nos. 5 & 7) HUS-532048374
...
4
SCREW HUS-817021008
...
5
CONNECTOR PM HUS-532086353
...
6
KIT.CHARGER.BATTERY. HUS-532111549
...
7
BATTERY PAD PM HUS-532086649
