product name

Husqvarna 56 SFE - 954140036A (1996-10) Walk Behind Mower

Model: 56 SFE - 954140036A (1996-10)

Save Part Not Listed?
product name

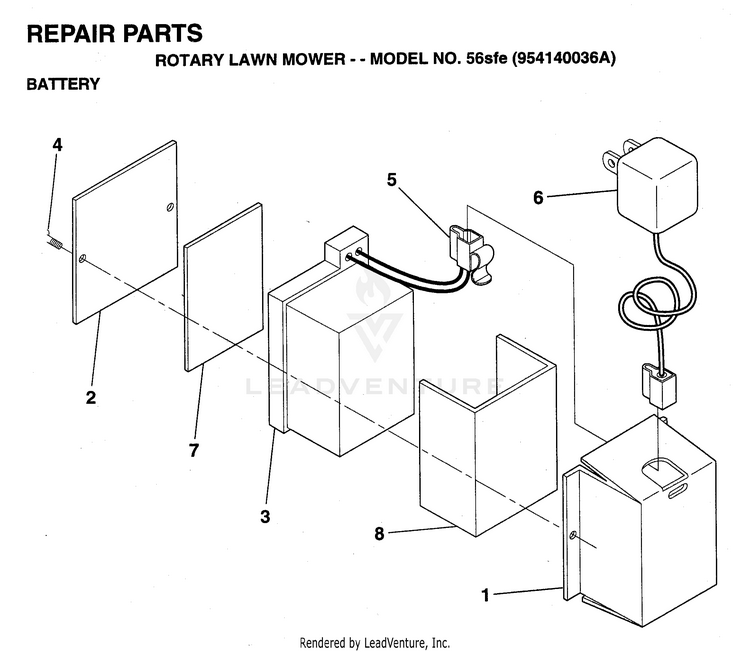

BATTERY

...
...
8
BATTERY WRAP HUS-532134861
...
6
KIT.CHARGER.BATTERY. HUS-532111549
...
1
BATTERY BRACKET HUS-532125286
...
3
BATTERY KIT W/ADAPTOR HUS-532048374
...
4
SCREW HUS-817021008
...
2
BATTERY COVER HUS-532125287
...
7
BATTERY PAD PM HUS-532086649
...
5
CONNECTOR PM HUS-532086353

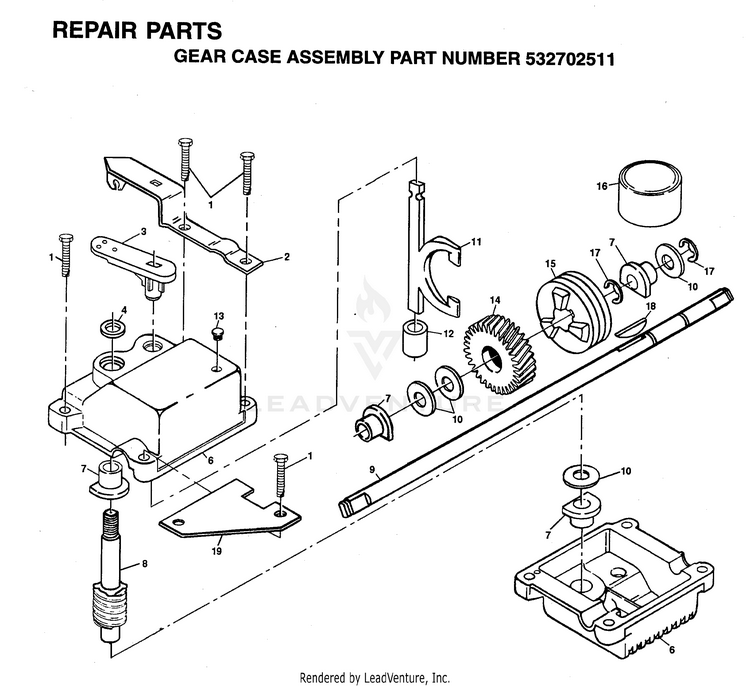

GEAR CASE

...
...
13
PLUG.AUGER.GEAR.BOX.SNOW HUS-532086447
...
10
THRUST WASHER HUS-532057079
...
9
DRIVE SHAFT, 20-5/8" HUS-532137074
...
17
E-RING HUS-812000003
...
14
GEAR.HELICAL HUS-532137050
...
7
BEARING HUS-532077881
...
12
BUSHING HUS-532700343
...
11
YOKE.VIBRATORY FINISH. HUS-532131484
...
18
HI PRO KEY HUS-532850848
...
15
CLUTCH JAW HUS-532750436
...
2
ENGAGEMENT BRACKET HUS-532137055
...
6
GEAR CASE HUS-532048373
...
1
HUS-817640416
...
19
BRACKET SPRING HUS-532125441
...
3
SHIFTER HUS-532137053
...
8
SHAFT GEAR WORM HUS-532183863
...
16
GREASE, 14 OZ. CARTRIDGE HUS-585517301
...
4
SEAL HUS-532057072

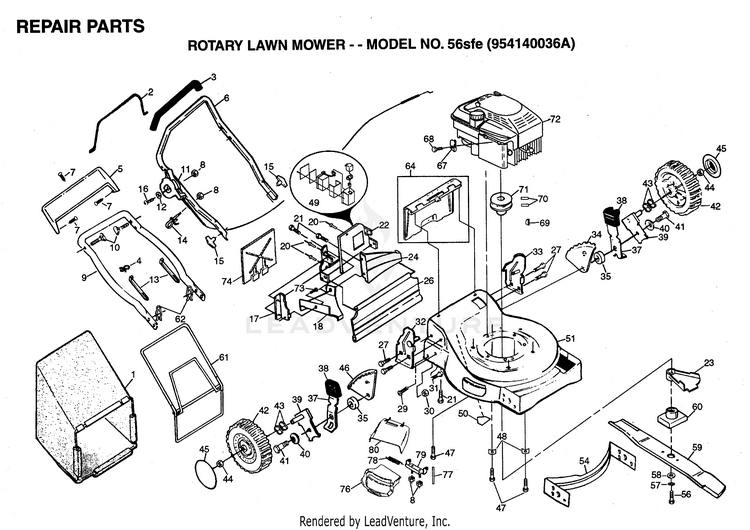

REPAIR PARTS

...
...
56
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
15
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
33
HANDLE BRACKET ASSEMBLY - LEFT HUS-532153030
...
37
SELECTOR SPRING HUS-532125066
...
68
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
8
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
50
DECAL.CUTFINGER.CE.02 HUS-581579101
...
16
SCREW HUS-532701650
...
35
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
1
HUS-532134048
...
57
Washers HUS-596238701
...
71
ENGINE.PULLEY.FWG HUS-532084596
...
21
SCREW HUS-532054583
...
48
WASHER.ENGINE.BZP HUS-532125078
...
58
WASHER,HARDEN HUS-532851074
...
40
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
74
PLUG.MULCH.22RD HUS-532166649
...
27
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
73
SCREW.HXTAP.10-24 HUS-532150050
...
42
WHEEL.8X2.PR.LP.RAD.GREY HUS-532750550
...
7
FASTENER HUS-532701477
...
59
BLADE 22" HUS-532141114
...
54
KIT.BAFFLE.FRT.22RD.FO.PU/FWGD HUS-532170557
...
78
SPRING HINGE HUS-532152186
...
41
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
45
HUBCAP.8".GREY HUS-532157008
...
10
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
44
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
61
CATCHER.FRAME.WALK HUS-532088614
...
6
UPPER HANDLE HUS-532167122
...
39
AXLE ARM HUS-532145937
...
32
HANDLE BRACKET ASSEMBLY-RIGHT HUS-532153029
...
34
WHEEL ADJ BRKT RF-LR HUS-532142842
...
69
HI PRO KEY PM WSL HUS-532087677
...
9
HANDLE.LOWER.BLACK HUS-532157081
...
60
BLADE ADAPTOR HUS-532851514
...
26
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
64
REAR DOOR ASSEMBLY HUS-532147612
...
70
SCREW HUS-532059708
...
14
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
62
HAIRPIN COTTER HUS-532051793
...
18
DISCHARGE BAFFLE HUS-532133190
...
22
BACK PLATE HUS-532142194
...
79
BRACKET.HINGE ASM.W/FIN HUS-532147775
...
12
WASHER PM HUS-532085723
...
38
SELECTOR KNOB HUS-532701037
...
29
HINGE SCREW HUS-532088652
...
43
KIT.O-RING/WASHER HUS-532428450
...
24
REAR BAFFLE HUS-532133040
...
5
TRIM PLATE HUS-532157070
...
11
THROTTLE CONTROL HUS-532700417
...
77
ROD.HINGE.COMBI-C HUS-532147286
...
4
WIRE TIE HUS-532007192
...
46
WHEEL ADJ BRKT RR-LF HUS-532142843
...
30
Nuts HUS-596322601
...
20
RIVET BLIND HUS-532128415
...
23
KIT.SHIELD.DEBRIS.21.RWGD.EZ HUS-532048283
...
17
SIDE BAFFLE HUS-532138860
...
3
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
2
CONTROL BAR HUS-532131085
...
47
BOLT 3/8-16X1-1/8 HUS-532150406
...
13
WIRE TIE HUS-532007192

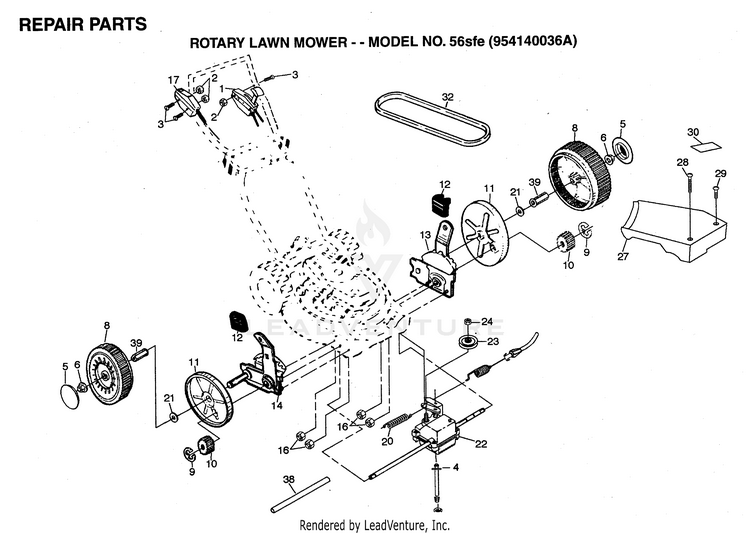

REPAIR PARTS 2

...
...
12
SELECTOR KNOB HUS-532701037
...
2
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
23
DRIVEN PULLEY HUS-532194126
...
32
KIT.SERVICE.BELT/SPRING. HUS-532157769
...
39
BUSHING PM HUS-532088446
...
16
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
---
DECAL HEIGHT ADJUST LH HUS-532750319
...
38
DRV SHAFT TUBE PM HUS-532086012
...
6
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
5
HUBCAP.8".GREY HUS-532157008
...
20
SPRING HUS-532075192
...
29
SCREW.SLOT.TORX. HUS-532149746
...
10
PINION GEAR HUS-532137054
...
22
TRANSMISSION 22RD HUS-532187211
...
17
ENGINE ZONE CONTROL CABLE HUS-532148306
...
27
DRIVE COVER-GRAY HUS-532700479
...
---
DECAL HEIGHT ADJUST RH NLA HUS-532750320
...
3
SCREW.PAN.HEAD HUS-532158755
...
9
E-RING 7/16 RE HUS-812000058
...
1
THROTTLE CONTROL HUS-532142098
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
21
WASHER FLUT HUS-532067725
...
4
SPRING RETAINER HUS-532150495
...
28
SCREW HUS-532146072
...
11
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
18
SPRING.EXTENSION HUS-532137090
