Husqvarna 56 SFE (954065401)C (1995-04) Walk Mower

Model: 56 SFE (954065401)C (1995-04)

Save Part Not Listed?
product name

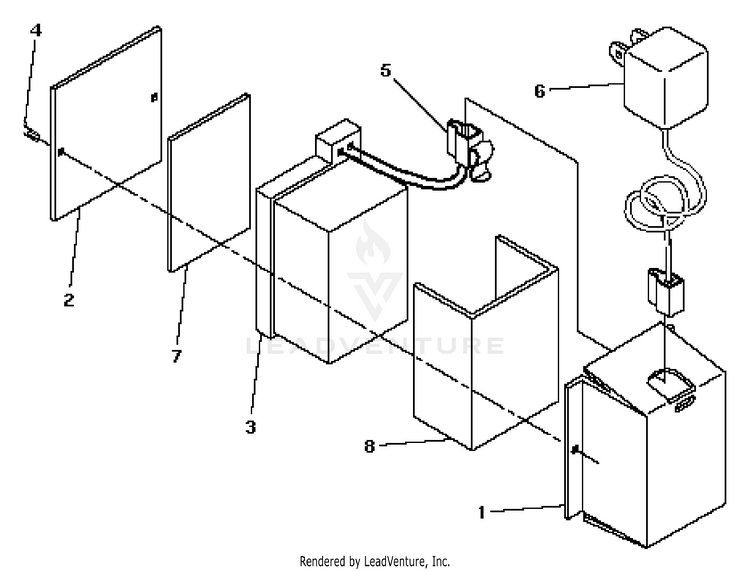

Battery

...
...
1
BATTERY BRACKET HUS-532086334
...
2
BATTERY COVER HUS-532125287
...
3
BATTERY KIT W/ADAPTOR (Includes Key Nos. 5 & 7) HUS-532048374
...
4
SCREW HUS-817021008
...
5
CONNECTOR PM HUS-532086353
...
6
KIT.CHARGER.BATTERY. HUS-532111549
...
7
BATTERY PAD PM HUS-532086649
...
8
BATTERY WRAP HUS-532134861

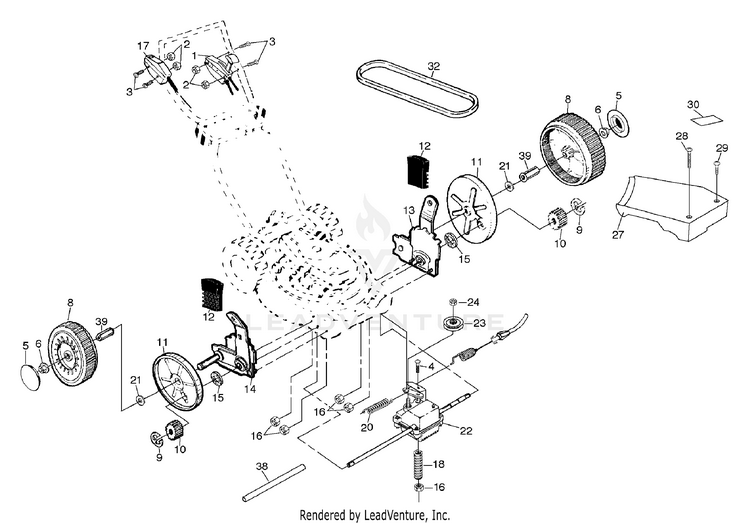

Drive Assembly

...
...
1
THROTTLE CONTROL HUS-532142098
...
2
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
3
SCREW.PAN.HEAD HUS-532158755
...
4
BOLT HUS-532700875
...
5
HUB CAP HUS-532850845
...
6
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
8
KIT.WHEEL.8X2.RADIAL.BLACK HUS-532193144
...
9
E-RING 7/16 RE HUS-812000058
...
10
PINION GEAR HUS-532137054
...
11
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
12
SELECTOR KNOB HUS-532701037
...
13
WHEEL ADJUSTER ASSY (LEFT) HUS-532151009
...
14
WHEEL ADJUSTER KIT RH HUS-532151010
...
15
WASHER HUS-532088118
...
16
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
17
ENGINE ZONE CONTROL CABLE HUS-532148306
...
18
SPRING.EXTENSION HUS-532137090
...
20
SPRING HUS-532075192
...
21
WASHER FLUT HUS-532067725
...
22
TRANSMISSION 22RD HUS-532187211
...
23
DRIVEN PULLEY HUS-532194126
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
27
DRIVE COVER-GRAY HUS-532700479
...
28
SCREW PM HUS-532087866
...
29
SCREW.SLOT.TORX. HUS-532149746
...
30
DECAL DRIVE COVER HUS-532142072
...
32
KIT.SERVICE.BELT/SPRING. HUS-532157769
...
38
DRV SHAFT TUBE PM HUS-532086012
...
39
BUSHING.1.860 X .505. HUS-532086960
...
xx
DECAL HEIGHT ADJUST RH NLA HUS-532750320
...
xx
DECAL HEIGHT ADJUST LH HUS-532750319

Gear Case Assembly P/N 532702510 - 53702511

...
...
1
HUS-817640416
...
2
ENGAGEMENT BRACKET HUS-532137055
...
3
SHIFTER HUS-532137053
...
4
SEAL HUS-532057072
...
6
GEAR CASE (Includes Key Nos. 4, and 7) HUS-532048373
...
7
BEARING HUS-532077881
...
8
SHAFT GEAR WORM HUS-532183863
...
9
DRIVE SHAFT, 20-5/8" (P/N 532702511) HUS-532137074
...
9
DRIVE SHAFT, 21-1/16" (P/N 532702510) HUS-532137077
...
10
THRUST WASHER HUS-532057079
...
11
YOKE.VIBRATORY FINISH. HUS-532131484
...
12
BUSHING HUS-532700343
...
13
PLUG.AUGER.GEAR.BOX.SNOW HUS-532086447
...
14
GEAR.HELICAL HUS-532137050
...
15
CLUTCH JAW HUS-532750436
...
16
GREASE, 14 OZ. CARTRIDGE HUS-585517301
...
17
E-RING HUS-812000003
...
18
HI PRO KEY HUS-532850848
...
19
BRACKET SPRING HUS-532125441
...
xx
KIT GEAR CASE .22SD HUS-532702510
...
xx
Gear Case Assembly HUS-537025110

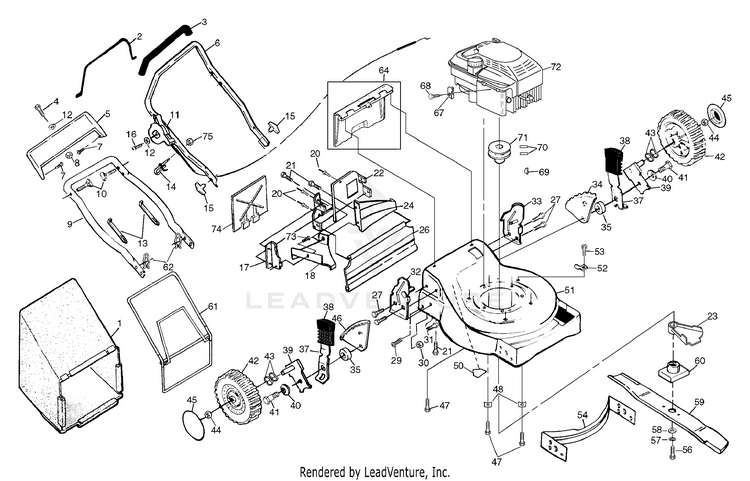

General Assembly

...
...
1
HUS-532134048
...
2
CONTROL BAR HUS-532131085
...
3
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
4
Bolt, Hex 1/4-20 x 1-1/2 HUS-874760424
...
5
TRIM PLATE HUS-532800547
...
6
UPPER HANDLE HUS-532167122
...
7
SCREW HUS-532036953
...
8
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
9
HANDLE.LOWER.BLACK HUS-532157081
...
10
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
11
THROTTLE CONTROL HUS-532700417
...
12
WASHER PM HUS-532085723
...
13
WIRE TIE HUS-532007192
...
14
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
15
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
16
SCREW HUS-532701650
...
17
SIDE BAFFLE HUS-532138860
...
18
DISCHARGE BAFFLE HUS-532133190
...
20
RIVET BLIND HUS-532128415
...
21
SCREW HUS-532054583
...
22
BACK PLATE HUS-532142194
...
23
KIT.SHIELD.DEBRIS.21.RWGD.EZ HUS-532048283
...
24
REAR BAFFLE HUS-532133040
...
26
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
27
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
29
HINGE SCREW HUS-532088652
...
30
Nuts HUS-596322601
...
32
KIT.BRKT.HDLE.R/L HUS-532150956
...
33
KIT.BRKT.HDLE.R/L HUS-532150956
...
34
WHEEL ADJ BRKT RR-LF HUS-532142843
...
35
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
37
SELECTOR SPRING HUS-532125066
...
38
SELECTOR KNOB HUS-532701037
...
39
AXLE ARM ASSY HUS-532800754
...
40
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
41
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
42
WHEEL.8X1.75.CF5SPK.RAD.BLACK HUS-532435276
...
43
KIT.O-RING/WASHER HUS-532428450
...
44
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
45
HUB CAP HUS-532850845
...
46
WHEEL ADJ BRKT RF-LR HUS-532142842
...
47
BOLT 3/8-16X1-1/8 HUS-532150406
...
48
WASHER.ENGINE.BZP HUS-532125078
...
50
DECAL.CUTFINGER.CE.02 HUS-581579101
...
51
HOUSING (INCL KEY #50) (Includes Key No. 50) HUS-532149097
...
52
GUIDE CLIP PM HUS-532087930
...
53
SCREW HUS-817021008
...
54
KIT.BAFFLE.FRT.22RD.FO.PU/FWGD HUS-532170557
...
56
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
57
Washers HUS-596238701
...
58
WASHER,HARDEN HUS-532851074
...
59
BLADE 22" HUS-532141114
...
60
BLADE ADAPTOR HUS-532851514
...
61
CATCHER.FRAME.WALK HUS-532088614
...
62
HAIRPIN COTTER HUS-532051793
...
64
REAR DOOR ASSEMBLY HUS-532147612
...
67
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs & Stratton dealer. HUS-532125078
...
68
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
69
HI PRO KEY PM WSL HUS-532087677
...
70
SCREW HUS-532059708
...
71
ENGINE.PULLEY.FWG HUS-532084596
...
73
SCREW PM HUS-532086344
...
74
PLUG.MULCH.22RD HUS-532166649
...
75
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
xx
Owner's Manual (English/French) HUS-532149940
...
xx
DECAL,TRIMPLATE HUS-532850788
