Husqvarna 56 HST - 954140040A (1997-01) Walk Behind Mower

Model: 56 HST - 954140040A (1997-01)

Save Part Not Listed?
product name

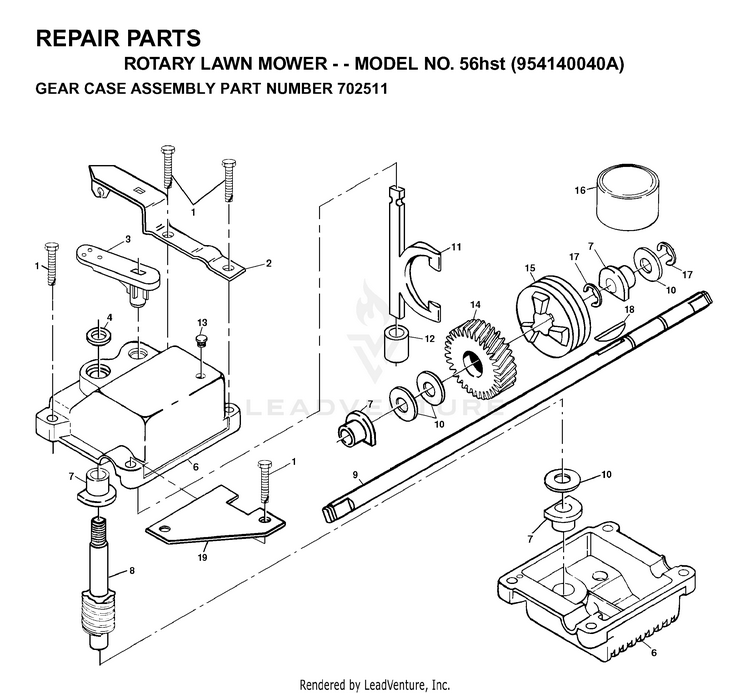

GEAR CASE

...
...
10
THRUST WASHER HUS-532057079
...
17
E-RING HUS-812000003
...
11
YOKE.VIBRATORY FINISH. HUS-532131484
...
16
GREASE, 14 OZ. CARTRIDGE HUS-585517301
...
6
GEAR CASE HUS-532048373
...
4
SEAL HUS-532057072
...
13
PLUG.AUGER.GEAR.BOX.SNOW HUS-532086447
...
9
DRIVE SHAFT, 20-5/8" HUS-532137074
...
14
GEAR.HELICAL HUS-532137050
...
19
BRACKET SPRING HUS-532125441
...
18
HI PRO KEY HUS-532850848
...
5
GROOVED PIN HUS-532702710
...
7
BEARING HUS-532077881
...
12
BUSHING HUS-532700343
...
1
HUS-817640416
...
2
ENGAGEMENT BRACKET HUS-532137055
...
15
CLUTCH JAW HUS-532750436
...
3
SHIFTER HUS-532137053
...
8
SHAFT GEAR WORM HUS-532183863

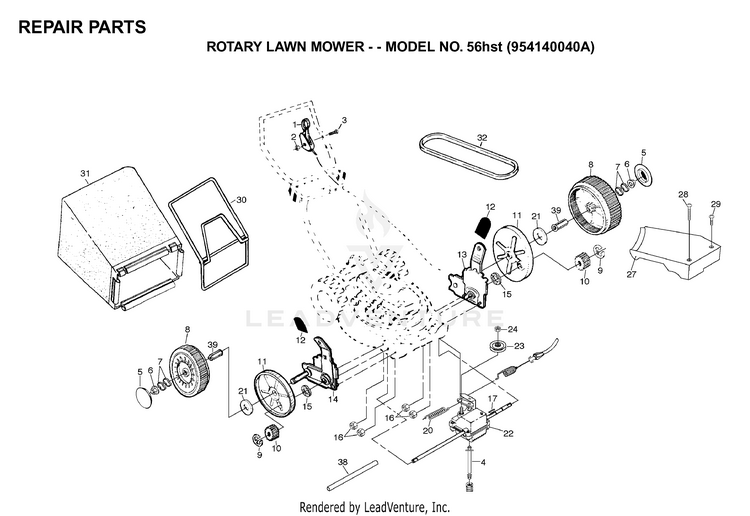

REPAIR PARTS

...
...
- -
DECAL HEIGHT ADJUST RH NLA HUS-532750320
...
1
DRIVE CONTROL 59.8 FWGD HUS-532184588
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
20
SPRING HUS-532075192
...
10
PINION GEAR HUS-532137054
...
2
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
5
HUBCAP.8".GREY HUS-532157008
...
- -
DECAL HEIGHT ADJUST LH HUS-532750319
...
11
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
13
WHEEL ADJUSTER ASSY (LEFT) HUS-532151009
...
14
WHEEL ADJUSTER KIT RH HUS-532151010
...
3
SCREW.PAN.HEAD HUS-532158755
...
12
SELECTOR KNOB HUS-532701037
...
31
HUS-532134048
...
38
DRV SHAFT TUBE PM HUS-532086012
...
29
SCREW.SLOT.TORX. HUS-532149746
...
22
TRANSMISSION 22RD HUS-532187211
...
6
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
23
DRIVEN PULLEY HUS-532194126
...
21
WASHER FLUT HUS-532067725
...
7
KIT.O-RING/WASHER HUS-532428450
...
9
E-RING 7/16 RE HUS-812000058
...
16
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
32
KIT.SERVICE.BELT/SPRING. HUS-532157769
...
39
BUSHING PM HUS-532088446
...
27
DRIVE COVER-GRAY HUS-532700479
...
28
SCREW HUS-532146072
...
30
CATCHER.FRAME.WALK HUS-532088614
...
8
KIT.WHEEL.8X2.RADIAL.BLACK HUS-532193144
...
18
SPRING.EXTENSION HUS-532137090
...
4
SPRING RETAINER HUS-532150495
...
17
HI PRO KEY PM WSL HUS-532087677

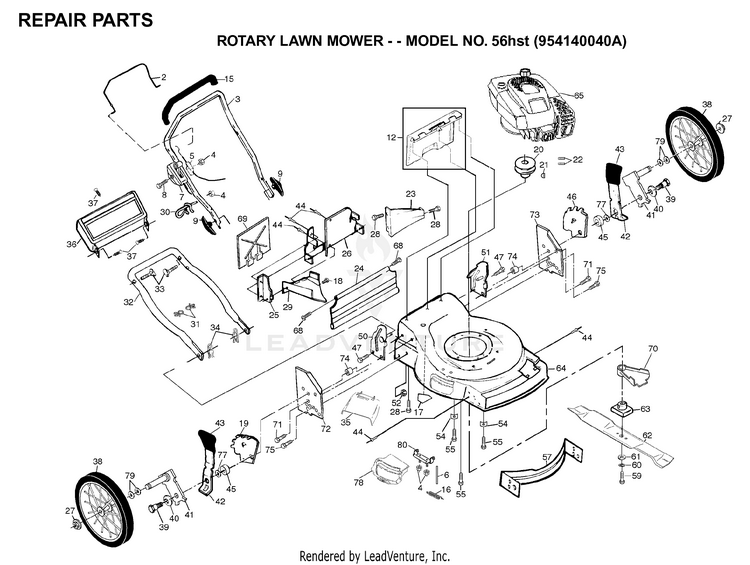

REPAIR PARTS 2

...
...
47
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
15
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
46
BRACKET WHL ADJ HUS-532140058
...
48
FASTENER HUS-532701477
...
22
SCREW HUS-532059708
...
6
ROD.HINGE.COMBI-C HUS-532147286
...
23
REAR BAFFLE HUS-532133040
...
28
SCREW HUS-532054583
...
57
KIT.BAFFLE.FRT.22RD.FO.PU/FWGD HUS-532170557
...
63
BLADE ADAPTOR HUS-532851514
...
79
KIT.O-RING/WASHER HUS-532428450
...
39
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
59
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
18
SCREW.HXTAP.10-24 HUS-532150050
...
21
HI PRO KEY PM WSL HUS-532087677
...
43
SELECTOR KNOB HUS-532701037
...
42
SELECTOR SPRING HUS-532125066
...
33
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
31
WIRE TIE HUS-532007192
...
60
Washers HUS-596238701
...
9
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
4
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
38
WHEEL.14X2.PR.SP.RAD.GY HUS-532752063
...
45
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
7
THROTTLE CONTROL HUS-532700644
...
29
DISCHARGE BAFFLE HUS-532133190
...
54
WASHER.ENGINE.BZP HUS-532125078
...
19
WHL ADJ BRKT LF/RR HUS-532800368
...
44
RIVET BLIND HUS-532128415
...
68
HINGE SCREW HUS-532088652
...
20
ADAPTER.BLADE/PULLEY.25M HUS-532421176
...
80
BRACKET.HINGE ASM.W/FIN HUS-532147775
...
24
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
2
BAIL.CONTROL.WIRE.STD.COMF.BLK HUS-532146900
...
27
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
61
WASHER,HARDEN HUS-532851074
...
52
Nuts HUS-596322601
...
81
WIRE TIE HUS-532007192
...
5
CABLE ASSEMBLY HUS-532851671
...
32
HANDLE.LOWER.BLACK HUS-532157081
...
69
PLUG.MULCH.22RD HUS-532166649
...
16
SPRING HINGE HUS-532152186
...
34
HAIRPIN COTTER HUS-532051793
...
77
WASHER.FLAT.1/2 HUS-532088348
...
55
BOLT 3/8-16X1-1/8 HUS-532150406
...
75
BOLT HUS-874760612
...
70
KIT.SHIELD.DEBRIS.21.RWGD.EZ HUS-532048283
...
37
FASTENER HUS-532701477
...
8
SCREW.PAN.HEAD HUS-532158755
...
36
TRIM PLATE HUS-532157070
...
25
SIDE BAFFLE HUS-532138860
...
17
DECAL.CUTFINGER.CE.02 HUS-581579101
...
3
UPPER HANDLE HUS-532166268
...
62
BLADE 22" HUS-532141114
...
30
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
