product name

Husqvarna 56 DHS (954069101)A (1994-01) Walk Mower

Model: 56 DHS (954069101)A (1994-01)

Save Part Not Listed?

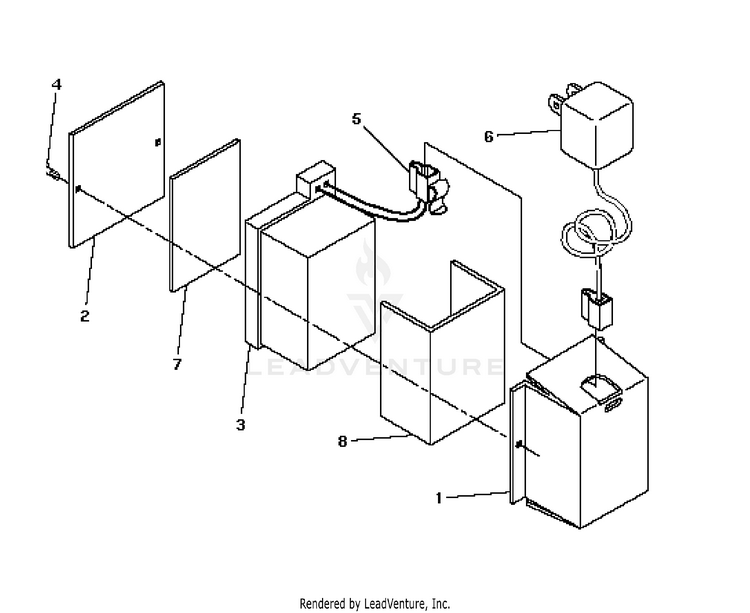

product name

Battery

...
...
1
BATTERY BRACKET HUS-532086334
...
2
BATTERY COVER HUS-532125287
...
3
BATTERY KIT W/ADAPTOR (Includes Key Nos. 5 & 7) HUS-532048374
...
4
SCREW HUS-817021008
...
5
CONNECTOR PM HUS-532086353
...
6
KIT.CHARGER.BATTERY. HUS-532111549
...
7
BATTERY PAD PM HUS-532086649
...
8
BATTERY WRAP HUS-532134861

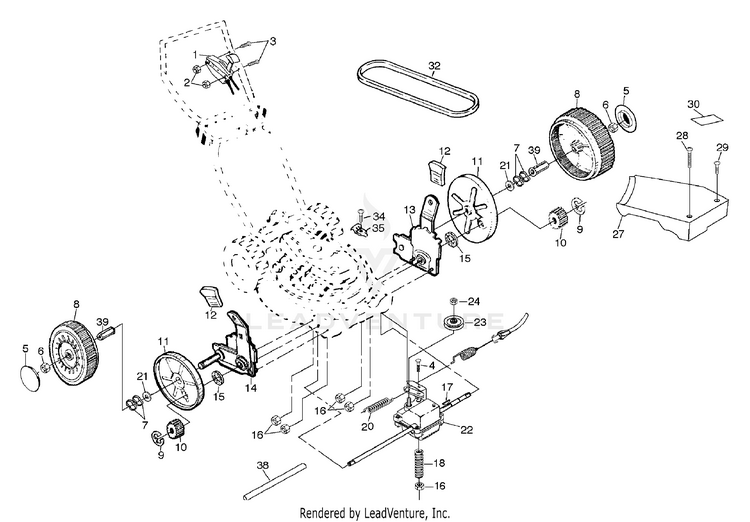

Drive Assembly

...
...
1
CONTROL.DRIVE.FWGD HUS-532137076
...
2
LOCKNUT HUS-532069180
...
3
SCREW HUS-532750029
...
4
BOLT HUS-532700875
...
5
HUB CAP HUS-532850845
...
6
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
7
KIT.O-RING/WASHER HUS-532428450
...
8
KIT.WHEEL.8X2.RADIAL.BLACK HUS-532193144
...
9
E-RING 7/16 RE HUS-812000058
...
10
PINION GEAR HUS-532137054
...
11
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
12
SELECTOR KNOB HUS-532701037
...
13
WHEEL ADJUSTER ASSY (LEFT) HUS-532151009
...
14
WHEEL ADJUSTER KIT RH HUS-532151010
...
15
WASHER HUS-532088118
...
16
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
17
HI PRO KEY HUS-532850848
...
18
SPRING.EXTENSION HUS-532137090
...
20
SPRING HUS-532075192
...
21
WASHER FLUT HUS-532067725
...
22
KIT GEAR CASE .22SD HUS-532702510
...
23
DRIVEN PULLEY HUS-532194126
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
27
DRIVE COVER HUS-532700599
...
28
SCREW PM HUS-532087866
...
29
SCREW.SLOT.TORX. HUS-532149746
...
30
DECAL DRIVE COVER HUS-532142074
...
32
KIT.SERVICE.BELT/SPRING. HUS-532157769
...
34
SCREW HUS-817021008
...
35
GUIDE CLIP PM HUS-532087930
...
38
DRV SHAFT TUBE PM HUS-532086012
...
39
BUSHING.1.860 X .505. HUS-532086960
...
xx
DECAL HEIGHT ADJUST RH NLA HUS-532750320
...
xx
DECAL HEIGHT ADJUST LH HUS-532750319

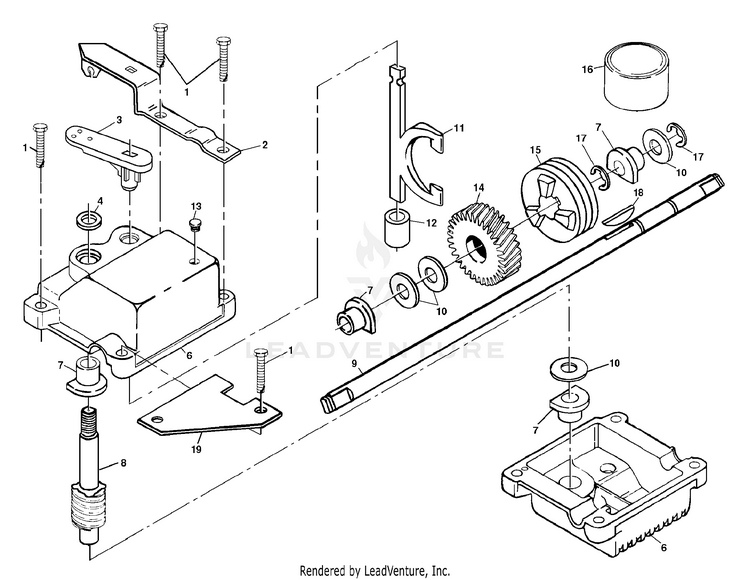

Gear Case Assembly P/N 532702510 - 53702511

...
...
1
HUS-817640416
...
2
ENGAGEMENT BRACKET HUS-532137055
...
3
SHIFTER HUS-532137053
...
4
SEAL HUS-532057072
...
6
GEAR CASE (Includes Key Nos. 4, and 7) HUS-532048373
...
7
BEARING HUS-532077881
...
8
SHAFT GEAR WORM HUS-532183863
...
9
DRIVE SHAFT, 20-5/8" HUS-532137074
...
9
DRIVE SHAFT, 21-1/16" HUS-532137077
...
10
THRUST WASHER HUS-532057079
...
11
YOKE.VIBRATORY FINISH. HUS-532131484
...
12
BUSHING HUS-532700343
...
13
PLUG.AUGER.GEAR.BOX.SNOW HUS-532086447
...
14
GEAR.HELICAL HUS-532137050
...
15
CLUTCH JAW HUS-532750436
...
16
GREASE, 14 OZ. CARTRIDGE HUS-585517301
...
17
E-RING HUS-812000003
...
18
HI PRO KEY HUS-532850848
...
19
BRACKET SPRING HUS-532125441
...
xx
KIT GEAR CASE .22SD HUS-532702510
...
xx
Gear Case Assembly HUS-537025110

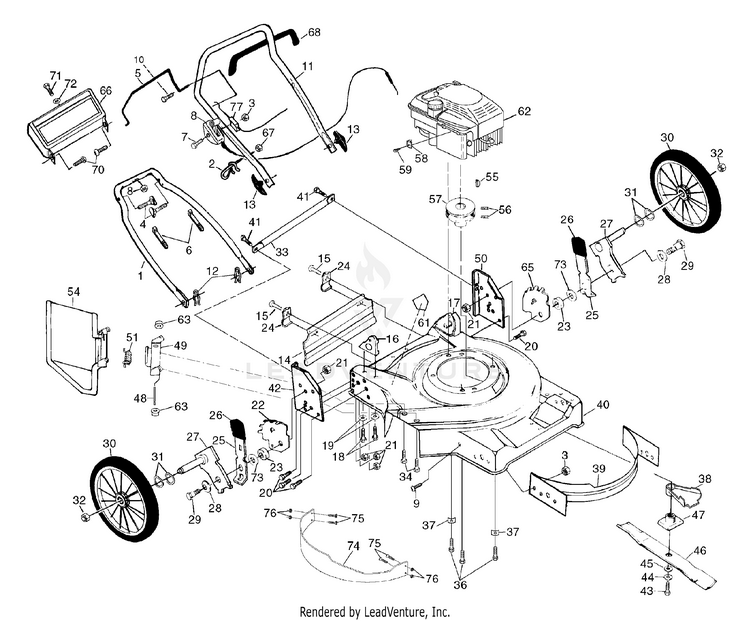

General Assembly

...
...
1
HANDLE.LOWER.BLACK HUS-532157081
...
2
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
3
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
4
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
5
CONTROL BAR HUS-532851512
...
6
WIRE TIE HUS-532007192
...
7
SCREW.PAN.HEAD HUS-532158755
...
8
THROTTLE CONTROL HUS-532700417
...
9
SCREW HUS-874100412
...
10
SELF-TAPPING SCREW HUS-532851552
...
11
UPPER HANDLE HUS-532166268
...
12
HAIRPIN COTTER HUS-532051793
...
13
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
14
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
15
SCREW HUS-817021008
...
16
KIT HANDLE BRACKET LH/RH HUS-532192983
...
17
KIT HANDLE BRACKET LH/RH HUS-532192983
...
18
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
19
STEEL WASHER HUS-532059289
...
20
BOLT HUS-874760612
...
21
Nuts HUS-596322601
...
22
WHL ADJ BRKT LF/RR HUS-532800368
...
23
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
24
BRACKET.SKIRT.BZP HUS-532192301
...
25
SELECTOR SPRING HUS-532125066
...
26
SELECTOR KNOB HUS-532701037
...
27
AXLE ARM HUS-532751333
...
28
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
29
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
30
WHEEL.14X2.PR.SP.RAD.GY HUS-532752063
...
31
KIT.O-RING/WASHER HUS-532428450
...
32
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
33
ROD SUPPORT HUS-532850709
...
34
SCREW 1/4X20 HUS-817600406
...
36
BOLT 3/8-16X1-1/8 HUS-532150406
...
37
WASHER.ENGINE.BZP HUS-532125078
...
38
KIT.SHIELD.DEBRIS.21.RWGD.EZ HUS-532048283
...
39
BAFFLE KIT HUS-532165549
...
40
HOUSING ASMBLY (Includes Key No. 61) HUS-532700708
...
41
SCREW HUS-532054583
...
42
WHEEL SUPPORT BRACKET (LEFT) HUS-532125321
...
43
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
44
Washers HUS-596238701
...
45
WASHER,HARDEN HUS-532851074
...
46
BLADE 22" HUS-532141114
...
47
BLADE ADAPTOR HUS-532851514
...
48
ROD.HINGE.COMBI-C HUS-532147286
...
49
BRACKET.HINGE ASM.W/FIN HUS-532147775
...
50
WHEEL SUPPORT BRACKET (RIGHT) HUS-532125322
...
51
SPRING.SIDE.DISCHARGE HUS-532411832
...
54
DISCHARGE GUARD HUS-532134253
...
55
HI PRO KEY PM WSL HUS-532087677
...
56
SCREW HUS-532059708
...
57
ENGINE.PULLEY.FWG HUS-532084596
...
58
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs & Stratton Dealer. HUS-532125078
...
59
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
61
DECAL.CUTFINGER.CE.02 HUS-581579101
...
63
PUSH-ON SPEED NUT HUS-532083731
...
65
BRACKET WHL ADJ HUS-532140058
...
66
TRIM PLATE HUS-532800546
...
67
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
68
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
70
SCREW HUS-532036953
...
71
Bolt, Hex 1/4-20 x 1-1/2 HUS-874760424
...
72
WASHER PM HUS-532085723
...
73
WASHER.FLAT.1/2 HUS-532088348
...
74
BAFFLE MULCH .2SD HUS-532142231
...
75
Screw HUS-874961008
...
76
LOCKNUT HUS-532069180
...
77
CABLE.MZR.51.RT.SP./PU. HUS-532130861
...
xx
REAR BAFFLE (Not Shown) HUS-532125033
...
xx
DECAL HOUSING HUS-532700621
...
xx
OPER MANUAL 56DHS/SF/SFE(1995) HUS-532145554
...
xx
DECAL,TRIMPLATE HUS-532850788
