product name

Husqvarna 56 DHS - 532702510 (1995-08) Walk Behind Mower

Model: 56 DHS - 532702510 (1995-08)

Save Part Not Listed?
product name

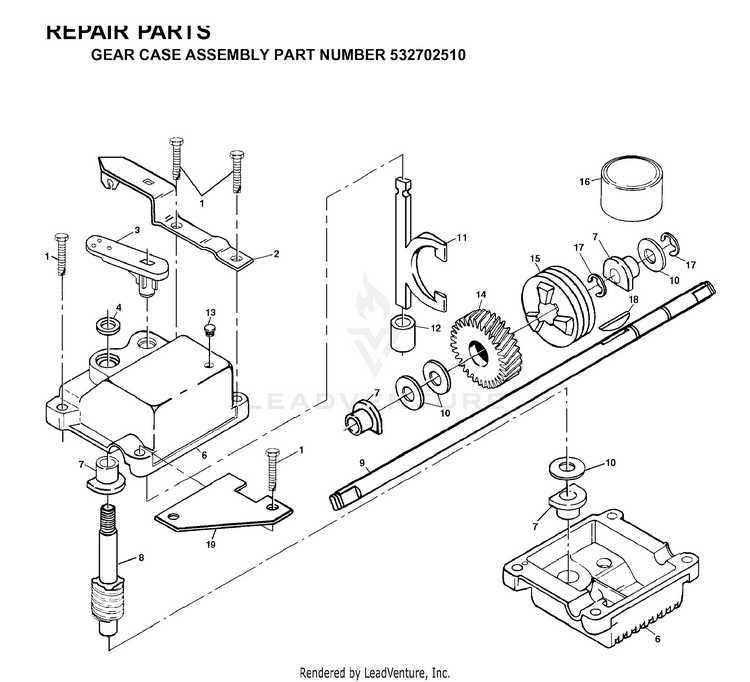

GEAR CASE

...
...
13
PLUG.AUGER.GEAR.BOX.SNOW HUS-532086447
...
4
SEAL HUS-532057072
...
11
YOKE.VIBRATORY FINISH. HUS-532131484
...
19
BRACKET SPRING HUS-532125441
...
6
GEAR CASE HUS-532048373
...
18
HI PRO KEY HUS-532850848
...
3
SHIFTER HUS-532137053
...
10
THRUST WASHER HUS-532057079
...
14
GEAR.HELICAL HUS-532137050
...
12
BUSHING HUS-532700343
...
2
ENGAGEMENT BRACKET HUS-532137055
...
7
BEARING HUS-532077881
...
15
CLUTCH JAW HUS-532750436
...
17
E-RING HUS-812000003
...
1
HUS-817640416
...
9
DRIVE SHAFT, 21-1/16" HUS-532137077
...
16
GREASE, 14 OZ. CARTRIDGE HUS-585517301
...
8
SHAFT GEAR WORM HUS-532183863

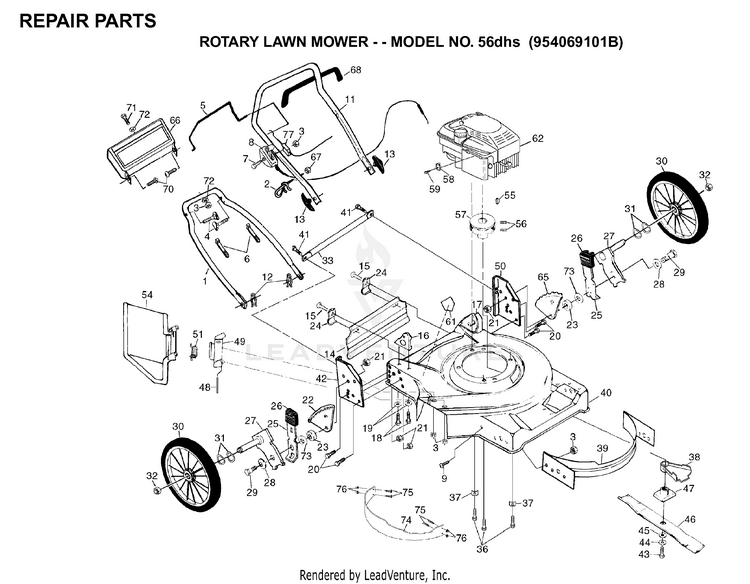

REPAIR PARTS

...
...
4
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
13
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
9
SCREW HUS-874100412
...
56
SCREW HUS-532059708
...
11
UPPER HANDLE HUS-532166268
...
67
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
33
ROD SUPPORT HUS-532850709
...
37
WASHER.ENGINE.BZP HUS-532125078
...
47
BLADE ADAPTOR HUS-532851514
...
18
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
39
BAFFLE KIT HUS-532165549
...
32
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
46
BLADE 22" HUS-532141114
...
22
WHL ADJ BRKT LF/RR HUS-532800368
...
59
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
1
HANDLE.LOWER.BLACK HUS-532157081
...
68
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
48
ROD.HINGE.COMBI-C HUS-532147286
...
31
KIT.O-RING/WASHER HUS-532428450
...
65
BRACKET WHL ADJ HUS-532140058
...
70
SCREW HUS-532036953
...
23
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
2
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
25
SELECTOR SPRING HUS-532125066
...
49
BRACKET.HINGE ASM.W/FIN HUS-532147775
...
61
DECAL.CUTFINGER.CE.02 HUS-581579101
...
43
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
29
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
16
KIT HANDLE BRACKET LH/RH HUS-532192983
...
38
KIT.SHIELD.DEBRIS.21.RWGD.EZ HUS-532048283
...
73
WASHER.FLAT.1/2 HUS-532088348
...
12
HAIRPIN COTTER HUS-532051793
...
7
SCREW.PAN.HEAD HUS-532158755
...
55
HI PRO KEY PM WSL HUS-532087677
...
66
TRIM PLATE HUS-532800547
...
15
SCREW HUS-817021008
...
6
WIRE TIE HUS-532007192
...
24
BRACKET.SKIRT.BZP HUS-532192301
...
77
CABLE.MZR.51.RT.SP./PU. HUS-532130861
...
21
Nuts HUS-596322601
...
72
WASHER PM HUS-532085723
...
19
STEEL WASHER HUS-532059289
...
76
LOCKNUT HUS-532069180
...
20
BOLT HUS-874760612
...
30
WHEEL.14X2.PR.SP.RAD.GY HUS-532752063
...
5
BAIL.CONTROL.WIRE.STD.COMF.BLK HUS-532146900
...
45
WASHER,HARDEN HUS-532851074
...
8
THROTTLE CONTROL HUS-532700417
...
17
KIT HANDLE BRACKET LH/RH HUS-532192983
...
36
BOLT 3/8-16X1-1/8 HUS-532150406
...
26
SELECTOR KNOB HUS-532701037
...
51
SPRING.SIDE.DISCHARGE HUS-532411832
...
57
ENGINE.PULLEY.FWG HUS-532084596
...
- -
NAMEPLATE HUSQVARNA HUS-532150321
...
3
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
44
Washers HUS-596238701
...
71
Bolt, Hex 1/4-20 x 1-1/2 HUS-874760424
...
41
SCREW HUS-532054583

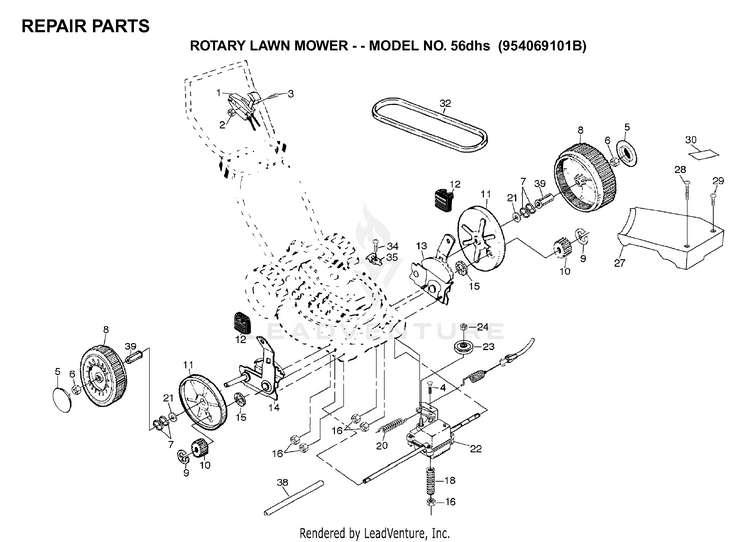

REPAIR PARTS 2

...
...
5
HUB CAP HUS-532850845
...
2
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
- -
DECAL HEIGHT ADJUST RH NLA HUS-532750320
...
11
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
7
KIT.O-RING/WASHER HUS-532428450
...
27
DRIVE COVER HUS-532700599
...
21
WASHER FLUT HUS-532067725
...
1
DRIVE CONTROL 59.8 FWGD HUS-532184588
...
39
BUSHING.1.860 X .505. HUS-532086960
...
6
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
9
E-RING 7/16 RE HUS-812000058
...
20
SPRING HUS-532075192
...
18
SPRING.EXTENSION HUS-532137090
...
29
SCREW.SLOT.TORX. HUS-532149746
...
15
WASHER HUS-532088118
...
8
KIT.WHEEL.8X2.RADIAL.BLACK HUS-532193144
...
10
PINION GEAR HUS-532137054
...
35
GUIDE CLIP PM HUS-532087930
...
34
SCREW HUS-817021008
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
16
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
4
BOLT HUS-532700875
...
23
DRIVEN PULLEY HUS-532194126
...
- -
DECAL HEIGHT ADJUST LH HUS-532750319
...
28
SCREW PM HUS-532087866
...
12
SELECTOR KNOB HUS-532701037
...
32
KIT.SERVICE.BELT/SPRING. HUS-532157769
...
38
DRV SHAFT TUBE PM HUS-532086012
...
3
SCREW.PAN.HEAD HUS-532158755
